Katool KT-198L Auto Body Frame Machine 100 kN Capacity
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout

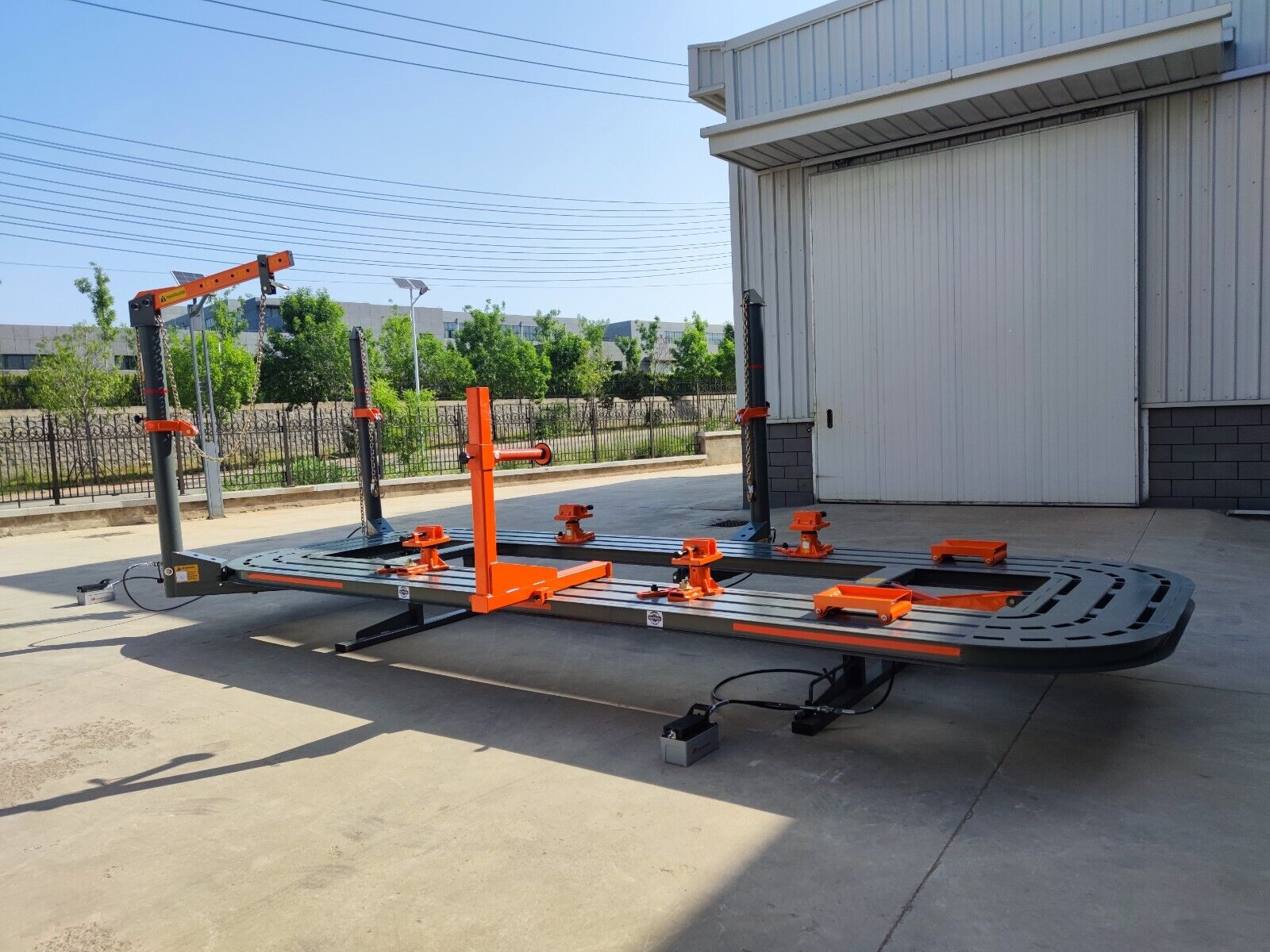

Heavy-duty welded steel construction provides a stable working platform for collision repair and frame straightening. A 360-degree tower movement system and multi-directional leading arm deliver controlled tensile force for precision pull operations. Tilt hydraulic lifting platform with flexible support legs allows height adjustment from 4.3 to 67 inches to accommodate a wide range of vehicles. Quick-fix clamp jaws reduce clamp setup time through a threaded shaft that tightens with a few turns. Light, foldable ramps support safe driving on and off the platform and integrate with tower wheel movement for repositioning. Rated pulling capacity is 100 kN with a maximum load handling of 7,700 lb, suitable for most collision repair tasks. Compressed air supply at 0.8 MPa is required for pneumatic functions and accessories. Unit ships with complimentary repair accessories and supports optional automatic robot welding as configured. Freight-only delivery within the contiguous United States is recommended; buyers are responsible for unloading and should provision a forklift or loading dock. A three-year warranty is included to cover manufacturing defects under normal workshop use.
Features

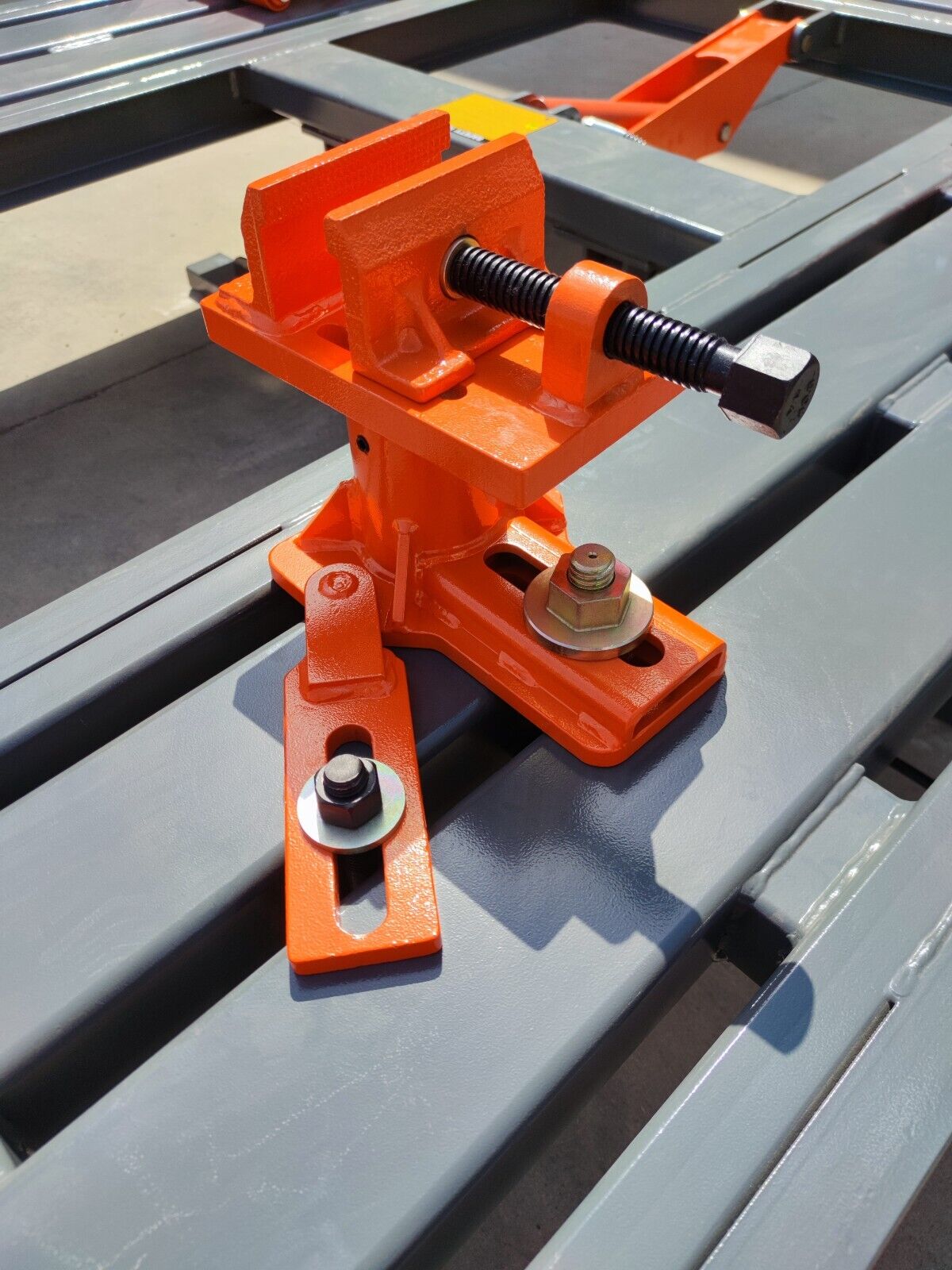

- Quick-fix clamp jaws by screwing the shaft clockwise, making chassis clamping more efficient
- Tilt hydraulic lifting platform assembled with light and flexible support legs

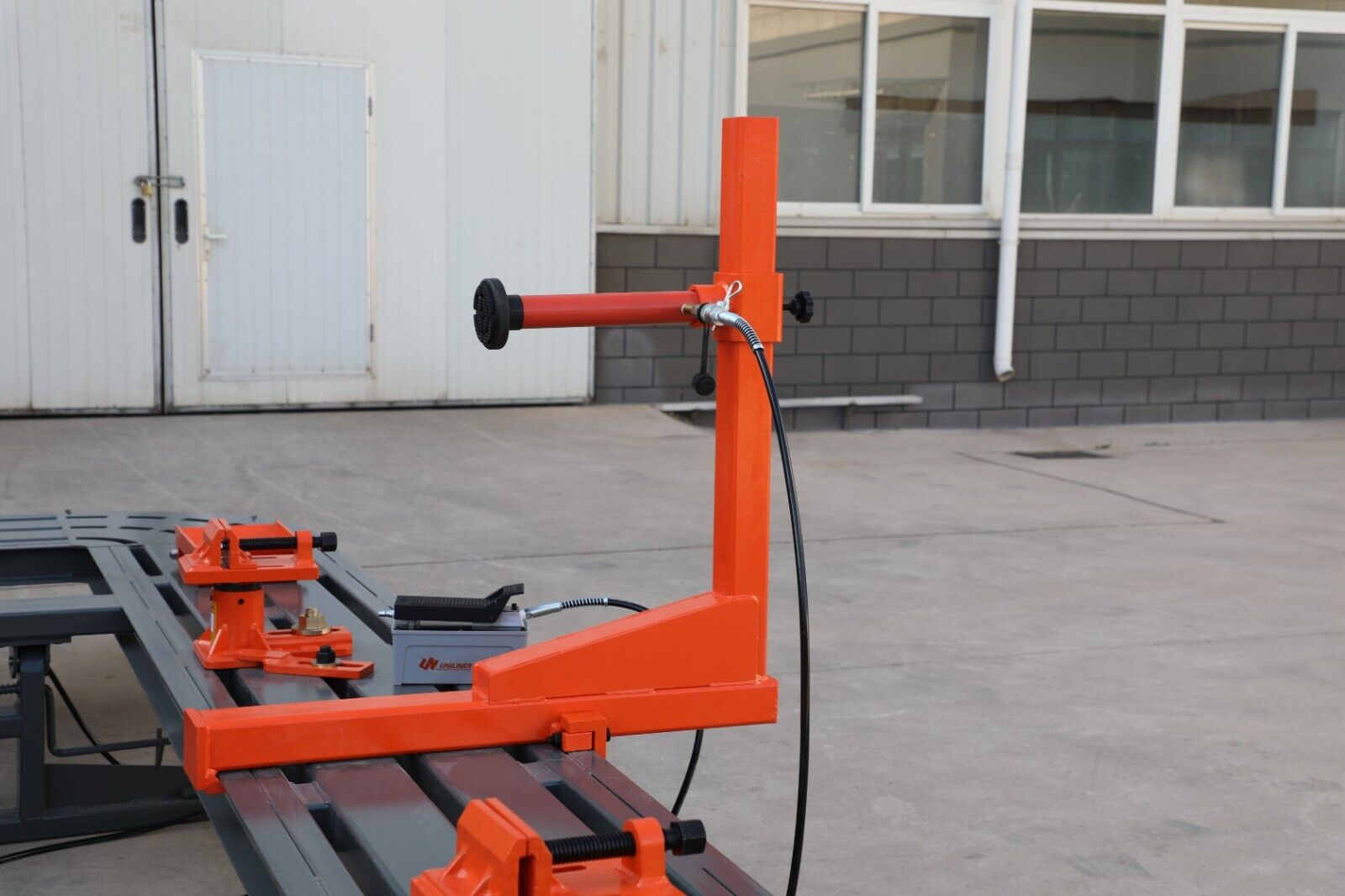

- Unique tower wheels movement device
- The leading arm can supply multi-direction tensile force during the collision repair
- Light and flexible ramps for driving on and off

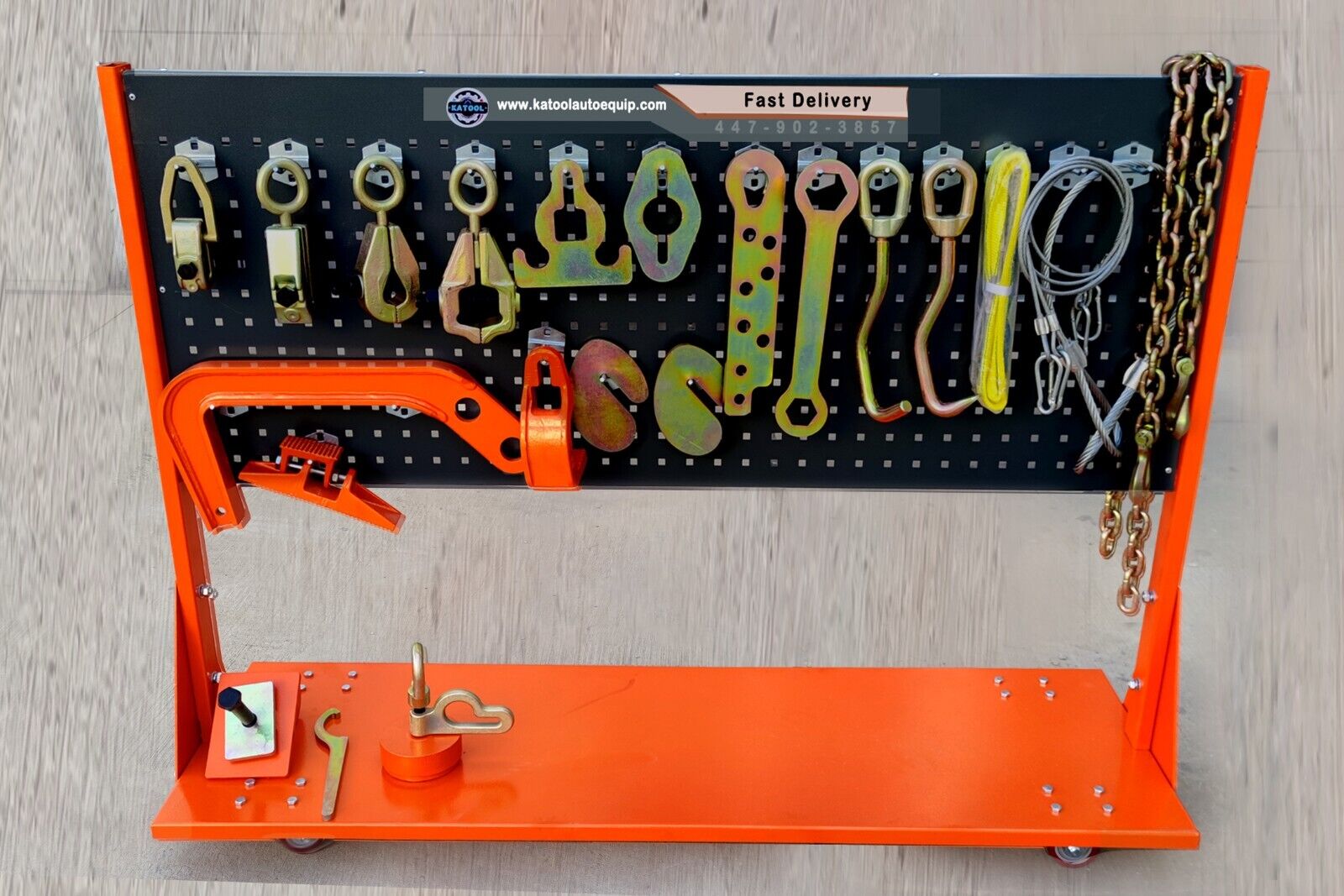

- Complimentary accessories and tools for body collision repair. (as per configuration)
- Automatic robot welding
Specifications
| Materials | Heavy-duty welded steel frame |
| Dimensions (L × W × H) | 236.4 in × 84.3 in × 4.3–67 in |
| Pulling Capacity | 100 kN |
| Maximum Load | 7,700 lb (CE certified) |
| Air Supply Required | 0.8 MPa |
| Pull Radius | 360 degrees |
| Platform Lift | Tilt hydraulic lifting platform with adjustable support legs |
| Inclusions | Complimentary collision repair accessories; optional automatic robot welding (per configuration) |
| Weight | Approx. 1600 kg |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
