AMGO 409-DP Low-Profile Double Parking Lift 9,000 lb Capacity Space-Saving
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout

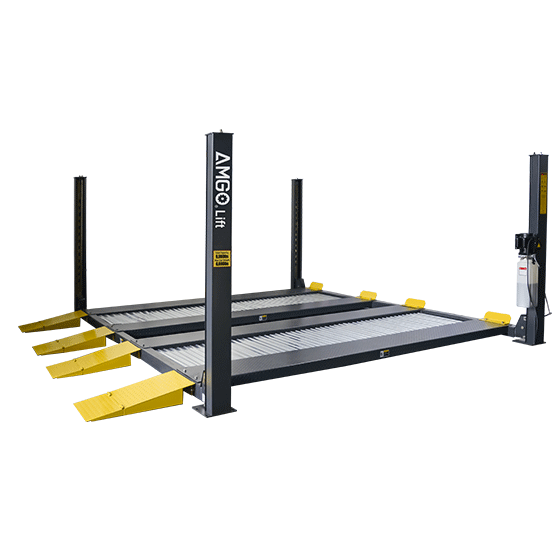

AMGO’s latest 409-DP is a low profile space-saving lift that can accommodate 2 parking positions for 4 vehicles. It’s powerful, can lift up two vehicles up to 9,000lbs (single car max 6,000lbs). It’s safe and easy to operate, equipped with dual safety locks, a patented conceal safety control device and single-point manual release. Additionally, it is multifunctional to satisfy your various needs.
*Please REQUEST A SHIPPING FEE QUOTE before placing your order as this item request shipping!
Features
- Lifting capacity: 9,000lbs, max. car weight: 6,000lbs;
- Low profile design, allows easy load for low clearance vehicles;
- Primary safety lock and cable-slack protection device come standard;
- AMGO’ patented design concealed safety lock control device, with manual single-point lock release;
- Foldable drive-on ramps come standard;
- Exclusive: Double-
Shaped columns for increased strength; - Non-slip diamond platforms;
- Multiple lock points secure the vehicles during lifting and storage;
- 110V power unit is worked with the lift (lifting time: 100s), please specify when ordering.
Specifications
| Model | 409-DP | |
|---|---|---|
| Lifting Capacity | 9,000 Ibs | |
| Lifting Time | 47s | |
| Overall Length (Inc Ramps) | A | 208 1/16" |
| Outside Edge of Crossbeams | B | 167 5/8" |
| Overall Width | C | 190 9/16" |
| Width Between Columns | D | 181" |
| Drive Through Width | E | 169 13/16" |
| Overall Height | F | 82 7/8" |
| Minimum Height | G | 5 15/16" |
| Max. Lifting Height | H | 73 5/8" |
| Max. Lock Height to Top of Runway | 70 7/8" | |
| Max. Height Underneath Runway | I | 68 7/8" |
| Max. Lock Height Underneath Runway | 66 1/8" | |
| Width Between Runways | J | 37" |
| Overall Width of Single Parking Unit | K | 74 7/16" |
| Width Between Two Parking Units | L | 13 3/4" |
| Gross Weight | 2,771 lbs | |
| Motor | 2.0HP |
Detailed Image
Shipping Information
Downloads:
AMGO 409-DP 9,000 lbs Double Parking 4 Post Lift Manual
Warranty:
Every AMGO Car lift is Guaranteed
Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
