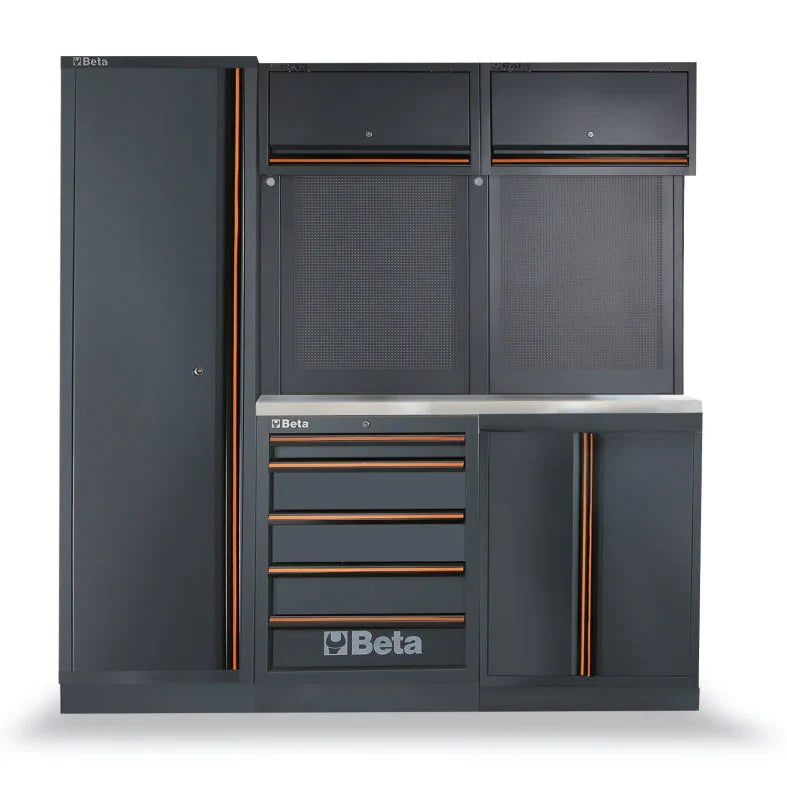

Beta Tools C45PRO Standard Garage Cabinet System with 5-Drawers & Locker (77" - C45PRO BX)

The Beta Tools C45PRO BX is a 77.17" × 19.49" × 78.74" modular garage cabinet system built from 18-gauge sheet steel, combining a fixed 5-drawer module, a two-door base cabinet, a full-height single-door locker, two wall-mounted cabinets, two perforated tool panels, and a continuous stainless steel coated MDF worktop — in a pre-configured system weighing 421 lbs.

This Set Includes:

• 1 × Fixed 5-Drawer Module — ball-bearing slides, foam rubber mats, centralized locking

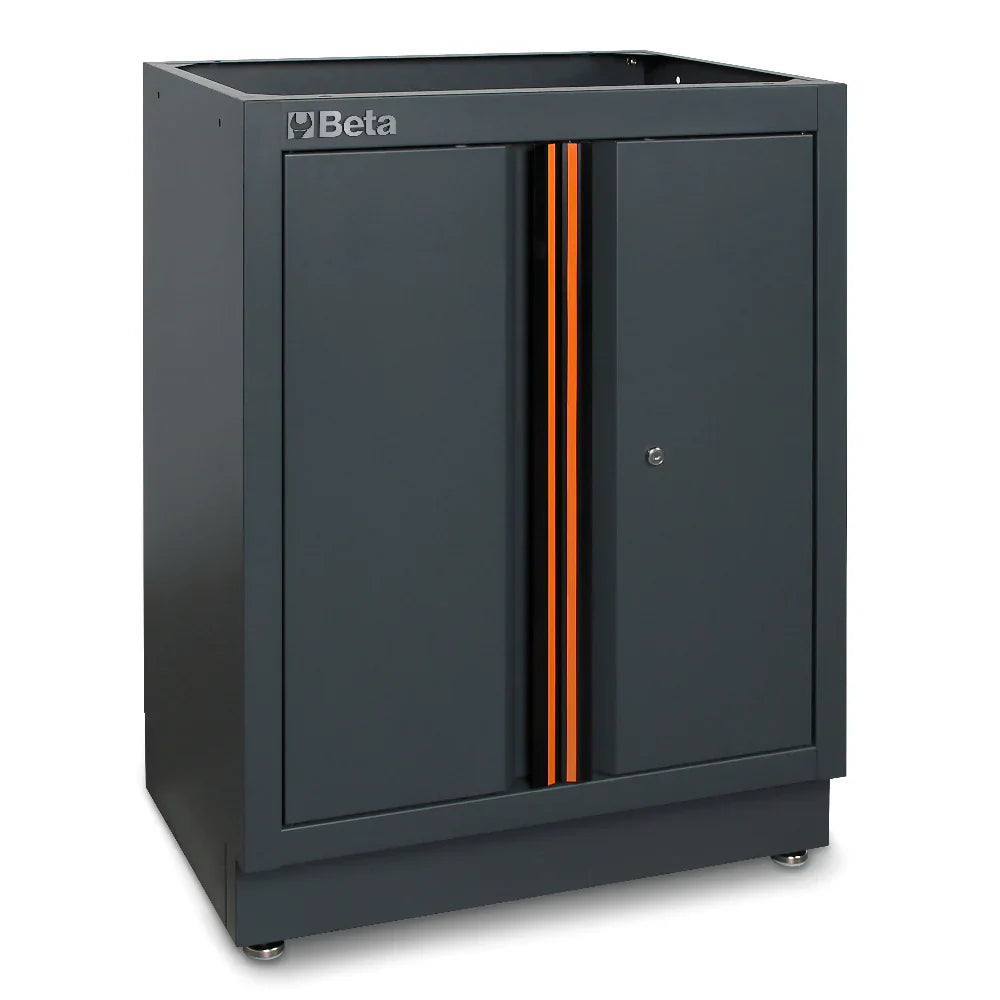

• 1 × Fixed Two-Door Module — enclosed base storage for bulky items, equipment cases, or cleaning supplies

• 1 × Tall Single-Door Tool Cabinet (Locker) — full-height vertical storage with adjustable shelves for long items, coveralls, or large cases

• 2 × Wall-Mounted Cabinets — overhead enclosed storage above the worktop

• 2 × Perforated Tool Panels — wall-mounted pegboard-style panels for hanging tools and accessories

• 3 × Wall Brackets — structural mounting hardware for wall cabinets and panels

• 1 × Continuous Worktop — 77.17" stainless steel coated MDF surface spanning all base modules

Product Features:

• System Dimensions: 77.17" W × 19.49" D × 78.74" H
• Material: 18-gauge sheet steel throughout all modules
• Worktop: Continuous stainless steel coated MDF — oil-resistant, chemical-resistant surface spanning all base modules
• Total System Weight: 421 lbs
• Leveling: Adjustable feet on all base cabinets for leveling on uneven concrete floors
• Locking: Centralized lock system secures all drawers and cabinet doors
• Warranty: 1-year manufacturer warranty
• Origin: China
• SKU: 45001998

• Minimum Bay Width: 77.17" (6' 5.2") for base modules — additional clearance required for wall cabinet installation above

• Floor Depth Requirement: 19.49" base module depth — verify wall-to-obstruction clearance before positioning

• System Height: 78.74" to top of wall cabinets — confirm ceiling clearance for wall cabinet installation

• Wall Load: Wall brackets support 2 overhead cabinets and 2 perforated panels — verify wall stud spacing and substrate before installation; drywall anchors alone are not rated for this load

• Floor Load: 421 lbs system weight — distributed across base module footprint; verify concrete slab or subfloor rating if installing over wood framing

• Leveling Feet: Adjust all base cabinet feet before final positioning — worktop continuity depends on consistent base heights across all modules

• Need more storage? The C45PRO XMA extends to 116" with a 7-drawer module, dockable mobile roller cart, and 3 wall cabinets for full-bay coverage

• Delivery Note: At 421 lbs, this system ships freight — confirm delivery access (driveway width, lift gate requirement) before ordering
