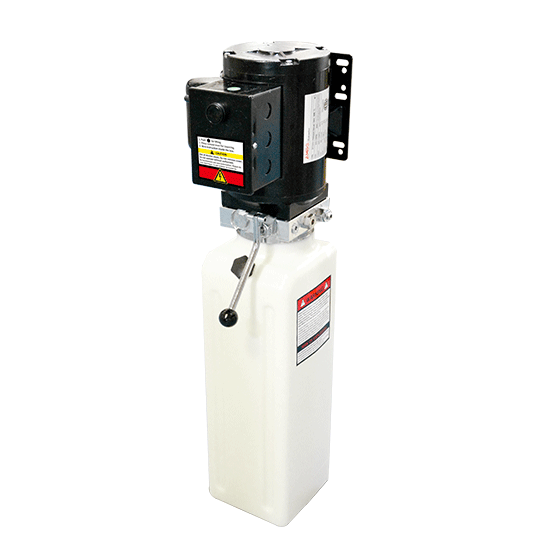

AMGO 071101 Manual Hydraulic Power Unit 220V ETL 11L Oil
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout
Engineered with a modular plug-in design, 071101 embodies our commitment to delivering professional-grade power solutions. It features a manual release mechanism, ensuring maximum compatibility with nearly every lift on the market—particularly two post and four post car lifts.
Compatible AMGO models:
BP-9 | BP-9X | BP-10 | OH-9 | OH-10 | OHX-10 | OHX-10H | PRO-12SX | PRO-12ASX | 409-HP | 409-DP | 409-DPX | 408HLX | 409-HPX.
Features
-
- With ETL Certificate, 220V single-phase 60Hz AC;
- Equipped with 11L high-density polyethylene oil tank;
- Manual Detrol release valve;
- High pressure gear pump with a displacement 2.1cc/r, the highest pressure up to 25MPa;
- Plug-in design high-pressure relief valve, with a relief pressure set at 21MPa;
- Adjustable reflux speed by throttle valve;
- Longevity & easy maintenance
- Oil outlet is provided on both sides
Specifications
| Part No. | 071101 |
|---|---|
| L | 31 7/16’’ |
| L1 | 9 5/16’’ |
| L2 | 22 3/16’’ |
| Voltage | 220v Single Phase |
| Frequency | 60Hz |
| Power | 2.0HP |
| Pressure | 21MPa |
| Displace ment | 2.1cc/r |
| Tank | 11L |
| Oil Outlet | 3/8SAE |
Detailed Image
Shipping Information
Downloads:
Product ManualEngineered with a modular plug-in design, 071101 embodies our commitment to delivering professional-grade power solutions. It features a manual release mechanism, ensuring maximum compatibility with nearly every lift on the market—particularly two post and four post car lifts.
