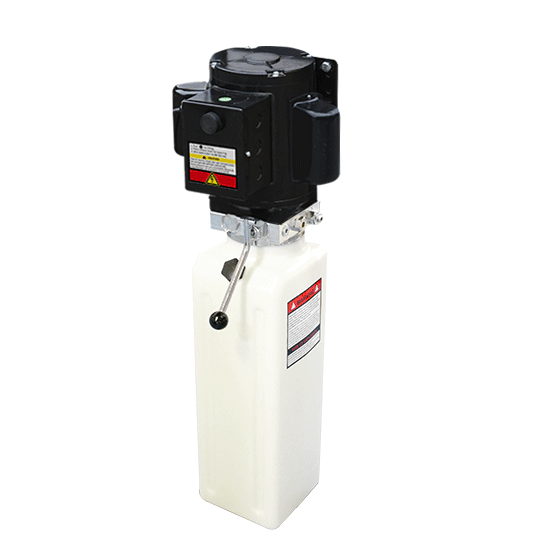

AMGO 071109 Manual Hydraulic Power Unit 110V ETL Certified
Vendor: AMGO Hydraulics
SKU: 071109
$624.99
$479.99
Order Today & Save! Price going up soon.
YOUR #1 TRUSTED SOURCE FOR
GARAGE CABINETS AND STORAGE
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout
Built for demanding, this reliable 110V power unit is the ultimate choice to run your large four post parking lifts and boat storage lifts.
Compatible with AMGO models:
409-HP | 409-DP | 409-DPX | 408HLX.
Features
- With ETL Certificate, 110V single-phase 60Hz AC;
- Equipped with 11L high-density polyethylene oil tank;
- Manual Detrol release valve;
- High pressure gear pump with a displacement 0.8cc/r, the highest pressure up to 25MPa;
- Plug-in design high-pressure relief valve, with a relief pressure set at 21MPa;
- Adjustable reflux speed by throttle valve;
- Longevity & easy maintenance
- Oil outlet is provided on both sides
Specifications
| Part No. | 071109 |
|---|---|
| L | 31 7/16" |
| L1 | 9 5/16" |
| L2 | 22 3/16" |
| Voltage | 110v Single Phase |
| Frequency | 60Hz |
| Power | 1.0HP |
| Pressure | 21MPa |
| Displace ment | 0.8cc/r |
| Tank | 11L |
| Oil Outlet | 3/8SAE |
