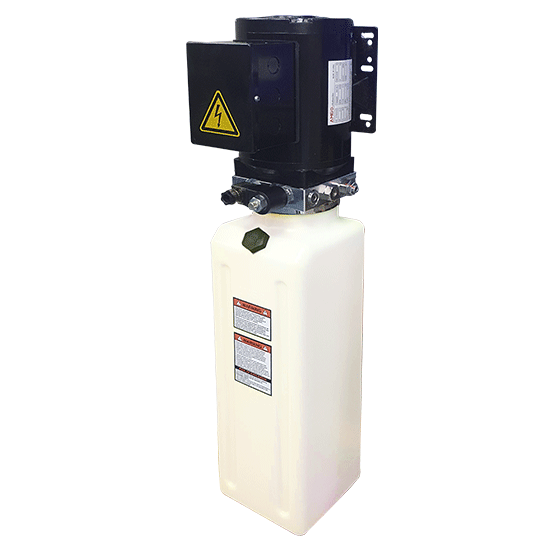

AMGO Hydraulic Power Unit Model 071202 14L Oil Tank 220V
Vendor: AMGO Hydraulics
SKU: 071202
$656.99
$504.99
Order Today & Save! Price going up soon.
YOUR #1 TRUSTED SOURCE FOR
GARAGE CABINETS AND STORAGE
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout
Retains all the great features of the 071201, the advanced 071202 empowers its performance to serive larger car lifts.
Compatible AMGO models:
4097X
Features
- With ETL Certificate, 220V single-phase 60Hz AC;
- Equipped with 14L high-density polyethylene oil tank;
- Electromagnetic release valve control descent;
- High pressure gear pump with a displacement 2.1cc/r, the highest pressure up to 25MPa;
- Plug-in design high-pressure relief valve, with a relief pressure set at 21MPa;
- Adjustable reflux speed by throttle valve;
- Longevity & easy maintenance
- Oil outlet is provided on both sides
Specifications
| Part No. | 071202 |
|---|---|
| L | 35 1/16" |
| L1 | 9 5/16" |
| L2 | 25 3/4" |
| Voltage | 220v Single Phase |
| Frequency | 60Hz |
| Power | 2.0HP |
| Pressure | 21MPa |
| Displace ment | 2.1cc/r |
| Tank | 14L |
| Oil Outlet | 3/8SAE |
Detailed Image
