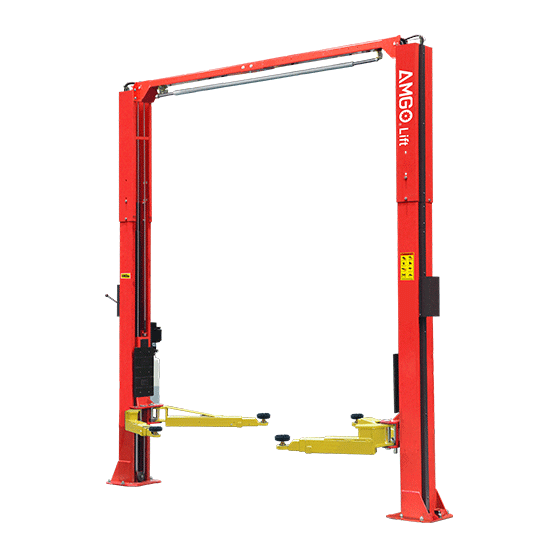

AMGO OH-9 Two-Post Hydraulic Vehicle Lift 9,000 lb Capacity Heavy-Duty
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout
This versatile design optimizes shop or garage space with standard two height settings accommodate different ceiling heights. It incorporates Super Asymmetric technology for convenient symmetric or asymmetric loading. At a 9000lbs capacity, its sturdy structure also supports extra width and height extension, catering to diverse needs.
*Please REQUEST A SHIPPING FEE QUOTE before placing your order as this item request shipping!
Features
- Lifting capacity: 9,000 lbs;
- Dual hydraulic direct-drived cylinders made on high standard;
- The Super Asymmetric arms allow symmetrical or asymmetrical loading, ensuring adequate door clearance ;
- Single-point manual safety lock release, simultaneously unlocks both columns from one side;
- Clear-floor design provides an unobstructed floor use;
- Overhead safety shut-off device for maximum vehicle protection;
- Two standard height settings accommodate varying ceiling heights;
- Self-lubricating UHMW polyethylene sliders
- Automatic arms restraint;
- Areo sync cables come standard;
- Comes with detachable toe guard and tool tray;
- Standard double-screw rubber pad ( pin dia 2″ ) with 3″ extension adapters.
Specifications
| Model OH-9 | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 9,000 Ibs | |
| Lifting Time | 57s | |
| Max. Lifting height: (w/o extension adapter) | A | 71 7/16"~73 3/8" |
| Max. Lifting height: (w/ extension adapter) | 74 7/16"~76 5/16" | |
| Max. lock height: (w/o extension adapter) | 69 5/8″~71 1/2" | |
| Max. lock height: (w/ extension adapter) | 72 5/8"~74 1/2" | |
| Overall Height | B | 143 1/8" (151") |
| Overall Width | C | 135” |
| Drive-Thru Clearance | D | 99 1/2" |
| Width Between Columns | E | 112 3/16" |
| Minimum Pad Height | F | 3 9/16" |
| Gross Weight | 1,493 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 25 Units/20'GP |
Detailed Image
