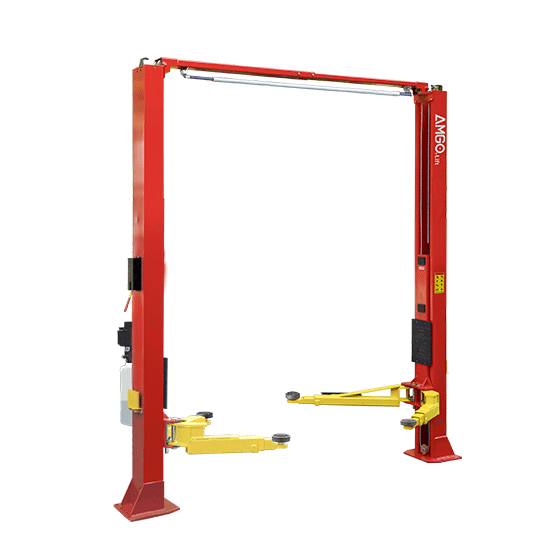

AMGO OHX-10 10,000 lb Two-Post Garage Lift Asymmetric Arms
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout
AMGO OHX-10 is well known for its excellent performance in elaborately structure. It boasts 10000lbs capacity, is built with single-piece column, split-structure top beam and extremely long carriages that ensuring easier installation and easier maintenance. Suitable for workshop and garage over 12ft, it offers width extension as option, and features AMGO Super Asymmetric technology for added convenience during loading.
*Please REQUEST A SHIPPING FEE QUOTE before placing your order as this item request shipping!
Features
- Lifting capacity: 10,000 lbs;
- Dual hydraulic direct-drived cylinders made on high standard;
- The
arms allow an symmetrical or an asymmetrical loading, ensuring adequate door clearance; - Single-point manual safety lock release, simultaneously unlock both columns from one side;
- Clear-floor design, provides unobstructed floor use;
- Overhead safety shut-off device for maximum vehicle protection;
- Easy installation with a single column piece;
- Self-lubricating UHMW polyethylene sliders;
- Automatic arms restraint;
- Areo sync cables come standard;
- Comes with detachable toe guard and tool tray;
- Standard double-screw rubber pad ( pin dia 2” ) with 3” extension adapters.
Specifications
| Model OHX-10 | Clear floor two post lift | |
|---|---|---|
| Lifting Capacity | 10,000 Ibs | |
| Lifting Time | 57s | |
| Max. Lifting height: (w/o extension adapter) | A | 71 7/16"~73 3/8" |
| Max. Lifting height: (w/ extension adapter) | 74 7/16"~76 5/16" | |
| Max. lock height: (w/o extension adapter) | 69 5/8″~71 1/2" | |
| Max. lock height: (w/ extension adapter) | 72 5/8"~74 1/2" | |
| Overall Height | B | 144" |
| Overall Width | C | 134 15/16" (140 7/8") |
| Drive-Thru Clearance | D | 99 13/16" (105 11/16") |
| Width Between Columns | E | 112 1/4" (118 1/8") |
| Minimum Pad Height | F | 3 9/16" |
| Gross Weight | 1,592 Ibs | |
| Motor | 2.0HP | |
| QTY of Container | 15 Units/20'GP |
Detailed Image
Shipping Information
Downloads:
AMGO OHX-10 10,000 lbs 2 Post Lift Manual
Warranty:
Every AMGO Car lift is Guaranteed
Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
