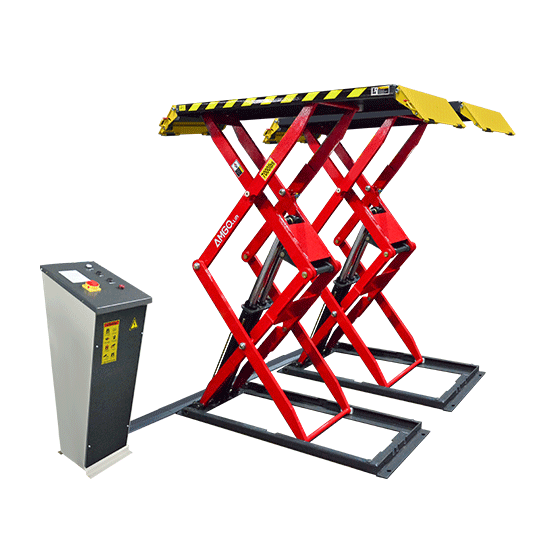

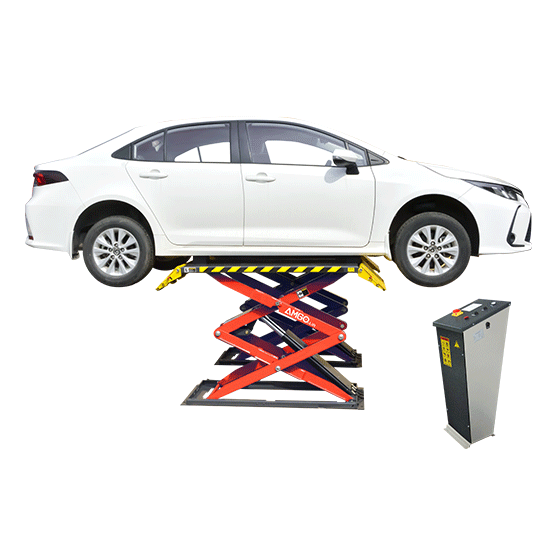

AMGO XL-7 7,000lb Full-Rise Low-Profile Scissor Lift with Dual Locks
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout
AMGO XL-7 features both hydraulic and mechanical locks, ensuring it the safest lift in its class. This full rise lift works great for raising vehicle high enough to work underneath, and boasts a low profile design of only 4 5/8”. With a straightforward installation and a No-Service-Required build, it offers ease of use and can lift up to 7,000lbs.
*Please REQUEST A SHIPPING FEE QUOTE before placing your order as this item request shipping!
Features
• Lifting capacity: 7,000lbs;
• Low profile on surface design, allows easy access for low-clearance vehicles;
• Full rise to 78 3/4″ height, allows confortable work underneatch the vehicle;
• 2-Dual synchronous cylinders are applied to assure the lifting level on both platforms;
• Hydraulic cylinders built with hose burst valves for safety protection;
• Dual safety system features both automatic mechnical lock and hydralic lock;
• No need of extra air source;
• Automatic safety stop device at 11 13/16″ from gound;
• Electro control system, with control cabinet for enhanced safety.
Specifications
| Model | XL-7 | |
|---|---|---|
| Lifting Capacity | 7,000 Ibs | |
| Lifting Time | 50s | |
| Max. Lifting Height | A | 78 3/4" |
| Minimum Height | 4 5/8" | |
| Overall Length | B | 80" |
| Runway Length | C | 57 5/8" |
| Overall Width | D | 76 3/4" |
| Width Between Runways | E | 29 1/2" |
| Gross Weight | 2,006 lbs | |
| Motor | 2.0HP |
Detailed Image
Shipping Information
Warranty:
Every AMGO Car lift is Guaranteed
Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
AMGO XL-7 features both hydraulic and mechanical locks, ensuring it the safest lift in its class. This full rise lift works great for raising vehicle high enough to work underneath, and boasts a low profile design of only 4 5/8”. With a straightforward installation and a No-Service-Required build, it offers ease of use and can lift up to 7,000lbs.
*Please REQUEST A SHIPPING FEE QUOTE before placing your order as this item request shipping!
Features
• Lifting capacity: 7,000lbs;
• Low profile on surface design, allows easy access for low-clearance vehicles;
• Full rise to 78 3/4″ height, allows confortable work underneatch the vehicle;
• 2-Dual synchronous cylinders are applied to assure the lifting level on both platforms;
• Hydraulic cylinders built with hose burst valves for safety protection;
• Dual safety system features both automatic mechnical lock and hydralic lock;
• No need of extra air source;
• Automatic safety stop device at 11 13/16″ from gound;
• Electro control system, with control cabinet for enhanced safety.
Specifications
| Model | XL-7 | |
|---|---|---|
| Lifting Capacity | 7,000 Ibs | |
| Lifting Time | 50s | |
| Max. Lifting Height | A | 78 3/4" |
| Minimum Height | 4 5/8" | |
| Overall Length | B | 80" |
| Runway Length | C | 57 5/8" |
| Overall Width | D | 76 3/4" |
| Width Between Runways | E | 29 1/2" |
| Gross Weight | 2,006 lbs | |
| Motor | 2.0HP |
Detailed Image
Shipping Information
Downloads:
AMGO XL-7 7,000 lbs Low Profile Scissor Lift ManualWarranty:
Every AMGO Car lift is Guaranteed
Every AMGO car lift is delivered with a user manual including in-depth installations and maintenance guidelines, plus easy-to-follow troubleshooting guidance, paired with an official warranty card, all designed to ensure seamless installation, smooth day-to-day operation, and uncompromising on-the-job safety.
AMGO 5-3-2 Warranty: Industry-leading Service
AMGO Hydraulic Corporation offers one of the best warranties in the business with warranties as follows:
1. Steel Structure Components, Warranty for 5 Years;
2. Hydraulic Parts, Warranty for Three 3 Years:
3. Other Parts, electrical components, power unit, Warranty for 2 Years.
