Katool KT-X80 8000 lb Mid-Rise Scissor Lift with Drive-Up Ramps
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout
Professional mid-rise scissor lift engineered for automotive service environments and heavy-duty shop use. The unit delivers an 8,000 lb rated capacity for passenger cars, light trucks, and SUVs, with a hydraulic system and aluminum motor designed for continuous operation. Composite rubber lifting blocks and self-lubricated bushings reduce wear and provide stable vehicle support during service. Drive-up ramps with a lock design extend the platform for longer-wheelbase vehicles and simplify vehicle positioning. The control system uses a 24V safety circuit and a height limit switch to reduce operator error and protect hydraulics. Choose 110V or 220V electrical configurations to match shop power; a pneumatic safety-release option is available where compressed air is preferred. Mobile or fixed-mount installation adapts to bay layouts and workflow requirements, and the portable kit allows repositioning without full disassembly. Service and replacement parts are accessible and the top-level hydraulic components are designed for routine maintenance. A standard one-year parts warranty covers defects, with a three-year structural component warranty for vehicle lifts. Detailed installation and service procedures are provided in the downloadable manual.
Features
- 8000lbs (3500KG) lifting capacity
- CE Approved and Certified – tested to 115% dynamic and 150% static loading capacity

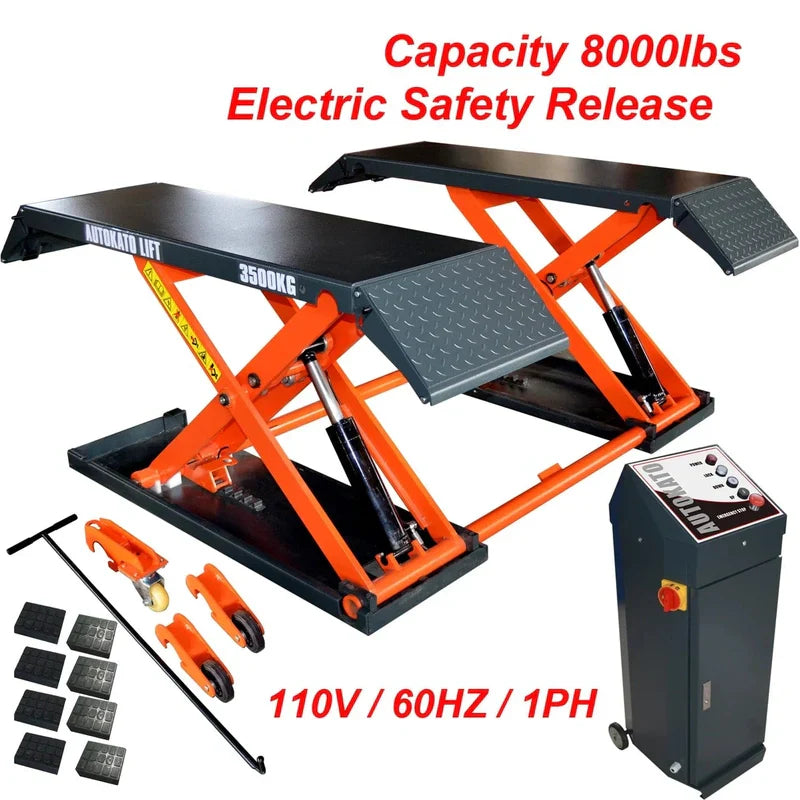

- Available in Pneumatic or Electric safety release versions
- Mobile or fixed-mount design for flexible installation

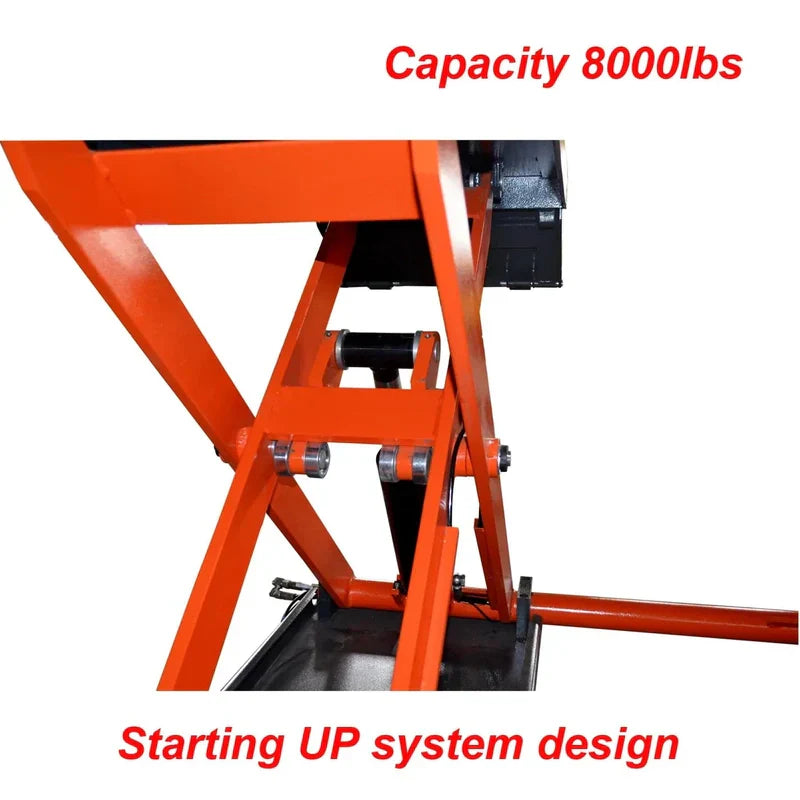

- Starting-up system design for reliable operation
- 24V safe control system and height limit switch
- Composite rubber lifting blocks included
- Self-lubricated bushing and bearing for smooth performance

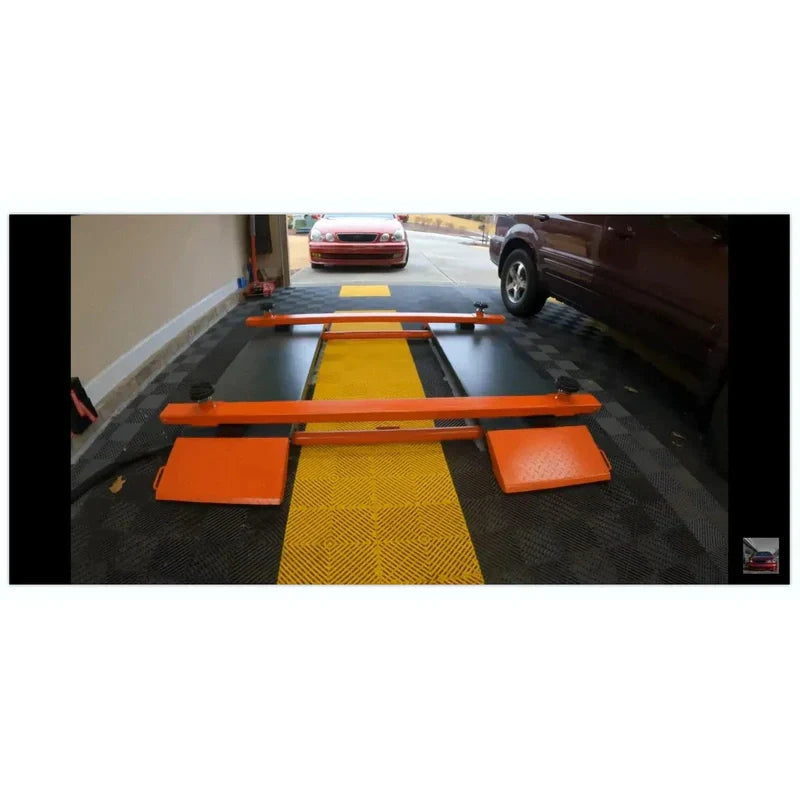

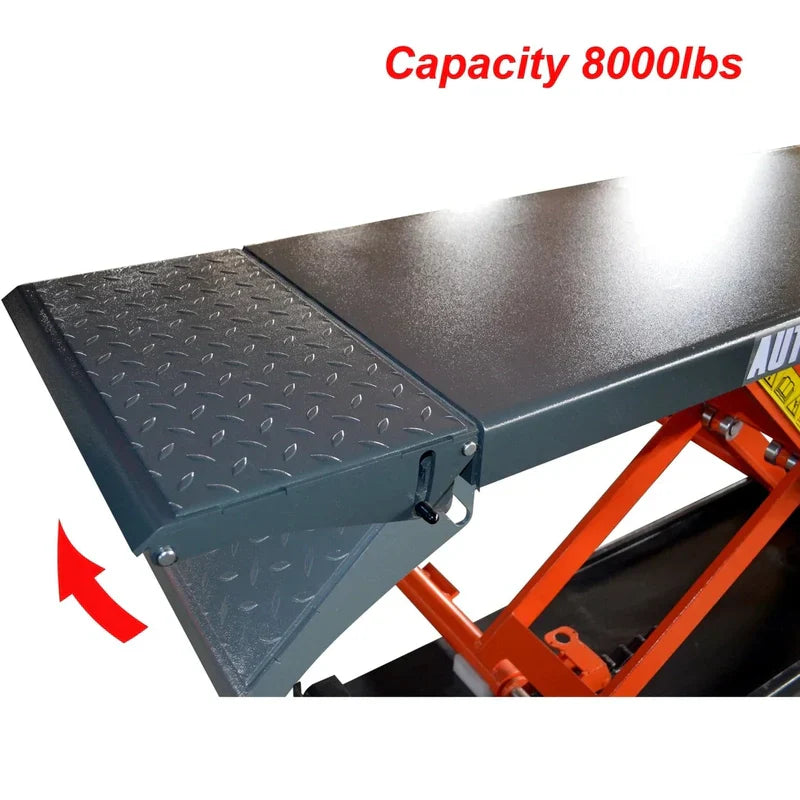

- Drive-up ramps lock design extends platform length for long vehicles
- Portable kit included for easy mobility
- Top-level hydraulic system and aluminum motor with cooling fan
- Operates on 110/220V, 60Hz, single phase
- Note: Pneumatic version requires a compressed air source. For users without one, the Electric model is recommended.

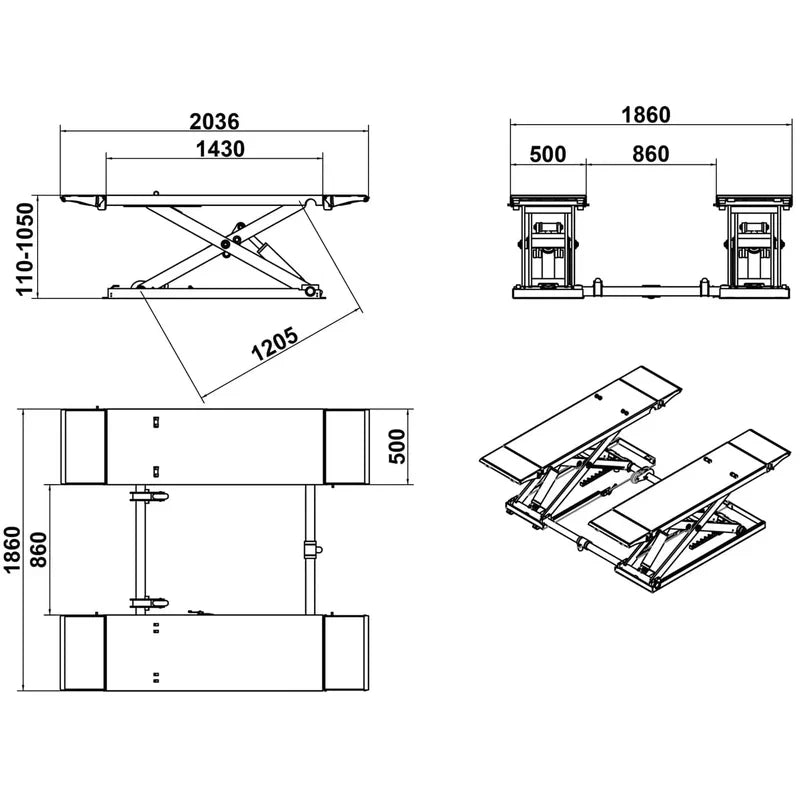

Specifications
| Materials | Steel frame; composite rubber lifting blocks; aluminum motor components |
| Lifting Capacity | 8,000 lb (3,500 kg) |
| Max Lifting Height | 41.25 in (1050 mm) |
| Min Height (lowered) | 4.25 in (110 mm) |
| Platform Length | 56.25 in (1430 mm) |
| Overall Length | 80 in (2036 mm) |
| Platform Width | 19.5 in (500 mm) |
| Overall Width | 73.25 in (1860 mm) |
| Motor / Power | 110/220 VAC, 60 Hz, single phase |
| Net Weight | 1,213 lb (550 kg) |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge. A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
