Le Griddle Insulating Liner for The Ranch Hand Griddles - GFLINER75
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout

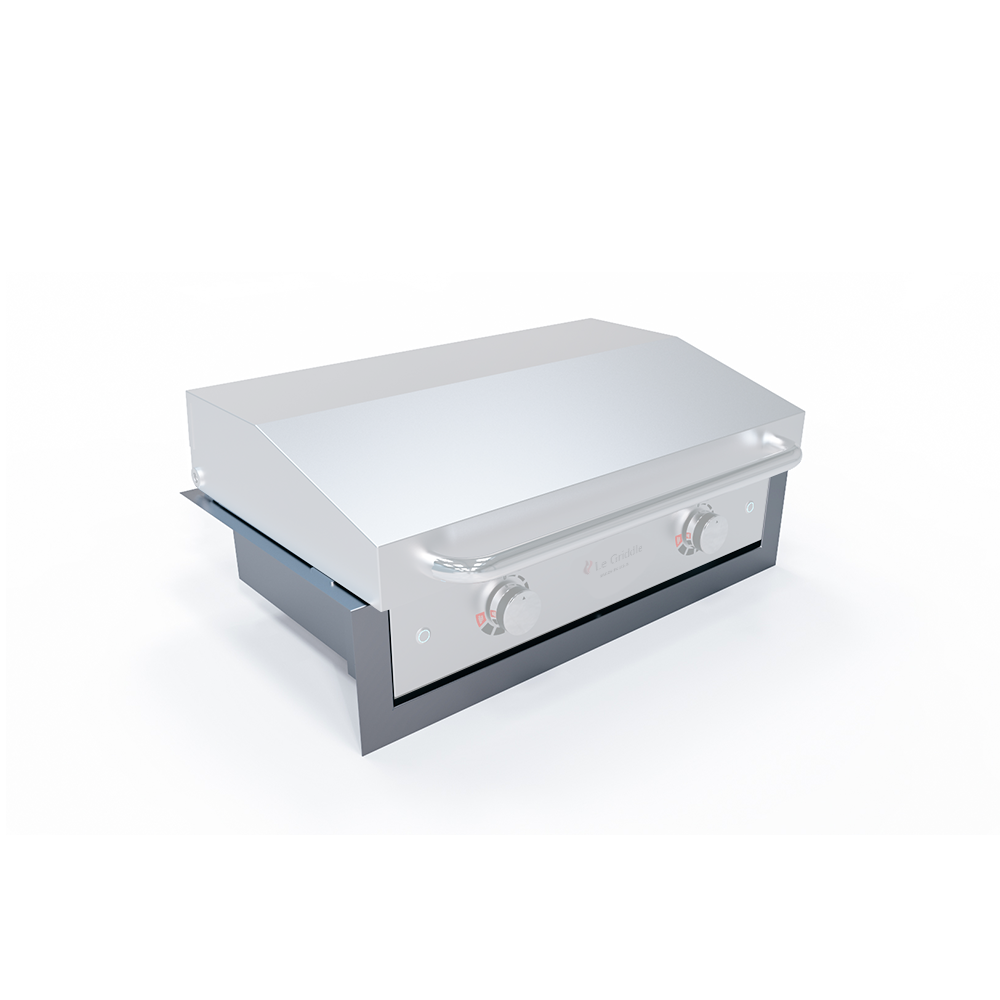

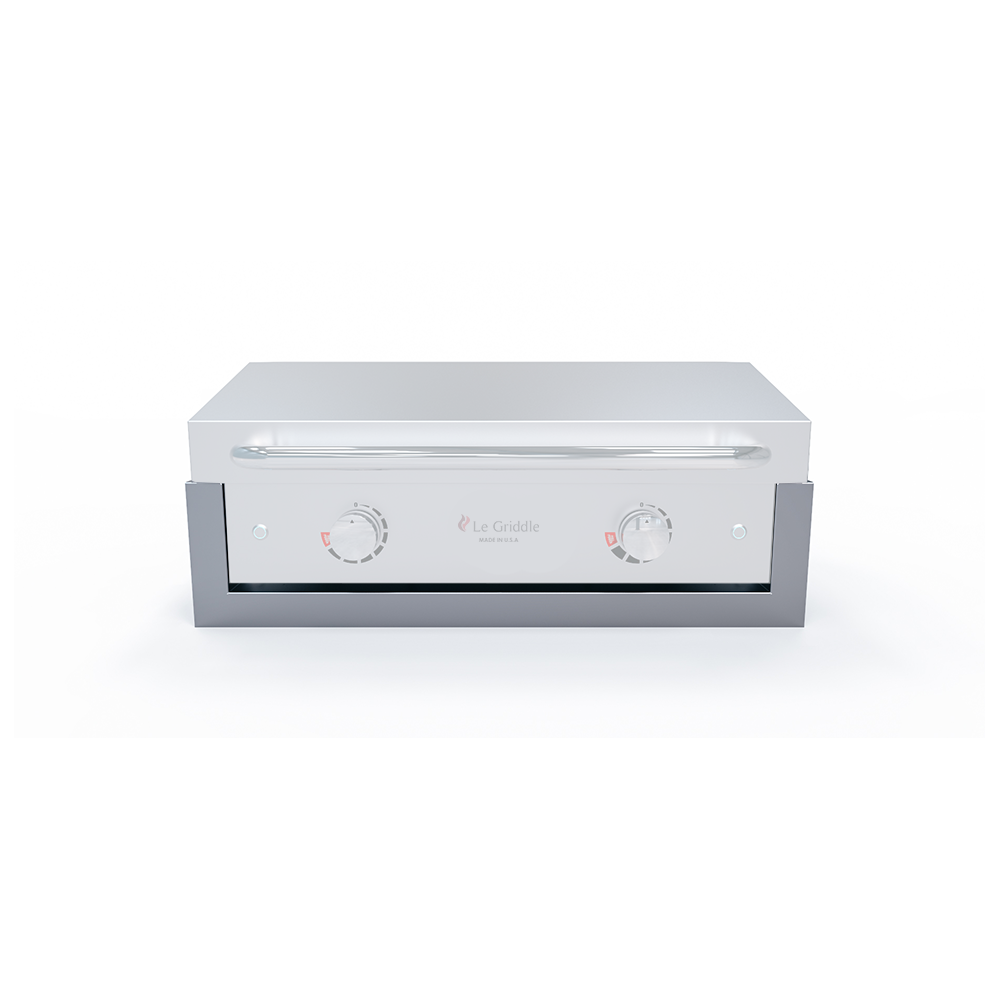

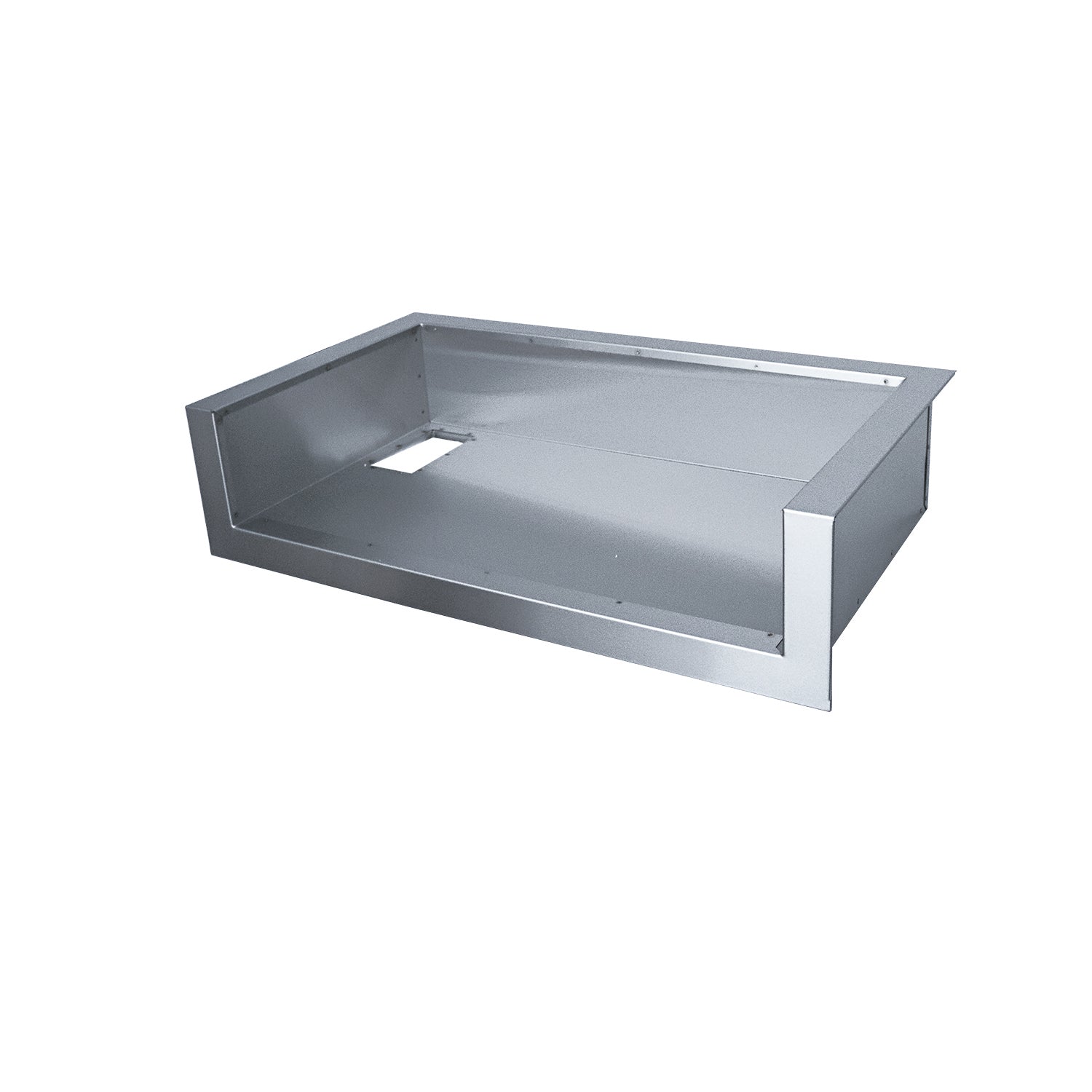

Constructed from 304 stainless steel, this insulated liner protects cabinetry and provides a heat-resistant barrier for built-in Ranch Hand griddle installations. Precision-formed dimensions ensure a snug fit and simplify placement during cabinet cut-out and griddle insertion. The liner includes a notched connection hole for utility routing and resists corrosion for straightforward cleaning. Not compatible with GFFRAME75 trim/frame kits; intended specifically for GEE75 and GFE75 built-in units.
Specifications:
| Material | 304 stainless steel |
| Construction | Welded and formed 304 stainless steel body |
| Overall Dimensions (W x D x H) | 32-15/16 in x 18-11/16 in x 8-1/16 in |
| Cut-Out Dimensions (W x D x H) | 31-1/2 in x 17-1/2 in x 7-1/4 in |
| Compatible Models | GEE75, GFE75 (Ranch Hand built-in griddles only) |
| Connection Access | Notched connection hole provided for utility routing |
| Installation Notes | For cabinets made of non-combustible material or use with an insulation liner; not for use with GFFRAME75 trim/frame kits |
| Includes | One insulating liner (mounting hardware not included) |
| Origin | Made in USA |
Notice - If installing a gas griddle unit into a cabinet, the cabinet must made of a non-combustible material or an insulation liner like this must be used.
NOTE: Does not work with the Trim Kits / Frame Kits - GFFRAME75
