Le Griddle Insulating Liner for The Wee Griddles - GFLINER40
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout

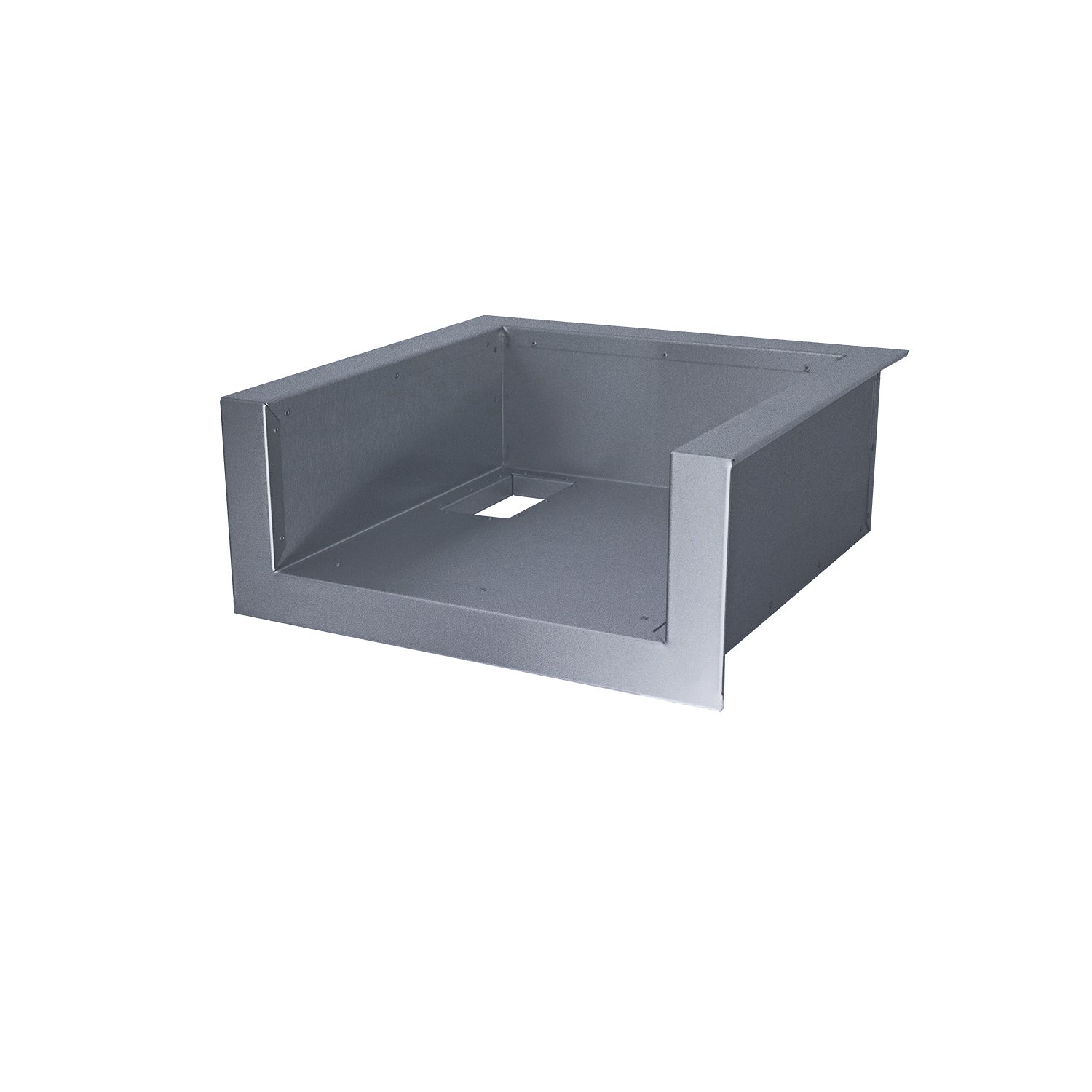

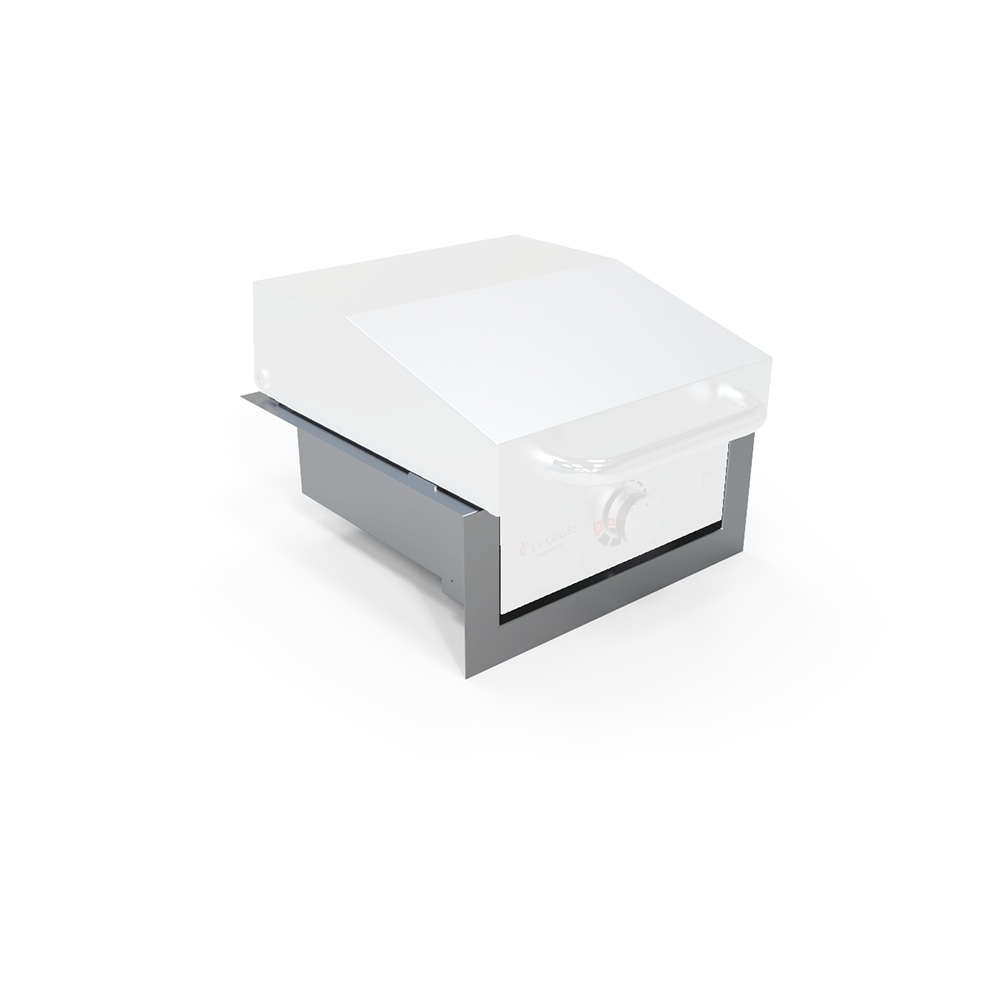

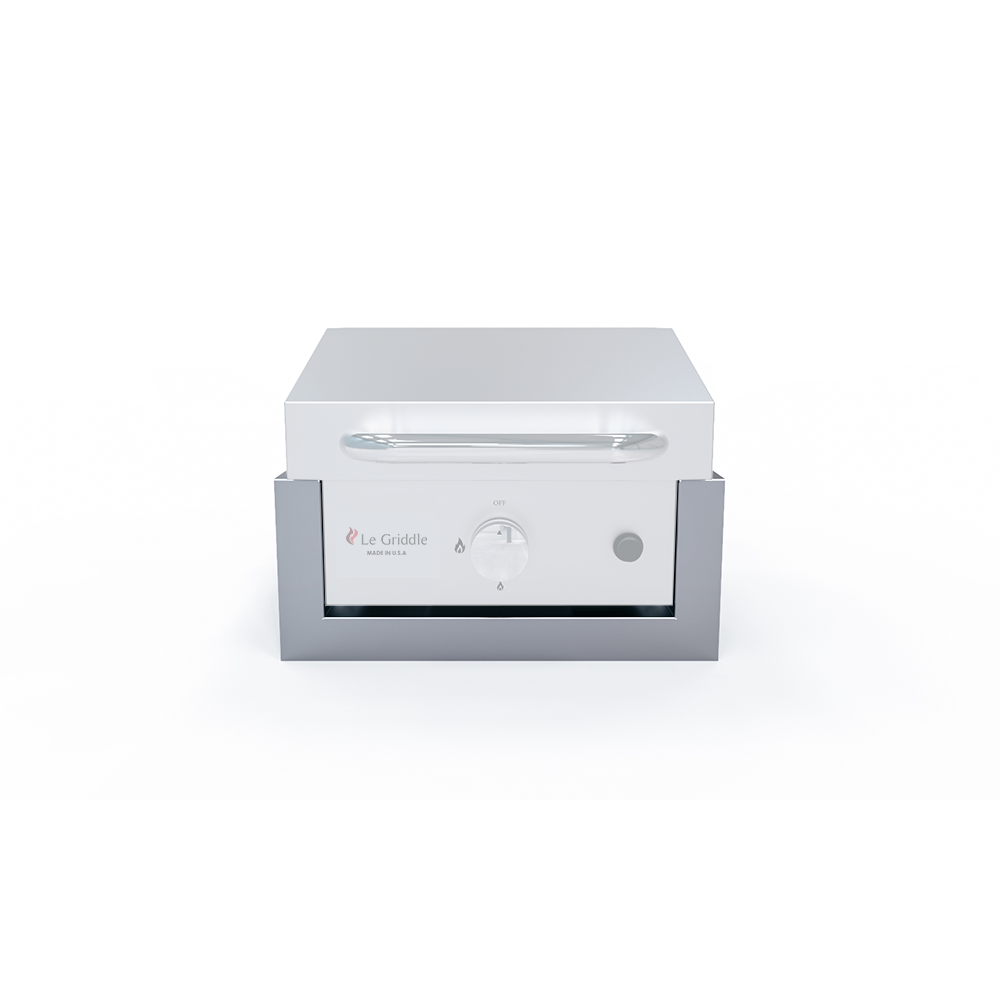

304 stainless steel liner sized for compact built-in griddles; it isolates the cabinet from heat and supports safe installation. Overall dimensions are 19-1/16 in W × 8-1/16 in H × 18-11/16 in D with a 17-1/2 in × 7-1/4 in × 17-1/2 in cut-out profile for GEE40 and GFE40 units. Connection hole is notched at the back-left bottom to accommodate gas routing without modification. Use when the cabinet is not non-combustible or lacks an approved insulation barrier; does not work with GFFRAME40 trim/frame kits. Made in USA; sold as the insulating liner only, mounting hardware not included.
Specifications:
| Model Number | GFLINER40 |
| Material | 304 stainless steel |
| Overall Dimensions (W × H × D) | 19-1/16 in × 8-1/16 in × 18-11/16 in |
| Cut-Out Dimensions (W × H × D) | 17-1/2 in × 7-1/4 in × 17-1/2 in |
| Compatibility | Fits GEE40 and GFE40 Wee Built-In Griddles only |
| Connection Cutout | Notched at back-left bottom for gas connection routing |
| Trim Kit Compatibility | Not compatible with GFFRAME40 trim/frame kits |
| Installation Requirement | Required when cabinet is combustible or lacks insulation; provides thermal isolation |
| Country of Origin | Made in USA |
| Includes | Insulating liner only; mounting hardware not included |
Notice - If installing a gas griddle unit into a cabinet, the cabinet must made of a non-combustible material or an insulation liner like this must be used.
NOTE: Does not work with the Trim Kits / Frame Kits - GFFRAME40
