Le Griddle Insulating Liner for The Big Texan Griddle - GFLINER105
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout

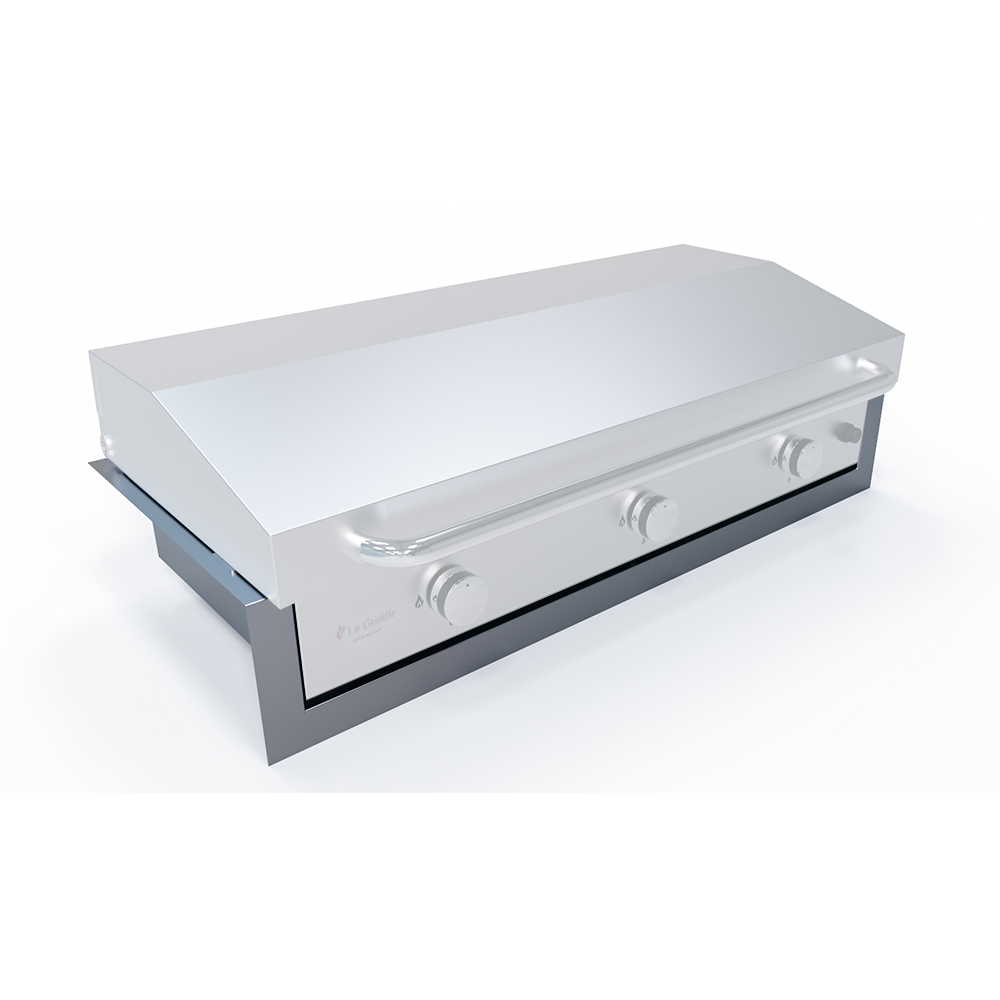

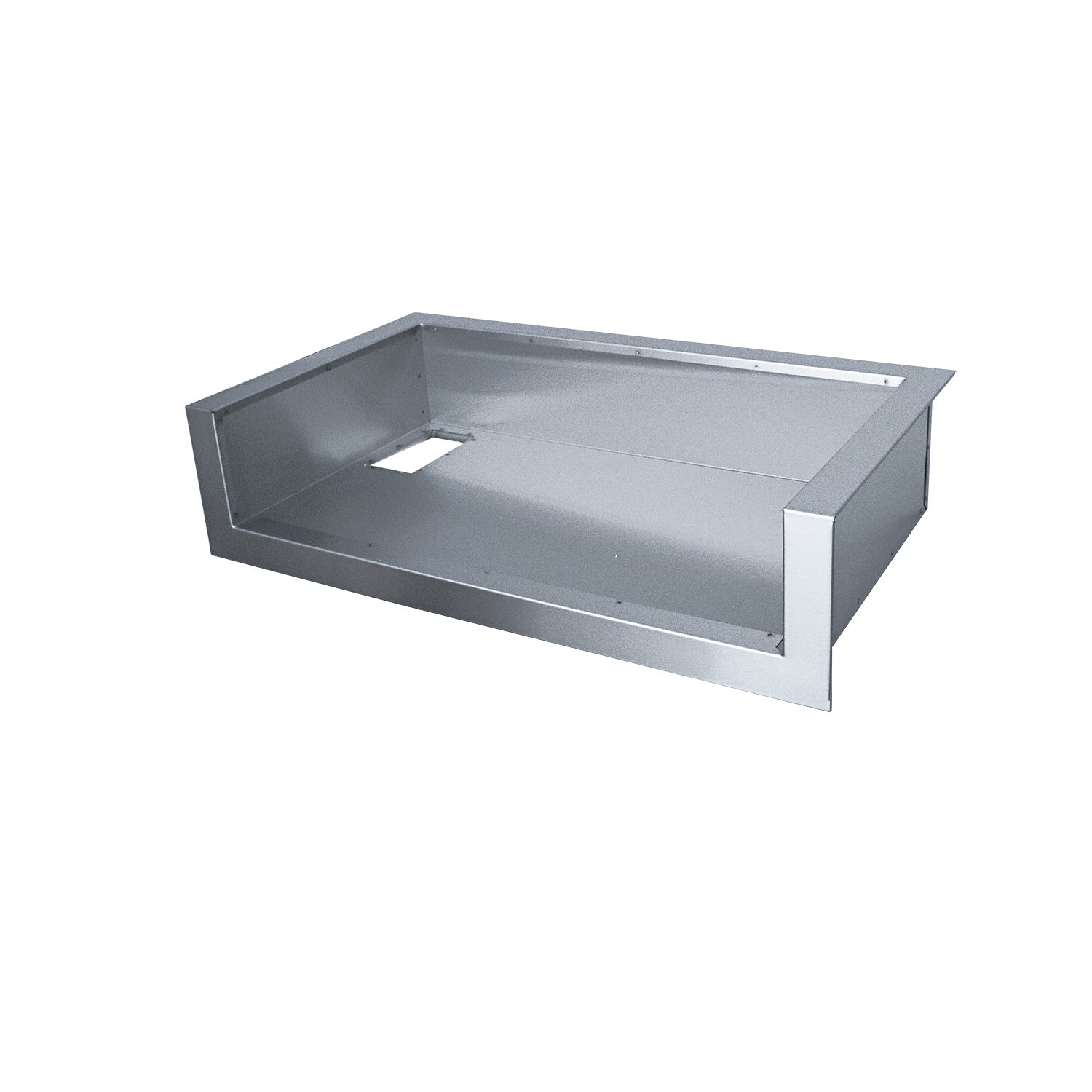

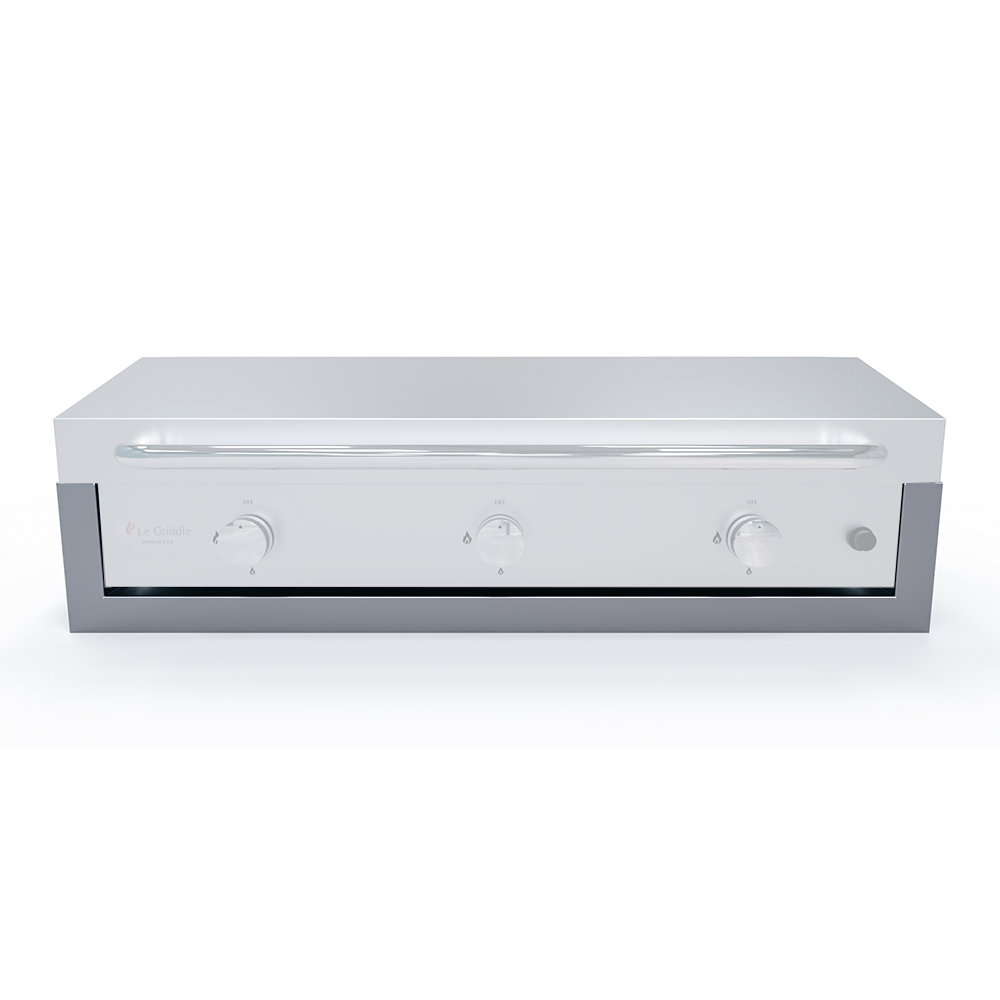

Designed to isolate the Big Texan built-in griddle from combustible cabinetry, this 304 stainless steel liner creates a non-combustible enclosure for safer installation. Precision-formed 304 stainless resists warping and provides a rigid mounting cavity aligned to the griddle footprint. The liner includes a notched connection hole for utility routing and aligns to a 43" x 17-1/2" cutout to maintain recommended clearances. Intended for cabinet use where the cabinet is non-combustible or when an insulating liner is required; incompatible with GFFRAME105 trim/frame kits. Made in USA.
Specifications:
| Material | 304 stainless steel |
| Construction | Formed and welded stainless steel liner, corrosion-resistant finish |
| Overall Dimensions (W x D x H) | 44-9/16" x 18-5/8" x 8-1/16" (44.5625 x 18.625 x 8.0625 in) |
| Cut-Out Dimensions (W x D x H) | 43" x 17-1/2" x 7-1/4" (43.000 x 17.5 x 7.25 in) |
| Fits Models | GFE105 - The Big Texan Built-In Griddle only |
| Connection | Connection hole notched out for gas/electrical routing (as supplied) |
| Installation Note | Cabinet must be non-combustible or use this insulation liner to meet clearance requirements; follow local codes |
| Estimated Shipping Weight | 5.0 kg (estimated) |
Notice - If installing a gas griddle unit into a cabinet, the cabinet must made of a non-combustible material or an insulation liner like this must be used.
NOTE: Does not work with the Trim Kits / Frame Kits - GFFRAME105
Designed to isolate the Big Texan built-in griddle from combustible cabinetry, this 304 stainless steel liner creates a non-combustible enclosure for safer installation. Precision-formed 304 stainless resists warping and provides a rigid mounting cavity aligned to the griddle footprint. The liner includes a notched connection hole for utility routing and aligns to a 43" x 17-1/2" cutout to maintain recommended clearances. Intended for cabinet use where the cabinet is non-combustible or when an insulating liner is required; incompatible with GFFRAME105 trim/frame kits. Made in USA.
Specifications:
| Material | 304 stainless steel |
| Construction | Formed and welded stainless steel liner, corrosion-resistant finish |
| Overall Dimensions (W x D x H) | 44-9/16" x 18-5/8" x 8-1/16" (44.5625 x 18.625 x 8.0625 in) |
| Cut-Out Dimensions (W x D x H) | 43" x 17-1/2" x 7-1/4" (43.000 x 17.5 x 7.25 in) |
| Fits Models | GFE105 - The Big Texan Built-In Griddle only |
| Connection | Connection hole notched out for gas/electrical routing (as supplied) |
| Installation Note | Cabinet must be non-combustible or use this insulation liner to meet clearance requirements; follow local codes |
| Estimated Shipping Weight | 5.0 kg (estimated) |
Notice - If installing a gas griddle unit into a cabinet, the cabinet must made of a non-combustible material or an insulation liner like this must be used.
NOTE: Does not work with the Trim Kits / Frame Kits - GFFRAME105
