Katool KT-AV533 3D Wheel Alignment Machine Professional Wheel Aligner
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout

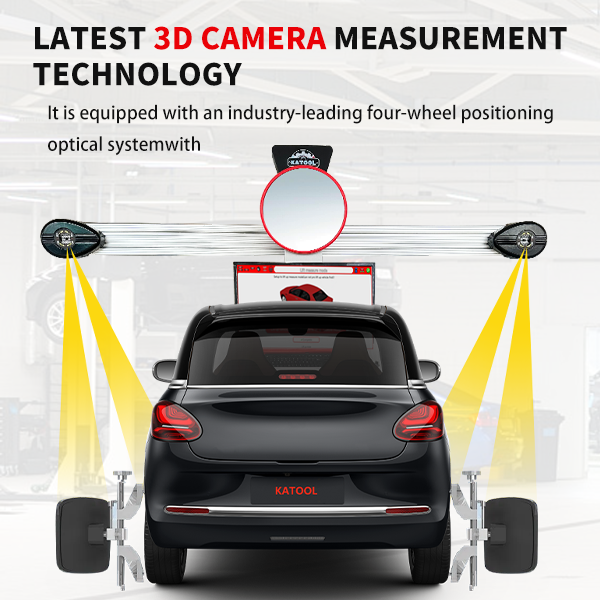

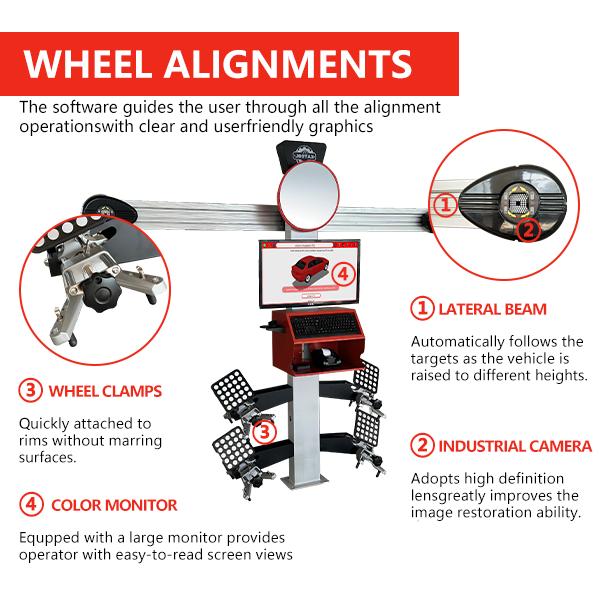

High-resolution imaging sensors capture wheel alignment angles without contact to speed measurements. The system reports total front toe, single-wheel toe, camber, kingpin, thrust and axis angles with professional-grade angular resolution. Angular resolution is 1' (or 0.1 mm linear) with zero drift under 4' within 30 minutes and indicated stability ±2' within 10 seconds. Accuracy specifications provide tighter tolerances in narrow ranges to support precision alignment tasks. Installation requires a level, vibration-free floor and lift compatibility; operators should complete equipment training and understand four-wheel positioning. The unit interfaces with workshop software for measurement display and data logging while maintaining clear sensor sightlines. Routine care includes checking electrical connections, tightening fasteners after service and avoiding liquid exposure to protect sensitive components. The alignment workflow reduces rework and supports faster vehicle throughput by delivering repeatable, documented measurements. A regulated AC supply is recommended where mains voltage is unstable and all power should be disconnected after use. Documentation and calibration procedures are provided to support sustained measurement reliability.
Features
-
Compact and Lightweight Design: Measuring 39.6 inches in length, 25.6 inches in width, and 35.4 inches in height, and weighing 143.3 lbs, the AV533 is designed for easy maneuverability and space efficiency within any workshop.
-
High Hydraulic Pushing Force: Equipped with a hydraulic system capable of delivering a pushing force of 50 kN, facilitating effective adjustments during the alignment process.
-
Efficient Operation: The system operates at an air pressure of 70 MPa, ensuring robust performance and reliability during alignment tasks.
-
User-Friendly Interface: Features an intuitive interface that simplifies the alignment process, allowing technicians to perform tasks with greater efficiency and accuracy.
-
Versatile Application: Suitable for a variety of vehicles, including cars, SUVs, and light trucks, making it a versatile addition to any automotive service center.
Specifications

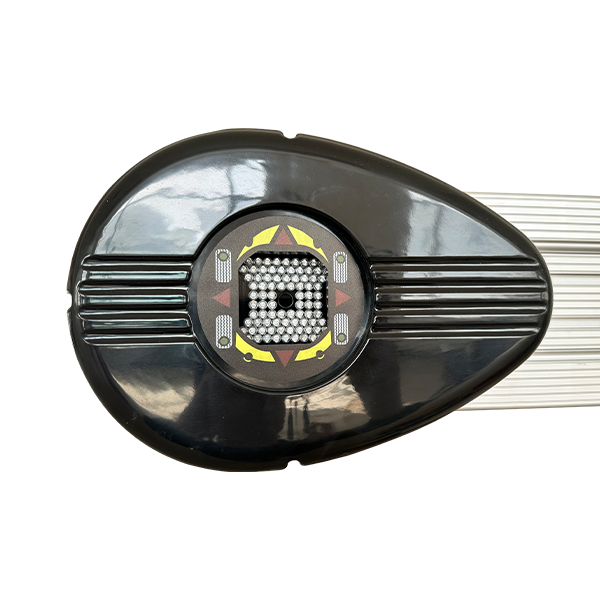

| Sensor type | Imaging-based optical sensors for non-contact wheel measurement |
| Measurement ranges & accuracy | Total front toe ±6°; single-wheel toe ±3°; wheel camber ±10°; kingpin rear ±15°; thrust/axis ±6°; accuracy varies by measurement range (refer to manual) |
| Resolution & stability | Angular resolution 1' or 0.1 mm; zero drift ≤4' within 30 minutes; indicated stability ±2' within 10 seconds |
| Typical footprint (estimated) | 48 x 36 x 60 in (length x width x height) (estimated) |
| Power & environment | AC mains power recommended; use external AC regulator if supply unstable; avoid high humidity and direct sunlight |

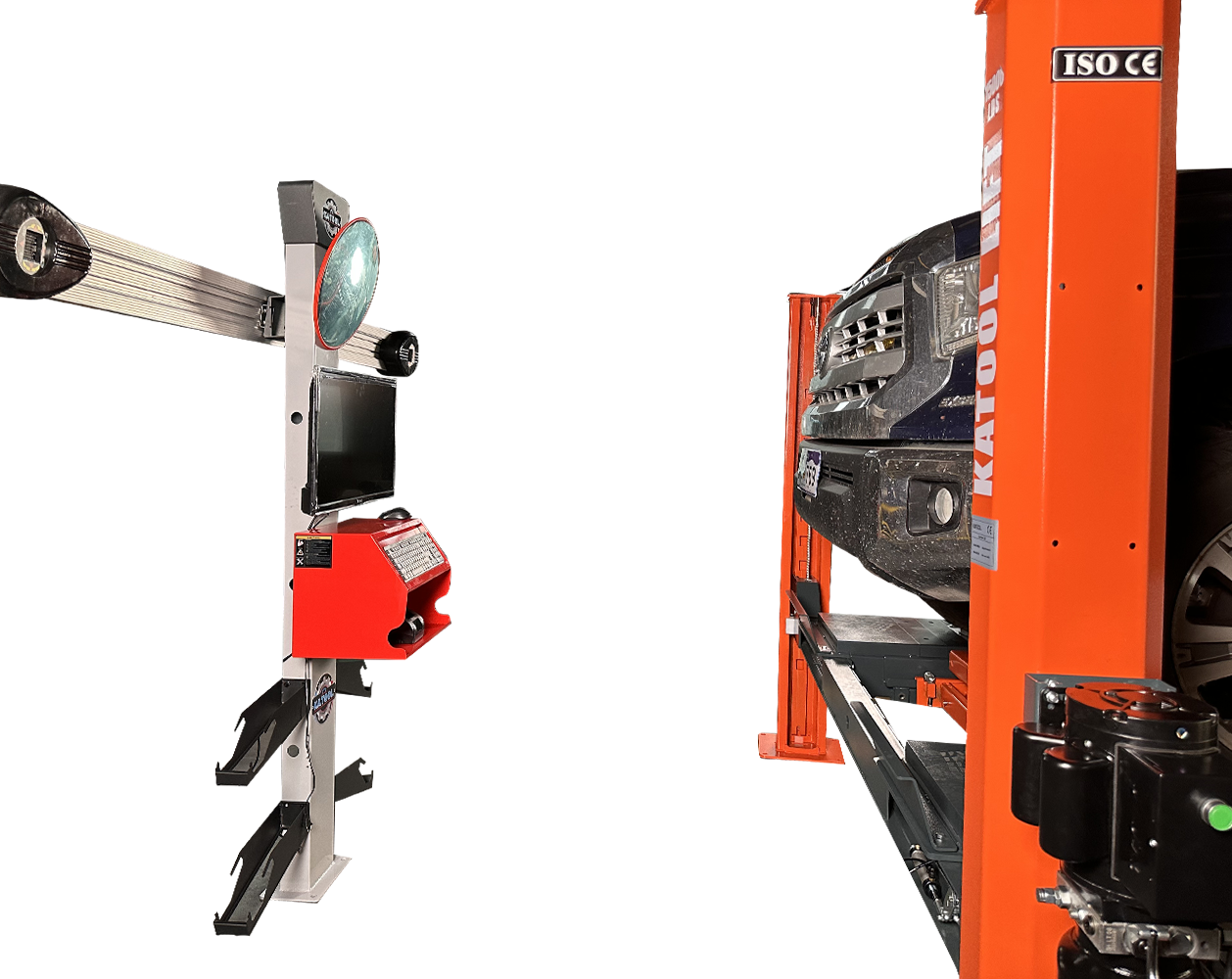

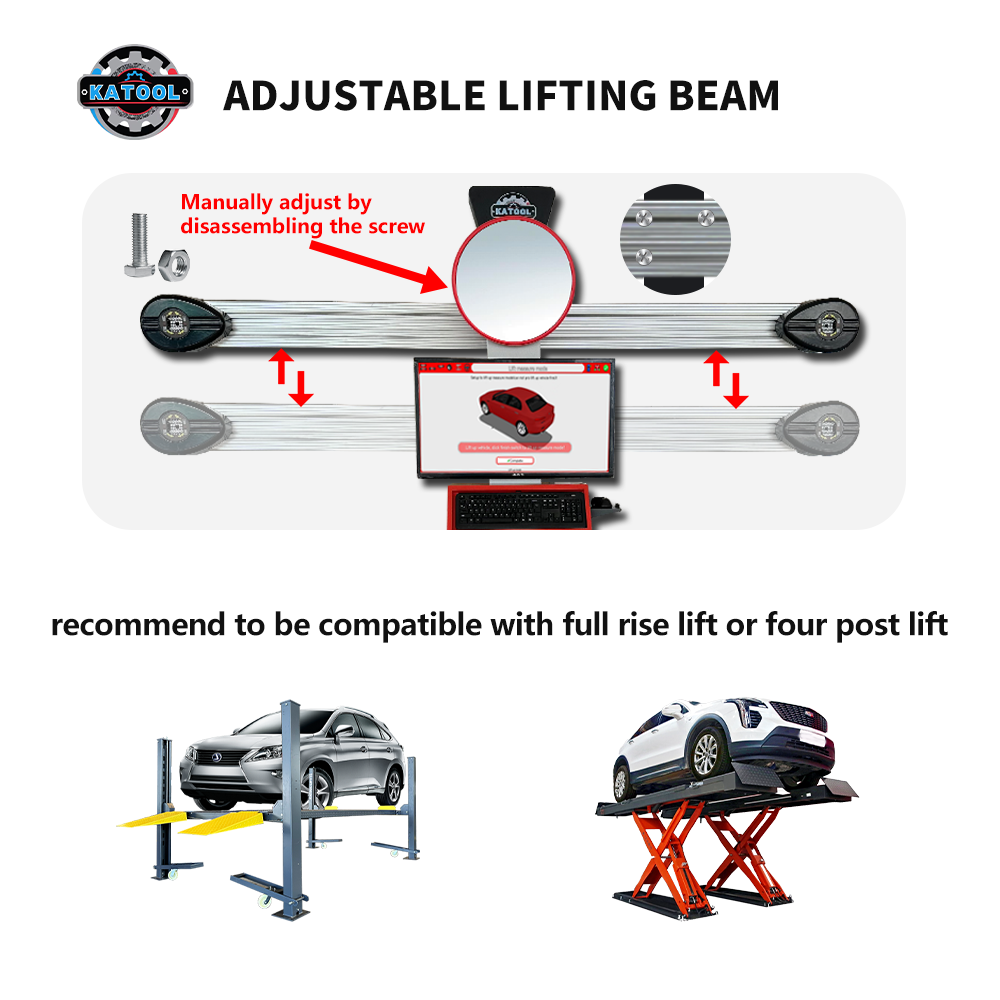

| Installation requirements | Floor-mounted on level, vibration-free surface; compatible with standard vehicle lifts; operator training required |
| Inclusions (estimated) | Alignment sensors, calibration targets, mounting hardware, diagnostic software, user manual, power cable (estimated) |
| Handling & maintenance | Avoid splashing liquids, prevent sensor blockage, inspect and tighten bolts after service, disconnect power when not in use |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
