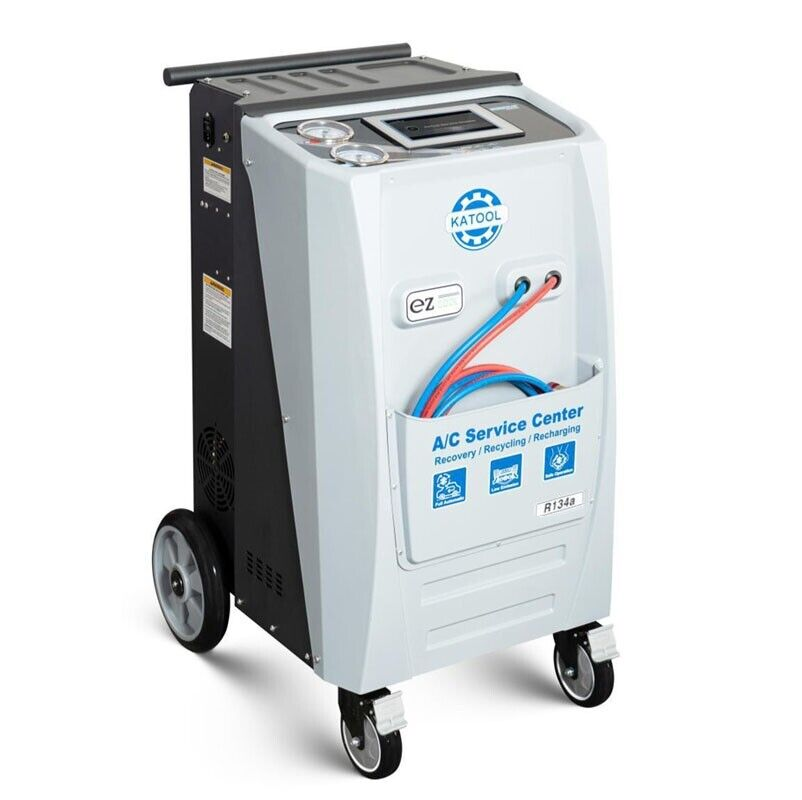

Katool KT-AC1800 Dual Fully Automatic R-134A Recovery, Recycle & Recharge Machine
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout
Designed for R-134a service, this dual AC1800 unit combines recovery, recycling and precise charging for automotive air conditioning systems. A hermetically sealed 1/3 hp compressor and dual-stage 3.6 CFM vacuum pump deliver controlled evacuation and reliable refrigerant handling. Integrated high-precision gas and oil loadcells and a 7-inch touchscreen provide ±0.04 oz accuracy and clear, repeatable measurement feedback. Charge accuracy is ±0.5 oz and the unit supports rapid recovery at approximately 39.7 lb/h for efficient workshop throughput. Built-in features include an internal 0.5 cu ft service tank, 250 mL oil bottle, SAE J2788 9.8 ft service hoses and an onboard printer with SD database. Controls and transducers operate across a 41–122°F range and the unit runs on standard 110V AC, 60 Hz power for typical shop installations. The spin-on filter-drier and fan/condenser assembly reduce contamination risk while optional heating belt support aids refrigerant handling in cooler environments. Precision vacuum and pressure monitoring with a 1 mBar transducer accuracy helps confirm system integrity before charge cycles. The machine ships on freight with packing dimensions of 22 x 28 x 41 inches and a gross weight of 240 lb; commercial unloading is recommended. Documentation, SD-backed service records and printer output simplify record keeping and on-vehicle diagnostics during routine AC maintenance.
Specifications
|
Applicable Refrigerant Type |
R134a |
|
Voltage |
110V AC, 60 Hz |
|
Recovery Performance(70-75°F) |
Min.95% in less than 30min |
|
Charge Performance(70-75°F) |
±0.5 oz (15 g) |
|
Operate Temperature Range |
41-122°F (5-50°C) |
|
Max Pressure |
18 bar |
|
Filter-Drier Capacity |
175 lbs (80kg),spin-on type |
|
Gas Loadcell Accuracy |
0.04oz/66lbs(1g/30kg) |
|
Oil Loadcell Accuracy |
0.04oz/66lbs(1g/30kg) |
|
Vacuum Transducer Accuracy |
1 mBar/1000mBar |
|
Recovering Speed |
39.7 lbs/h (18kg/h) |
|
Charge Speed |
2.2 lbs/min(1kg/min) |
|
Hose Length |
9.8’(3m)SAE J2788 |
|
Compressor |
1/3hp(246W).themal protected,oiled,hermetically sealed |
|
Vacuum Pump |
3.6 CFM(120L/min),dual stage |
|
Display |
7”touch HQ |
|
Tank |
0.5 cubic feet(14.3L) |
|
Oil Bottle |
15 cubic inch(250mL) |
Additional information
|
Printer |
YES |
|
Heating Belt |
optional |
|
SD Database |
YES |
|
Vacuum Test |
YES |
|
Fan&Condenser |
YES |
|
Packing Size |
22”x 28”x41”(550x700x1050mm) |
|
Gross Weight |
240lb(110kg) |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
