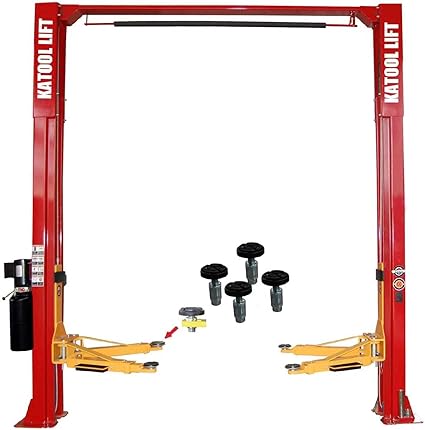

Katool KT-M110 11,000 lb Two-Post Clear-Floor Car Lift
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout
A heavy-duty two-post clear-floor lift designed for professional garages and serious home shops. Rated for 11,000 lb lifting capacity, it supports light trucks and most commercial vehicles. Symmetric arm configuration and a 94.5 in drive-through clearance provide flexible vehicle positioning. Dual hydraulic chain-drive cylinders deliver controlled vertical travel up to 70.75 in maximum height. Manual safety release accessible from both sides and an overhead safety shutoff bar enhance operator control. Includes extension support adaptors (+30 mm, +120 mm), rubber door-pad protection, and feet guardrails with an integrated toolbox. Top-level hydraulic power unit operates at 220V/60Hz/1PH with an optional 110V conversion available as add-on. Minimum pad height is 4.25 in, allowing access for low-clearance vehicles while maintaining stable support. Net equipment weight is 1367 lb, and installation requires a minimum 5.9 in, 3000 PSI concrete slab. Freight-only delivery and forklift unloading are recommended; verify site access and unloading arrangements prior to shipment.
*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
Features
- 11000lbs lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Symmetric clear-floor design

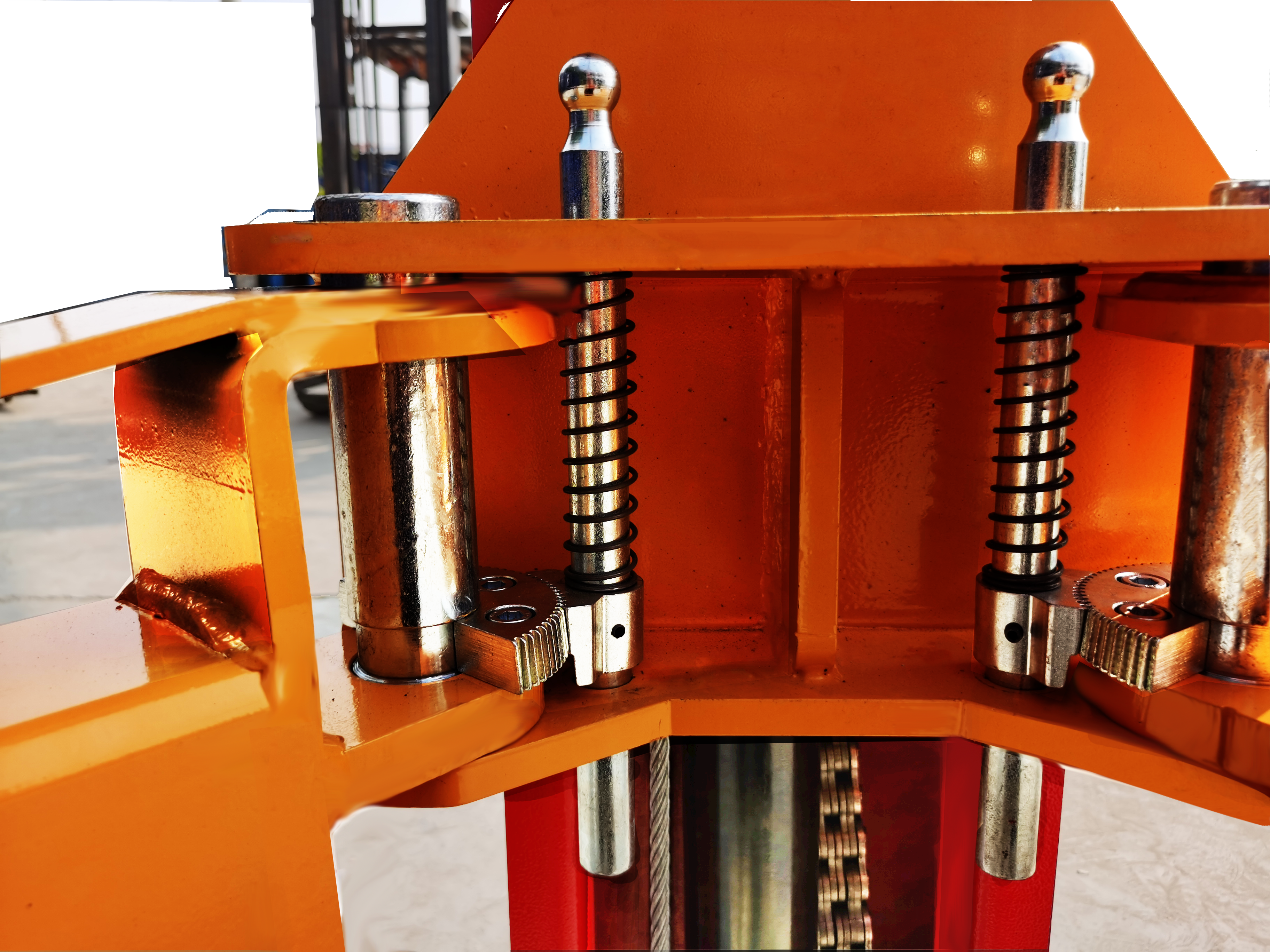

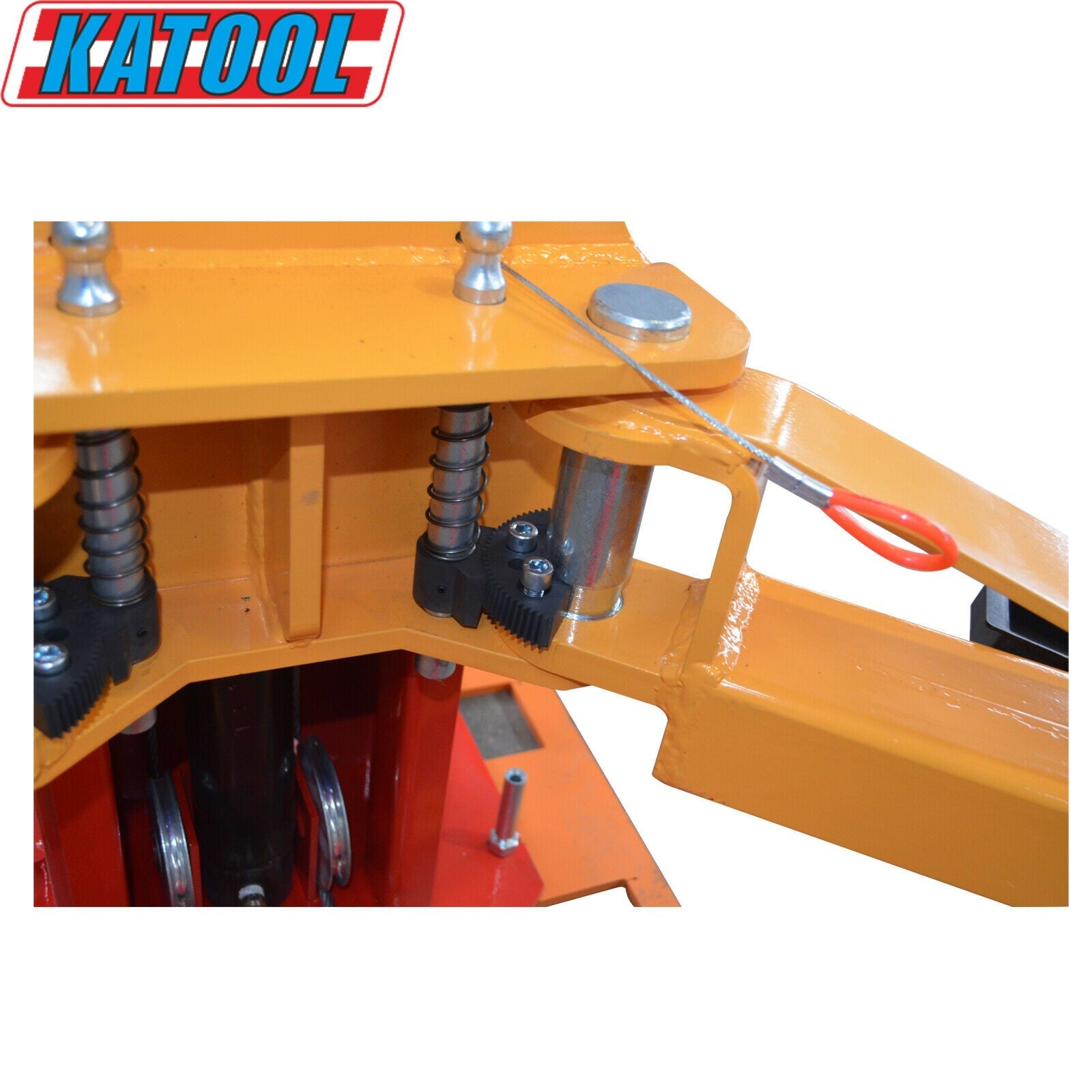

- Manual safety release from two sides

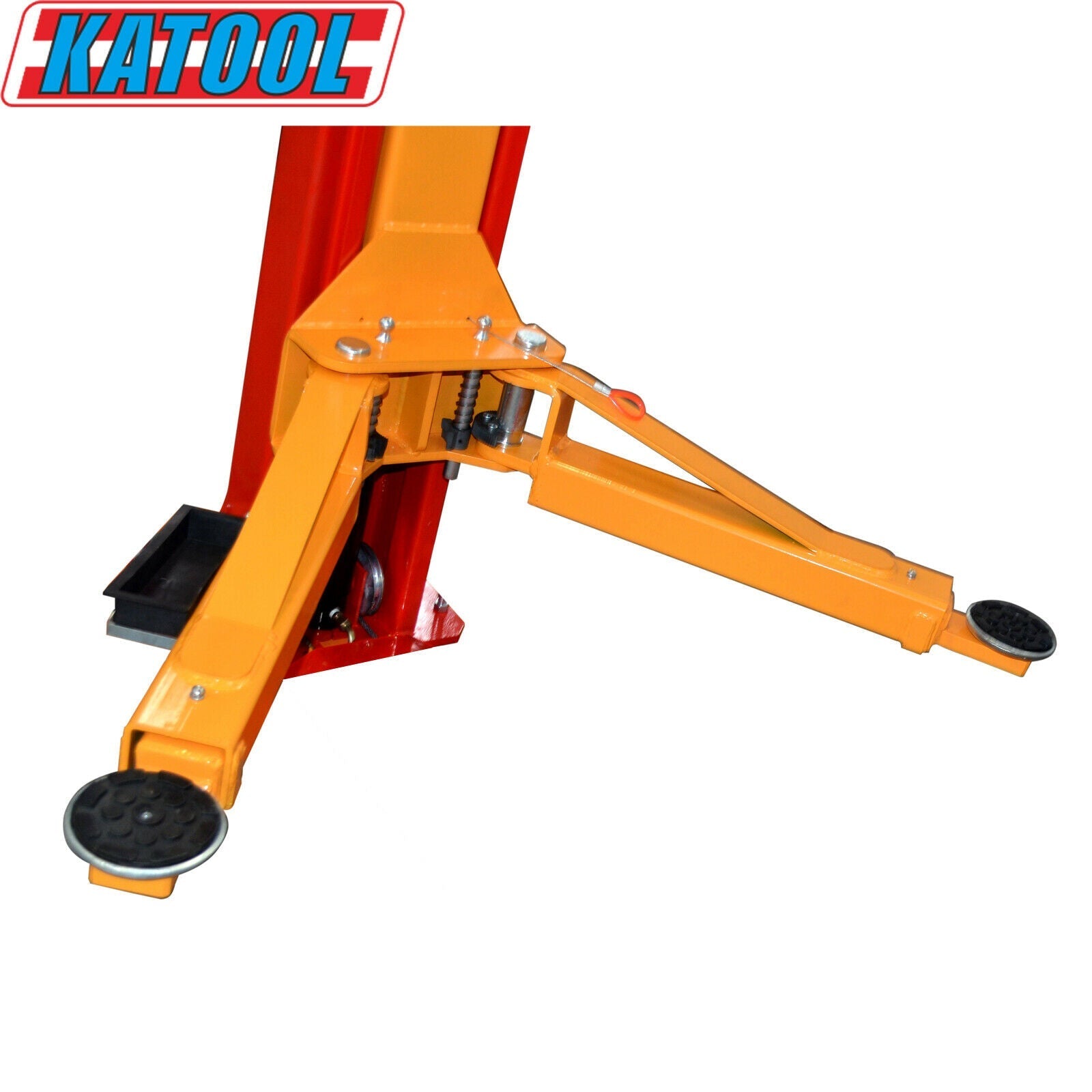

- Symmetric arm

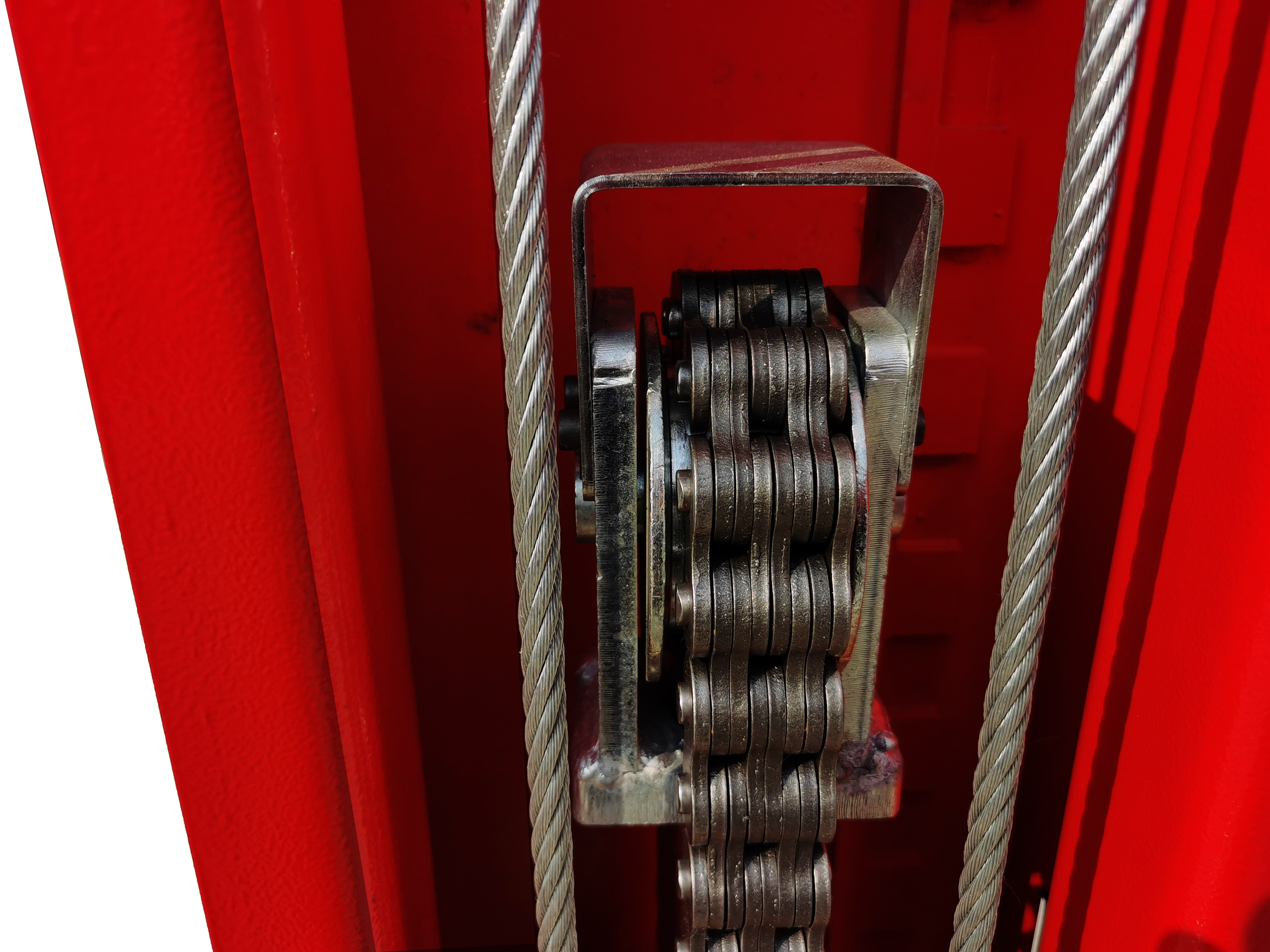

- Dual Hydraulic Chain-Drive Cylinders
- Rubber pad door opening protection

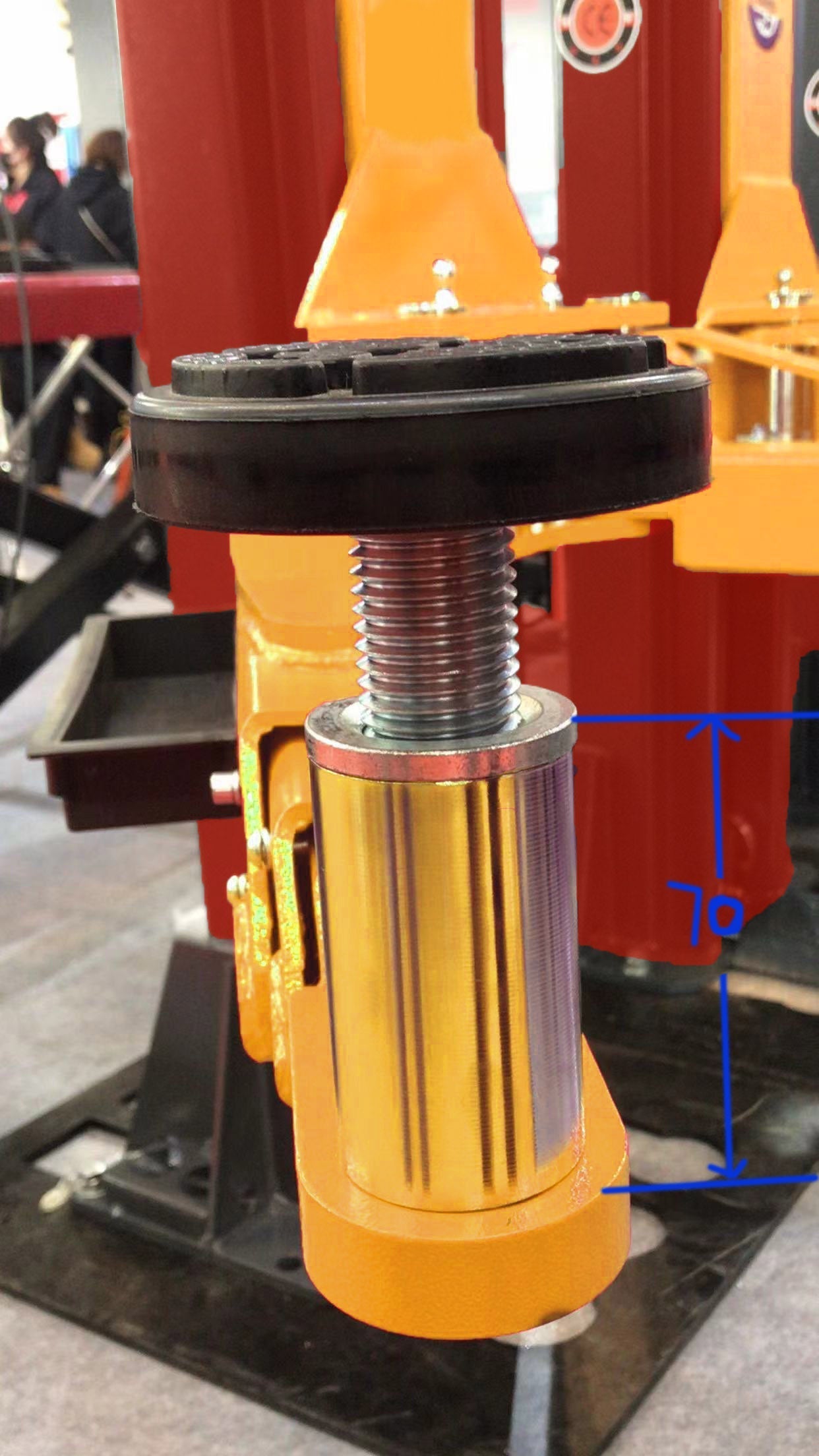

- Comes with extension support adaptor sets of +30mm and +120mm
- Added overhead safety shutoff bar
- Feet-protection safety guardrails with tools box
- Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH(Optional)

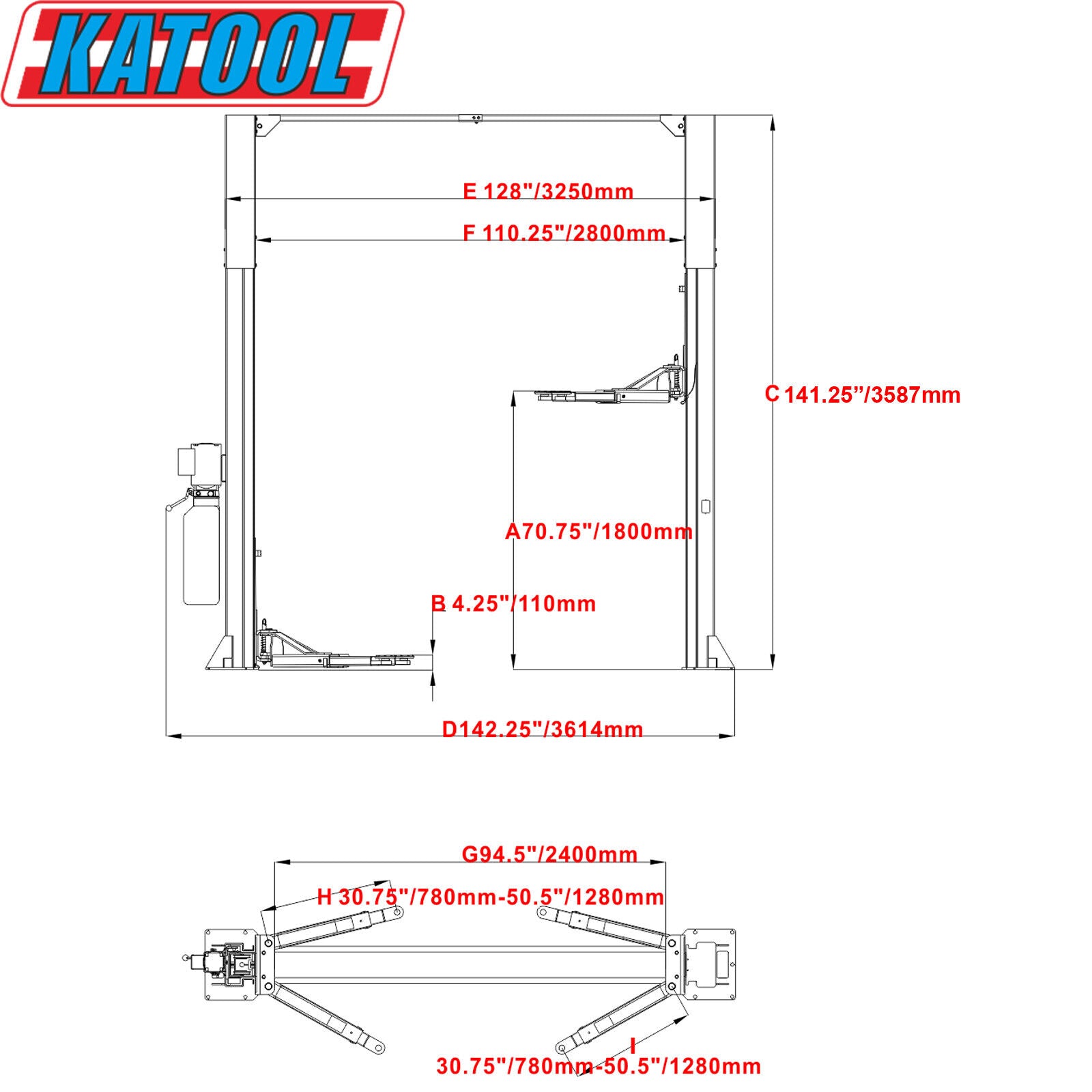

Specifications
| Lifting Capacity | 11000lbs.(5000KG) |
| Max. Lifting Height | 70.75"/1800mm |
| Min. Height | 4.25"/110mm |
| Height Overall | 141.25"/3587mm |
| Width Overall | 142.25"/3614mm |
| Outside Column | 128"/3250mm |
| Inside Column | 110.25"/2800mm |
| Dirve-Thru Clearance | 94.5"/2400mm |
| Front Arm Reach (Min) | 30.75"/780mm (2 stages) |
| Front Arm Reach (Max) | 50.5"/1280mm (2 stages) |
| Rear Arm Reach (Min) | 30.75"/780mm (2 stages) |
| Rear Arm Reach (Max) | 50.5"/1280mm (2 stages) |
| Motor | 220VAC/60HZ/1PH/2.2KW |
| Net Weight | 1367lbs/620KG |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
