Katool KT-M150D 15,000 lb Two-Post Car Lift
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout

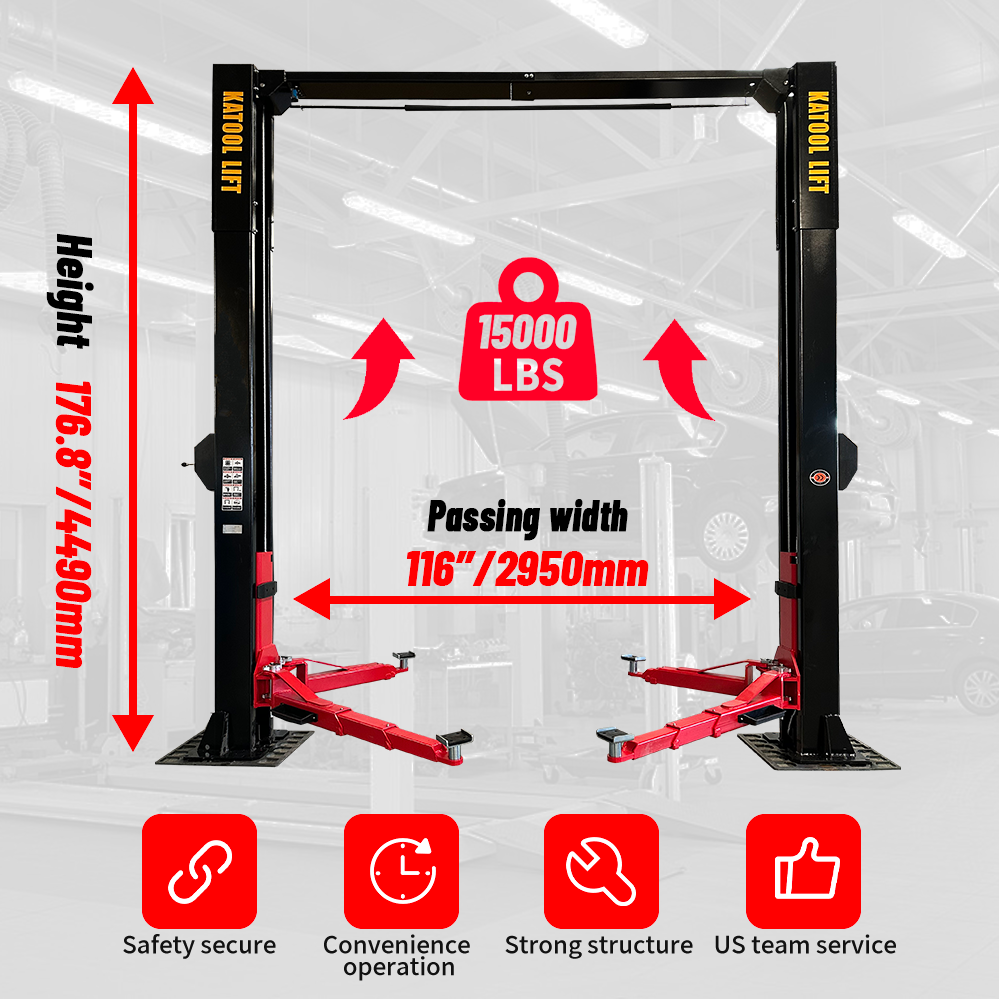

Heavy-duty two-post design provides stable, symmetrical lifting for a wide range of vehicles. Rated for 15,000 lb capacity with a max lifting height of 72.83 in, it supports light trucks and large SUVs. Direct-drive hydraulic system delivers consistent, low-maintenance operation and efficient load handling. Single-point lock release enables fast, synchronized lowering for safe service procedures. 220V 60Hz 3 kW (4 HP) power unit offers ample torque for frequent shop use. Constructed from heavy-gauge steel and reinforced posts for long service life (estimated). Symmetric arm configuration simplifies vehicle centering and axle work without complex repositioning. Installation requires a minimum 5.9 in thick, 3000 PSI concrete pad and professional anchoring to meet safety parameters. Service technicians benefit from clear arm reach and robust locking increments for routine maintenance tasks. Documentation and basic installation hardware are provided to assist with shop integration.
*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
Features
- 15,000 lbs lifting capacity.
- Max lifting height of 72.83".

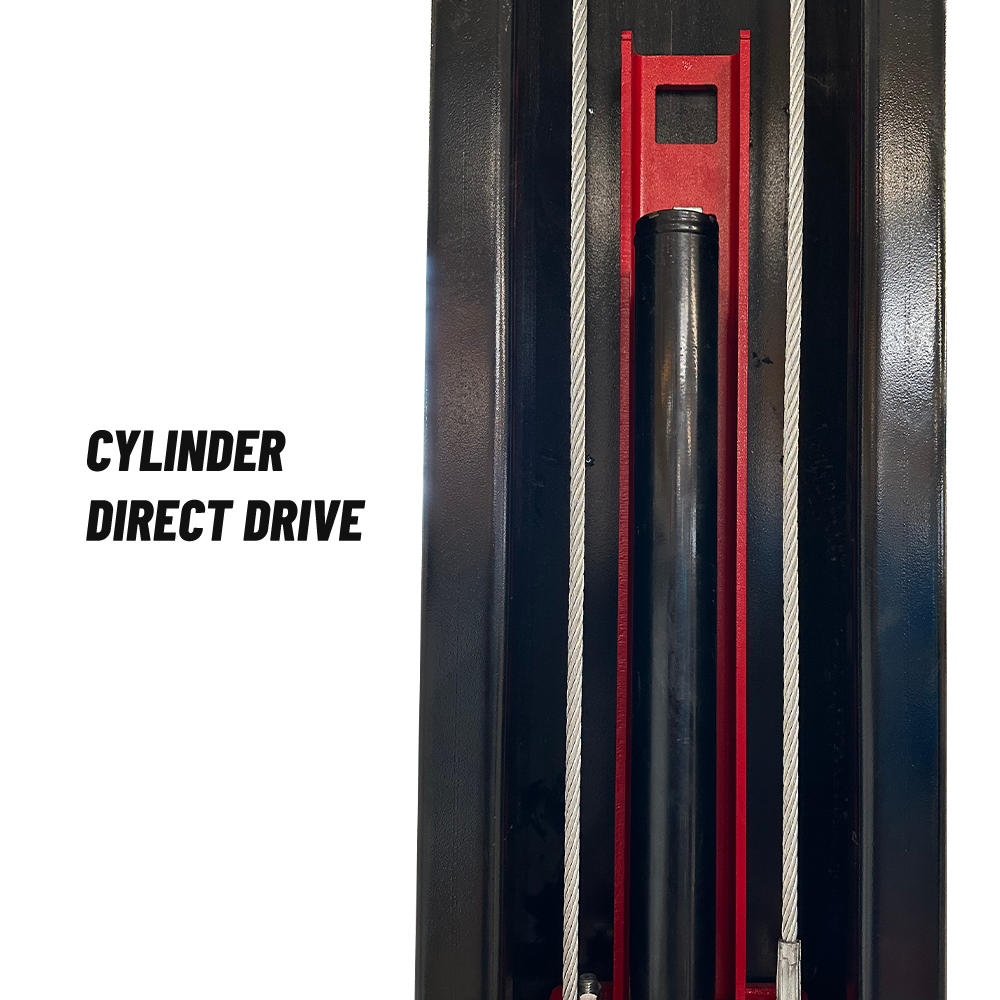

- Direct drive.
- Symmetric.

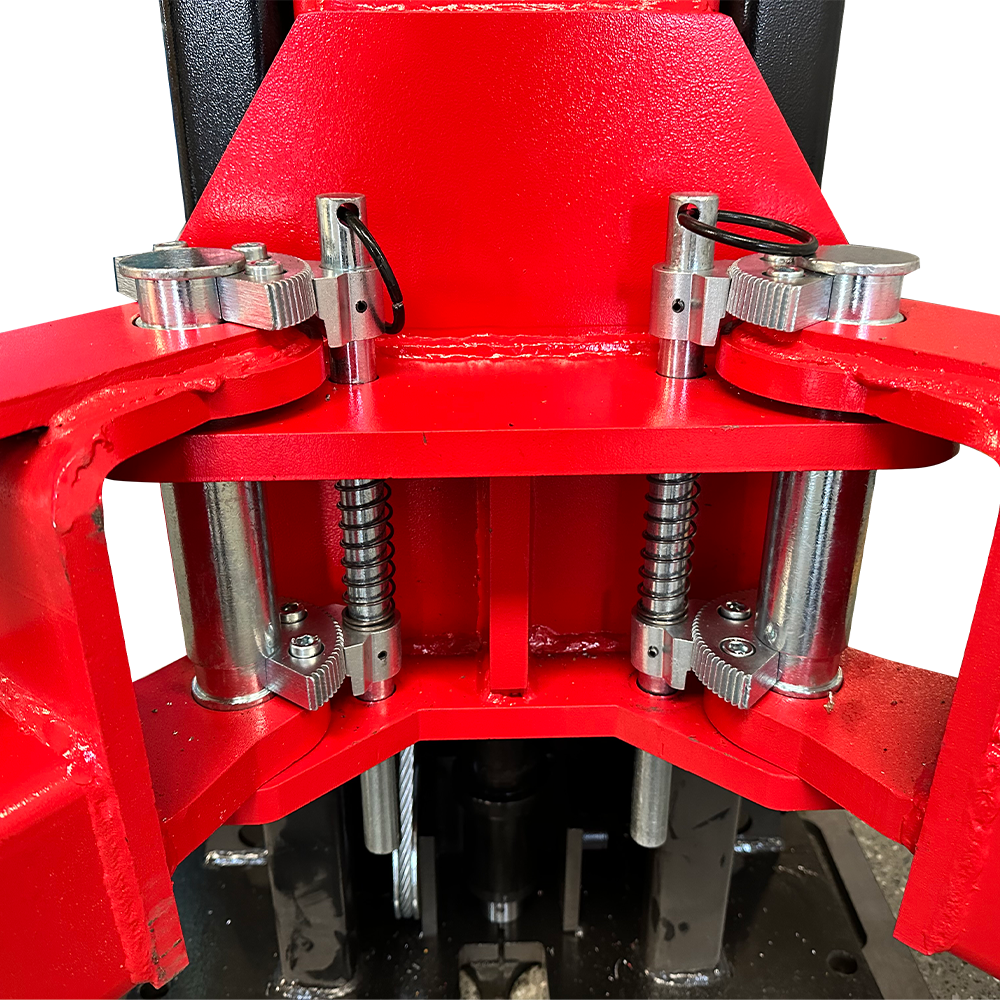

- Single point lock release.
-
220V 60Hz 3KW 4HP
Specifications
| Lifting capacity | 15,000 lb |
| Maximum lifting height | 72.83 in |
| Drive type | Direct drive hydraulic |
| Motor / Power | 220V 60Hz, 3 kW (4 HP) |
| Locking mechanism | Single-point lock release |
| Symmetry | Symmetric |
| Construction material | Heavy-gauge steel (estimated) |
| Concrete requirement | Minimum 5.9 in thickness, 3000 PSI concrete |
| Installation notes | Floor-mounted with anchor bolts; professional installation recommended (estimated) |
| Included components | Two posts, two lifting arms, hydraulic power unit, basic installation hardware and manual (estimated) |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
