Katool KT-310 Auto Body Frame Machine 7000 lb Capacity
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout

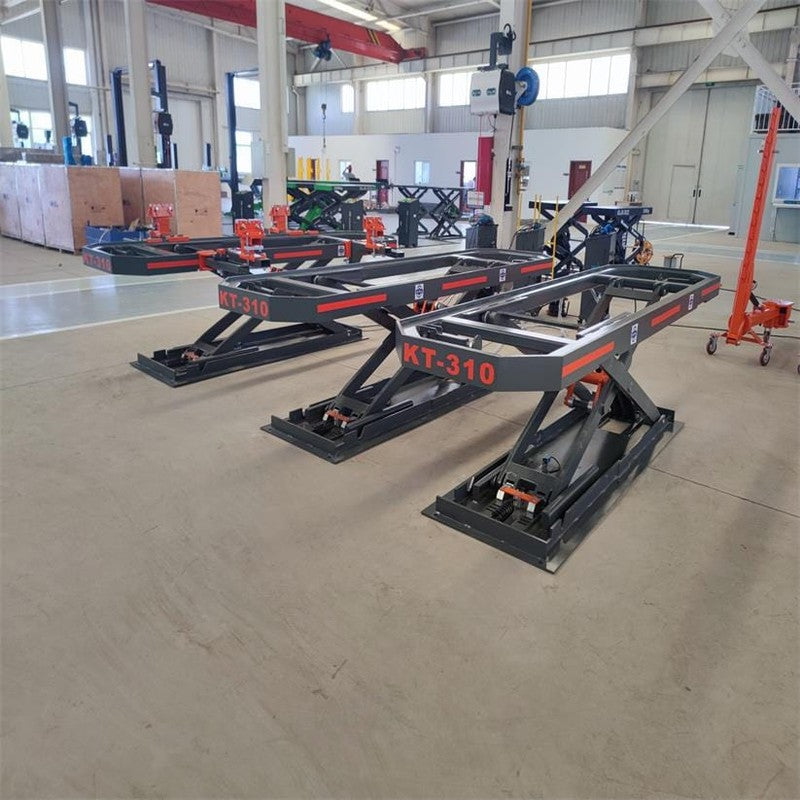

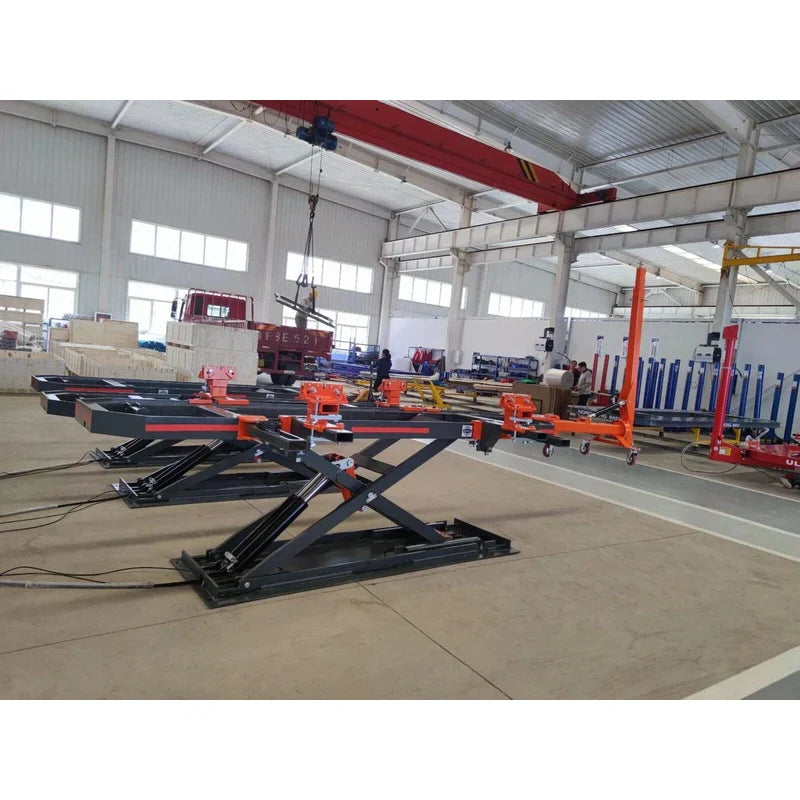

Heavy-duty bench frame designed for small to medium collision repairs with a compact footprint. Cold high-alloy rectangular steel tube construction and reinforced welds deliver consistent structural alignment. 130.8 in frame length and 34.5 in width provide a stable base while a 4.3–67 in adjustable height range enables diverse vehicle support. Integrated towers offer 60 kN pulling force and 360° working range for controlled straightening and panel alignment. Lifting arms rotate 180° and the nine-grade locking system secures multiple lift positions for repeatable operations. Quick-fit clamp jaws and adjustable heavy-duty main clamps speed fixture changes and reduce setup time. 4.33 in drive-on clearance eases vehicle positioning and the bench supporter aids precise tower installation. Rated for 7000 lb maximum load and CE certified for structural compliance during standard repair procedures. Supplied accessories include bench supporter, adjustable clamps and quick-fixed jaws to streamline setup. Designed for workshop efficiency, the machine reduces repair time while maintaining controlled pulling accuracy.
Features
- CE certified
- 110mm drive on height
- Flexible moving tower, quick fixing, and wide working area, durable pulling power with 60KN
- 9-grade locking system to reach different heights
- Special design for jaws: quick fixed clamp jaws with only two screws

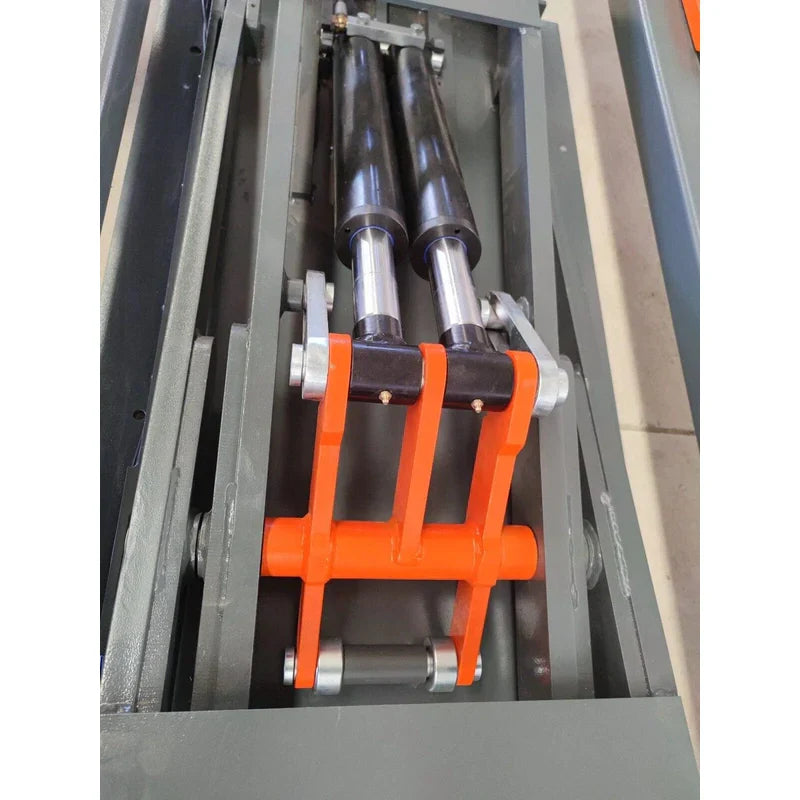

- Four adjustable lifting arms can rotate 180 degrees when the bench is used as a scissor lift, which is designed to lift nearly all kinds of vehicles
- Equipped with bench supporter to find the exact height to install the pulling towers

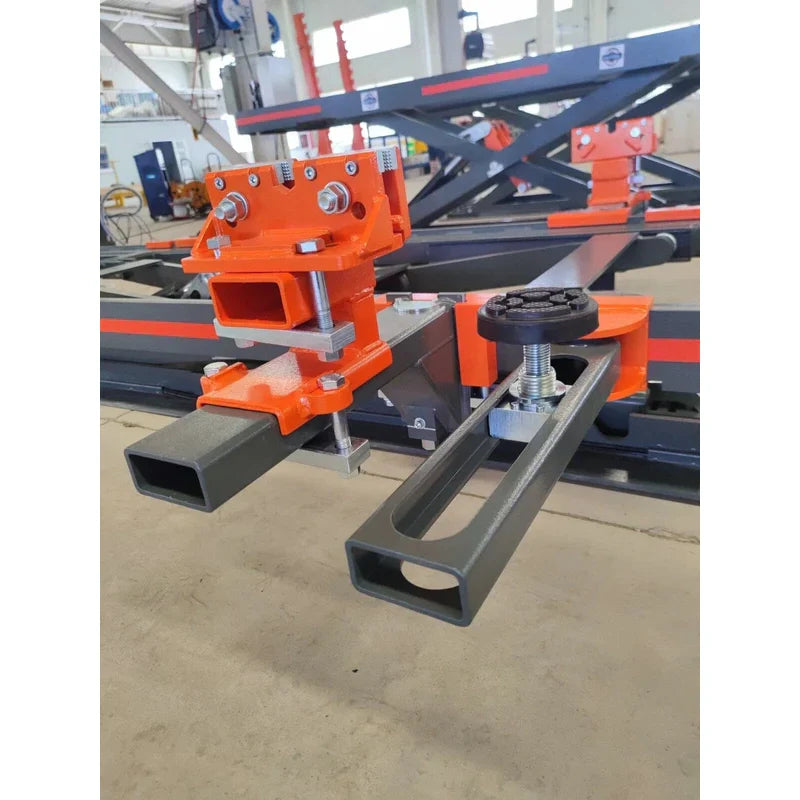

- Adjustable heavy-duty main clamps are easy to install and remove
-
Fast repair for small and medium vehicles. The model helps save valuable space in shops and is low-cost
Specifications
| Material | Cold high-alloy rectangular steel tube construction |
| Frame Length | 130.8 in |
| Frame Width | 34.5 in |
| Height Range | 4.3–67 in |
| Drive-on Height | 4.33 in |
| Max Load Capacity | 7000 lb (CE certified) |
| Max Pulling Force | 60 kN |
| Lifting & Installation | Four adjustable lifting arms rotate 180°; 9-grade locking system; 360° pulling tower working range |
| Inclusions | Bench supporter, adjustable heavy-duty main clamps, quick-fixed clamp jaws, lifting arms |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
