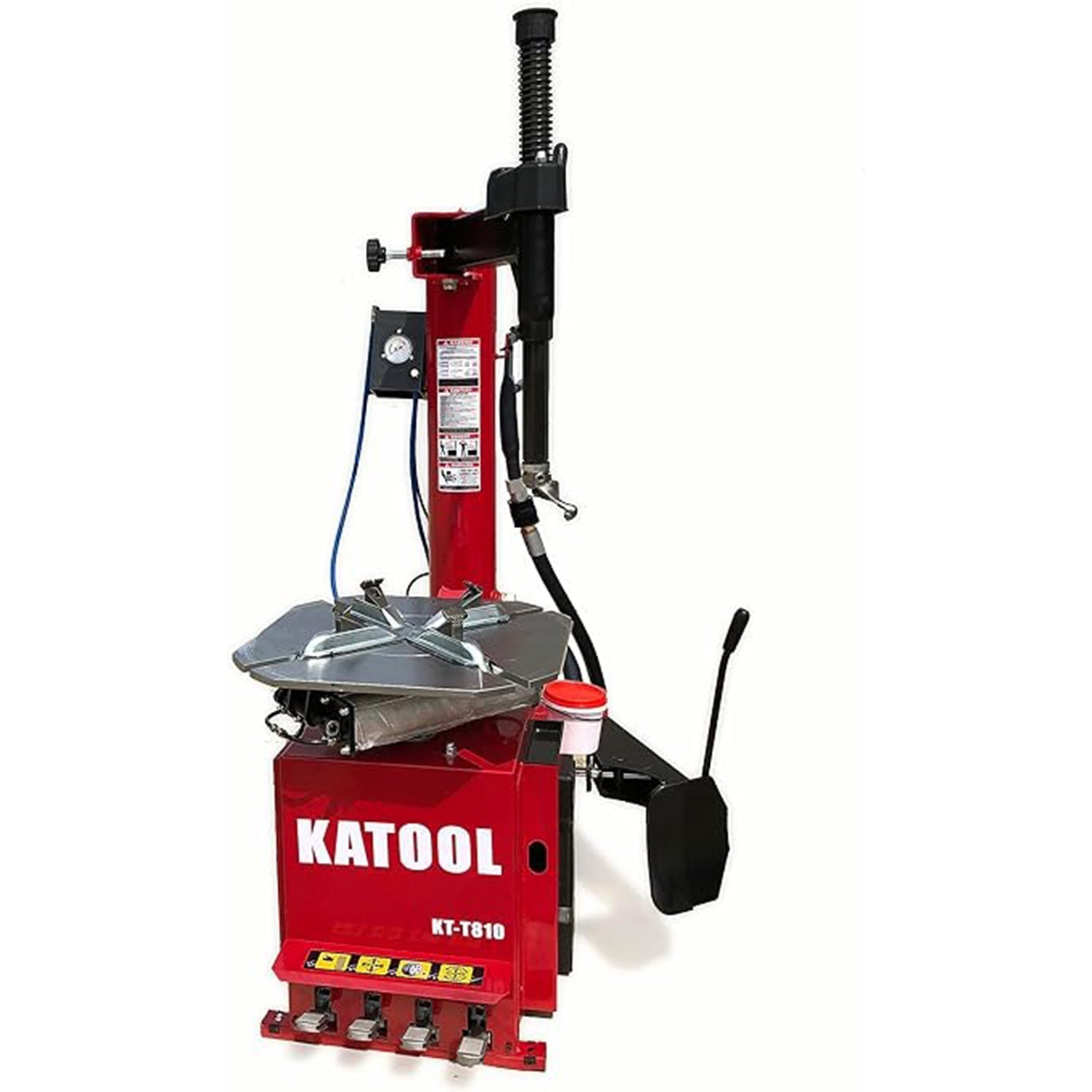

Katool KT-T810 Heavy-Duty Wheel Clamp Tire Changer Machine 2.0HP
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout

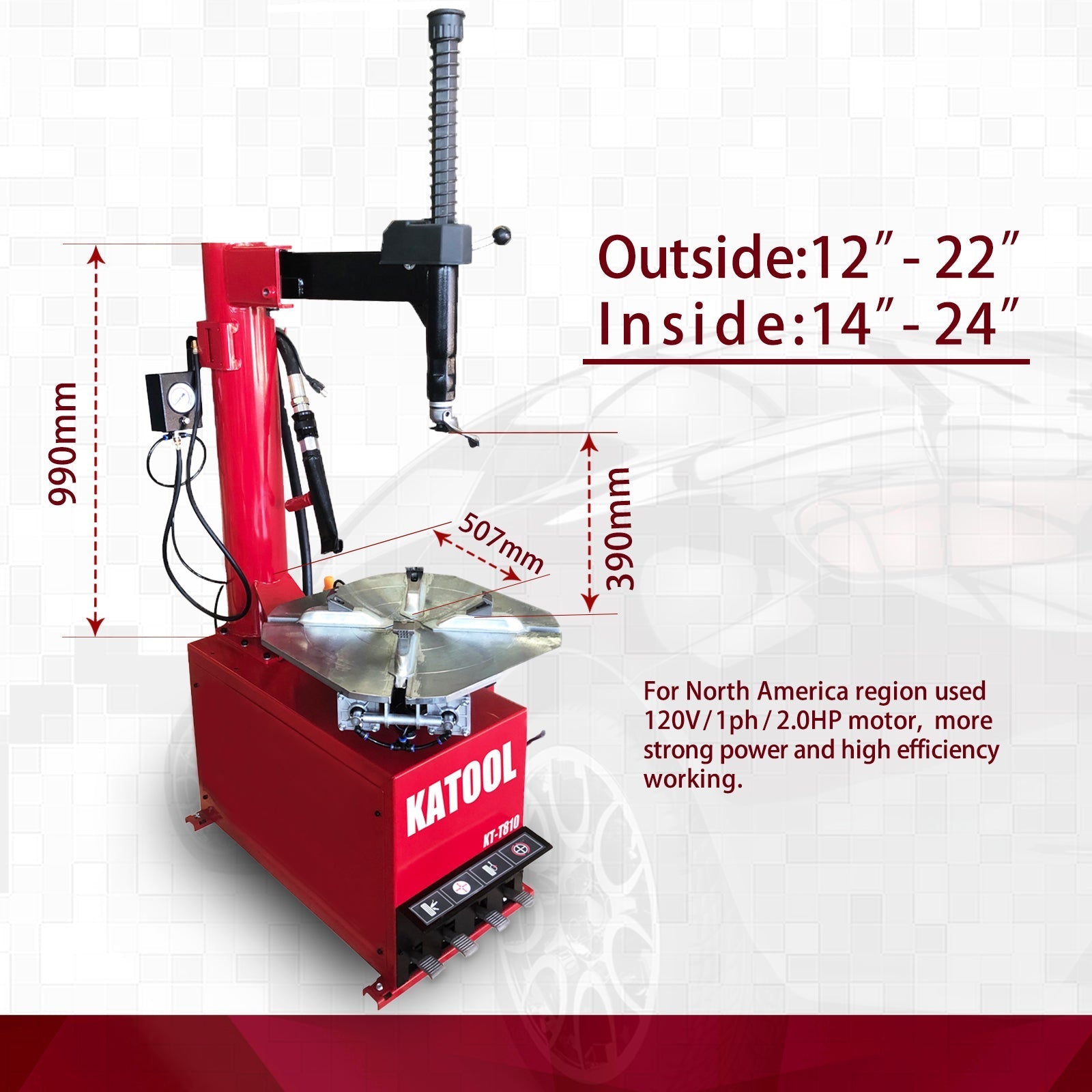

This heavy-duty tire changer is engineered for sustained shop use and frequent cycles. A 2.0 HP single-phase motor delivers steady torque for mounting and demounting most passenger wheels. The unit operates on standard 120 V power for compatibility with typical North American outlets. Alloy steel jaws are carburized and quenched for high clamping strength and abrasion resistance. The closed-body cabinet protects internal components from dust and road debris in busy bays. A stainless steel mounting head with protective plastic covers reduces the risk of rim damage. Inside and outside clamp ranges span 12–22 inches outside and 14–24 inches inside to fit varied rims. The machine accepts wheels up to 41 inches in diameter and up to 15 inches wide. Pedal-controlled inflation and pull-type pedals free both hands for safer bead seating. An integrated bead blast seater with a post tank accelerates seating of stubborn beads. The pneumatic system includes a filter and lubricator to maintain smooth actuator performance. Rotation speed is rated at approximately 6.8 revolutions per minute for controlled operation. Recommended supply air pressure ranges from about 116 to 145 psi for consistent pneumatic response. Controls are arranged for ergonomic use to reduce operator fatigue during repetitive tasks. Protective covers and chamfered tooling surfaces minimize cosmetic damage to alloy wheels. Robust construction reduces maintenance intervals and supports long service life under high duty. The machine’s footprint and mass provide stability during heavy torque and bead blasting cycles. Serviceable components are accessible, simplifying periodic checks and replacements. The design supports both mobile service setups and fixed shop installations. Quick clamp adjustments eliminate the need for multiple adapters when switching rim sizes. The closed-body layout simplifies cleaning and shields pneumatic parts from contaminants. A clear, pedal-based workflow speeds throughput in high-volume tire operations. Heavy-duty bearings and hardened interfaces ensure repeatable alignment and clamping accuracy. The mounting head design and tooling minimize manual prying and protect operator hands. The unit is suitable for cars, light trucks, and many passenger vehicle wheels. Replacement parts and service routines follow conventional tire changer maintenance practices. Installation requires a dedicated 120 V circuit and an adequate shop air supply. Routine lubrication of the filter-lubricator and periodic inspection of clamps extend component life. The package includes the bead seater, pedestal, pedals, and standard mounting tooling. Professional shops will appreciate the balance of performance, durability, and straightforward operation.
Features

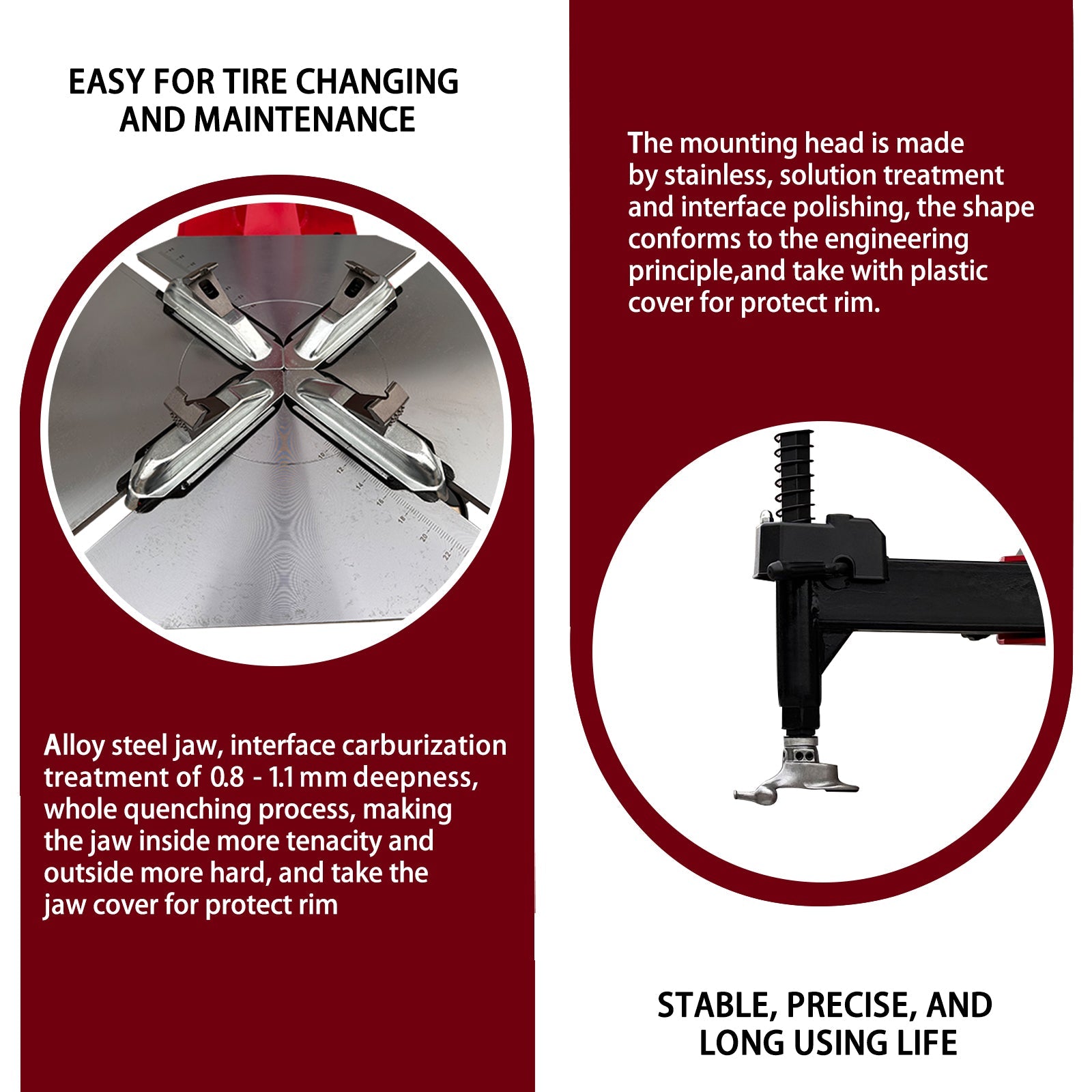

- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim
- The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, and take with plastic cover for protect rim
- Inflation gauge with pedal control
- With high quality spade cover, effective prevent damage rim
- Pull type pedal control system, convenience for changing and maintenance
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
- Bead blast seater head with post tank
- With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system
- For North America region used 120V/1ph/2.0HP motor, stronger power and high efficiency working
- Closed body for protect inside parts well.
Specifications
| Chassis material | Heavy-duty alloy steel with carburized and quenched components |
| Mounting head material | Stainless steel mounting head with protective plastic covers to prevent rim damage |
| Jaw material | Hardened alloy steel jaws for high clamping strength and wear resistance |
| Max wheel diameter | 41 in (1040 mm) |
| Max wheel width | 15 in (380 mm) |
| Outside clamp range | 12–22 in |
| Inside clamp range | 14–24 in |
| Motor & power | 2.0 HP single-phase motor, 120 V 1PH (1.5 kW nominal) |
| Pneumatics & air pressure | Built-in pneumatic system with filter-lubricator; recommended 116–145 psi supply |
| Net weight | 549 lb (249 kg) |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
