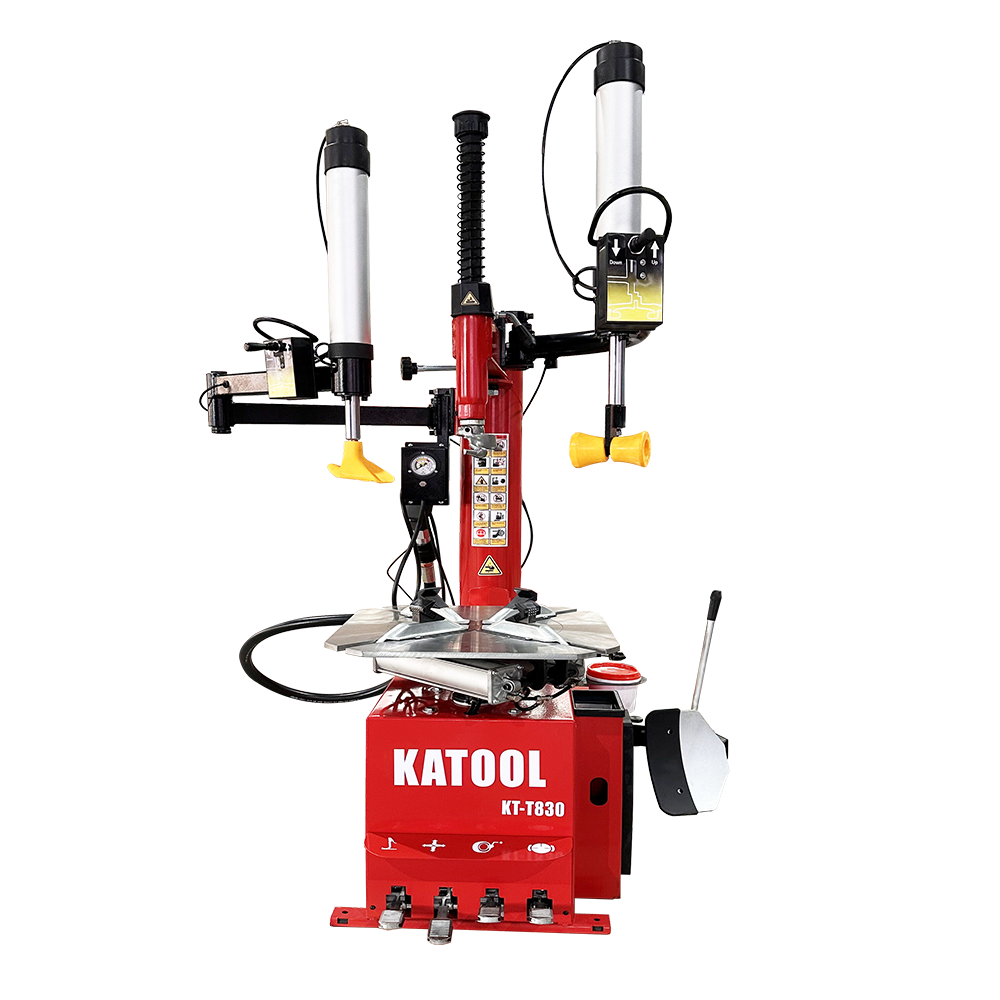

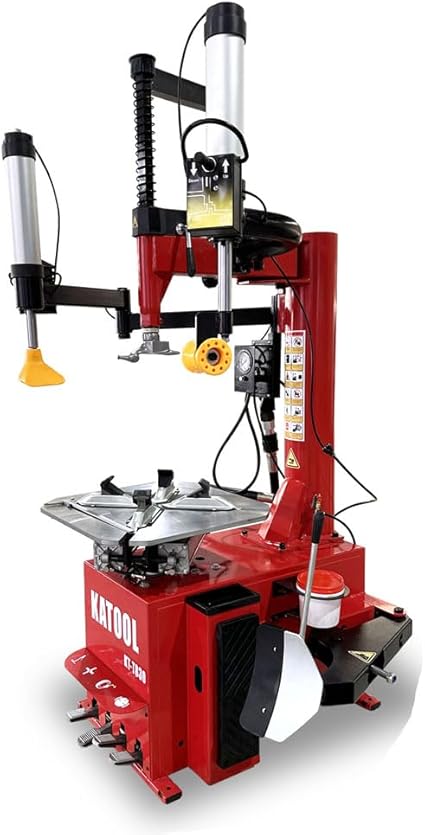

Katool KT-T830 Wheel Clamp Tire Changer Machine 41in Capacity
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout

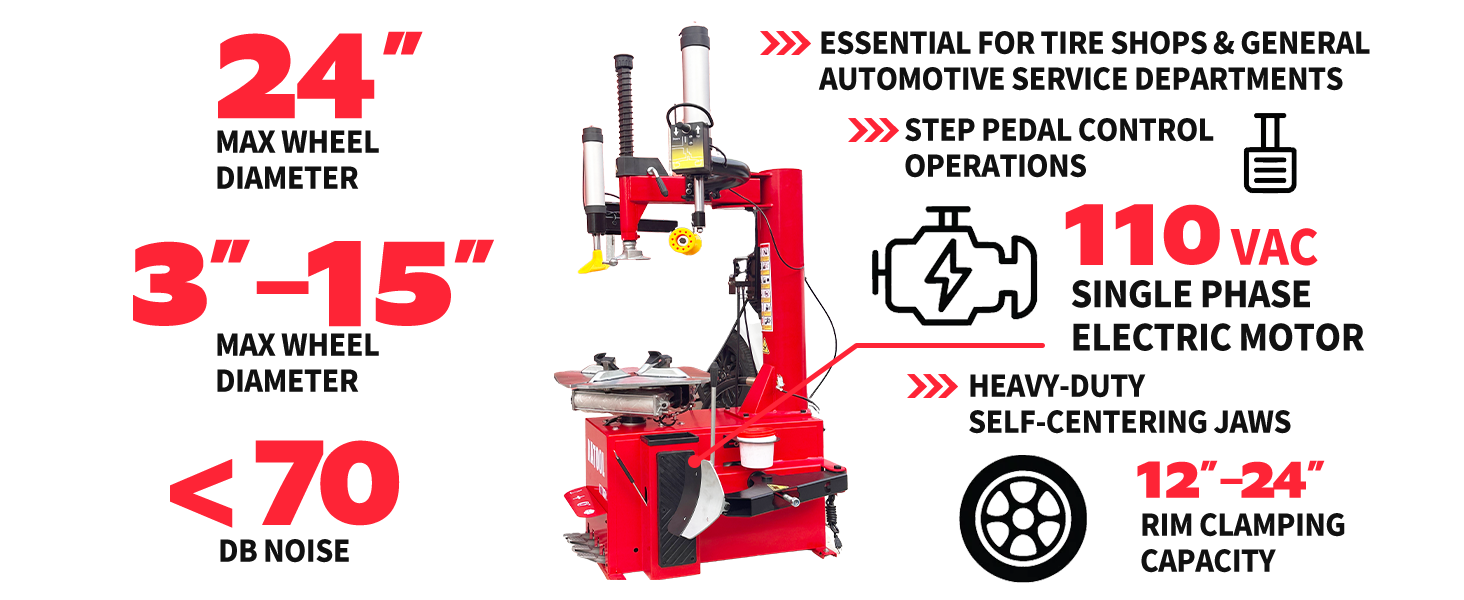

Heavy-duty wheel-clamp tire changer built for professional automotive shops and service bays. Alloy steel jaws are carburized 0.8–1.1 mm and fully quenched to combine a hardened exterior with tenacious interior strength. The stainless-steel mounting head receives solution treatment and precision polishing and is fitted with a plastic cover to protect rim finishes. Foot-controlled inflation gauge and pull-type pedal control simplify bead seating and routine tire mounting tasks. Protective spade cover and a high-quality lubricator reduce rim damage and extend pneumatic component life. The integrated motor uses pure copper windings and delivers 2.0 HP (1.5 kW) torque for steady rotation under load. Configured for North American service, the machine accepts 110V single-phase power and operates at approximately 6.8 RPM. Bead seater with post tank and double side assist arms enable controlled seating on low-profile and larger-diameter wheels. The bead breaker uses a 186 mm (7.32 in) stainless cylinder to apply consistent break force on stubborn beads. Clamping covers outside diameters 12–22 in and inside diameters 14–24 in, supporting rims up to 41 in and 15 in wide. Recommended operating air pressure is 116–145 psi for reliable pneumatic response. The closed body protects internal components and simplifies maintenance access. Freight delivery is required for most shipments; allocate forklift or dock unloading and inspect delivery before signing. The unit is suitable for passenger, light-truck and many commercial wheel sizes encountered in regular shop throughput. Basic mounting accessories and documentation are provided to support initial setup and operation.
Features
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
- The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim
- Inflation gauge with pedal control
- The high-quality spade cover effectively prevents the rim from being damaged

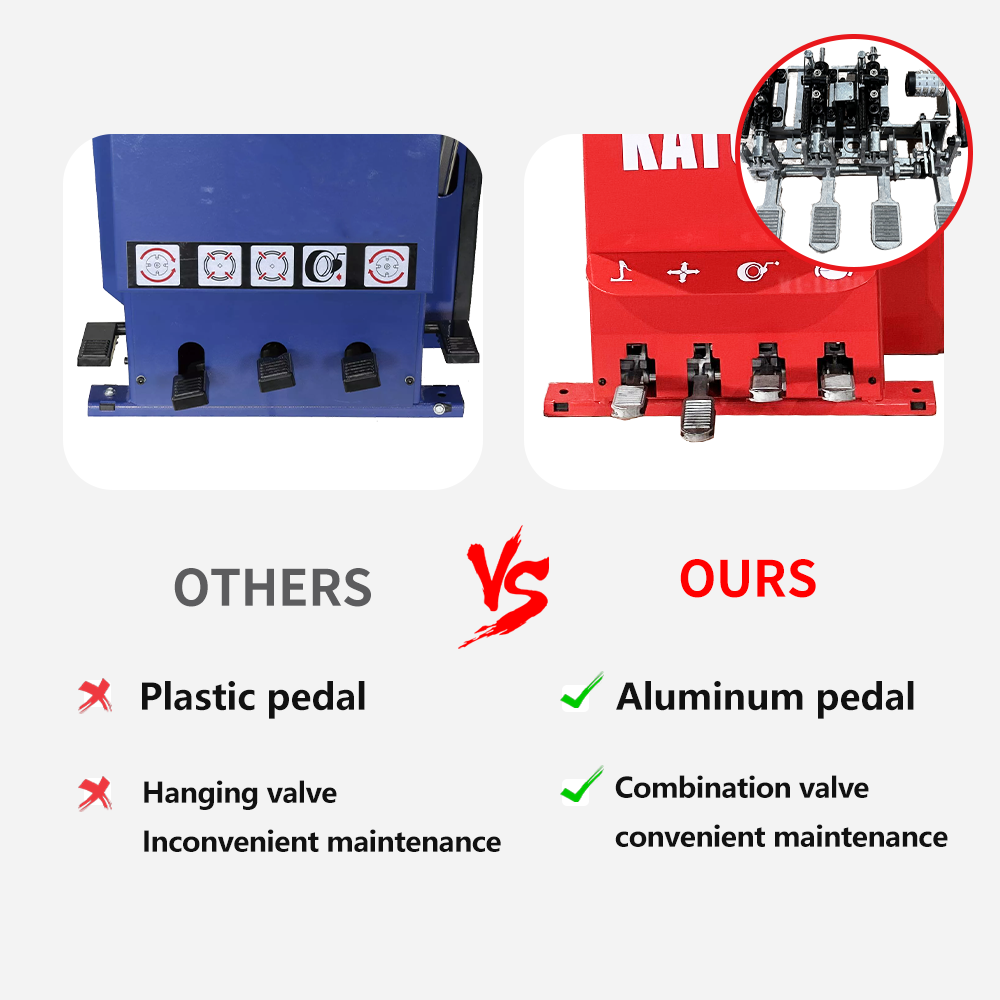

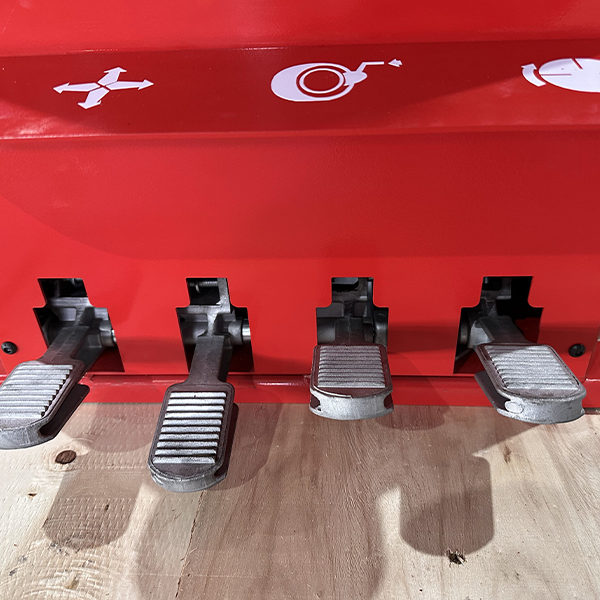

- Pull type pedal control system, easy for tire changing and maintenance
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life

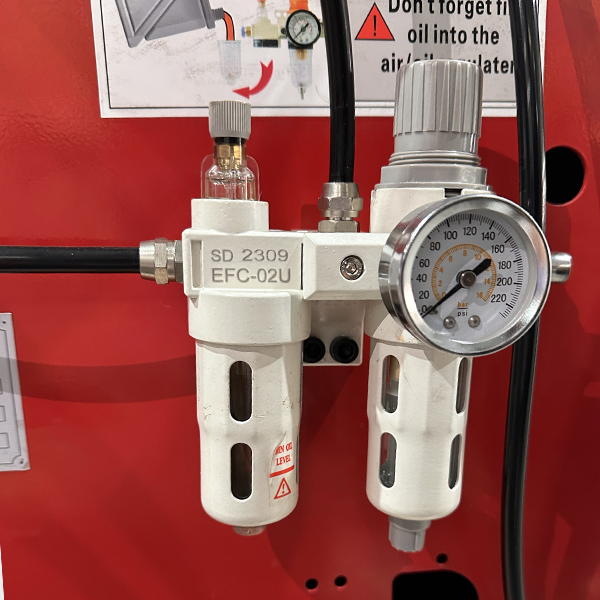

- The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended
- For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency
- Double side assist arm
- Bead blast seater head with post tank

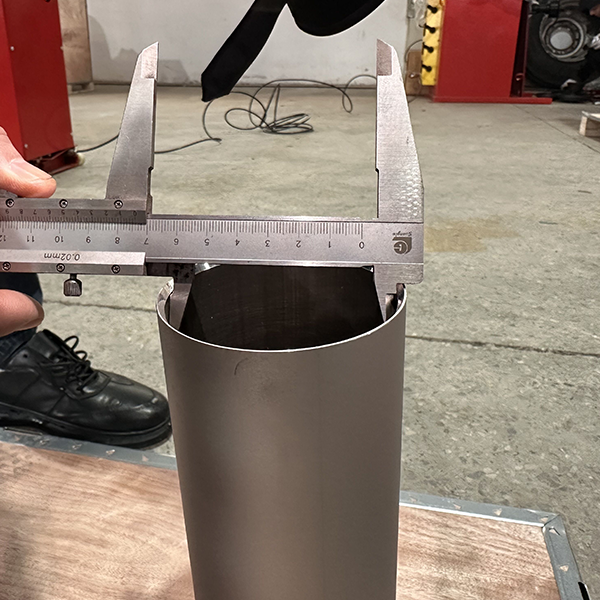

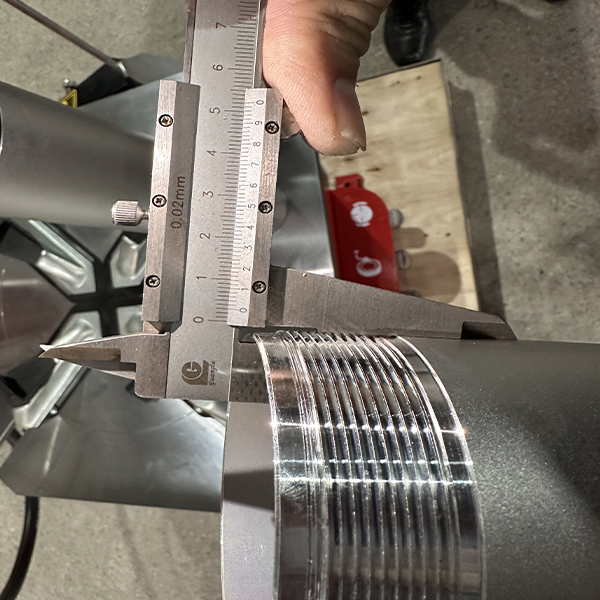

- 186mm / 7.32" stainless bead breaker cylinder
- Closed body for the protection of the parts inside
Specifications
| Jaw material | Alloy steel with carburization treatment 0.8–1.1 mm; full quenching |
| Mounting head | Stainless steel with solution treatment and polished interface; plastic protective cover |
| Motor | 2.0 HP (1.5 kW) motor with pure copper windings |
| Power supply | 110V, 1 phase (North America configuration) |
| Max wheel diameter | 41 in (1040 mm) |
| Max wheel width | 15 in (380 mm) |
| Clamp range (outside) | 12 in – 22 in |
| Clamp range (inside) | 14 in – 24 in |
| Bead breaker | 186 mm (7.32 in) stainless bead breaker cylinder |
| Recommended air pressure | 116–145 psi (0.8–1.0 MPa) |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
