Katool KT-H100 Two-Post Vehicle Lift 10,000 lb Capacity Commercial Garage Lift
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout
Robust two-post design provides a 10,000 lb lifting capacity for domestic and light commercial vehicles. Dual hydraulic chain-drive cylinders and symmetric arms deliver stable, balanced lifts under load. Maximum lift height is 70.75 inches with a 4.25 inch minimum pad height to accommodate low-clearance vehicles. Overall footprint measures 142.25 inches wide by 128.00 inches deep and 110.25 inches tall to fit standard garage bays. Manual two-sided safety release, feet-protection guardrails and rubber door-opening pads enhance technician safety during service. Includes extension support adapters (+1.18 in and +4.72 in), removable tool box and base-plate mounting design for secure installation. Top-level hydraulic power unit operates at 220V/60Hz/1PH with 110V option available as an add-on. CE approved with dynamic and static load testing; consult concrete requirements of minimum 5.9 inches thickness and 3000 PSI for installation. Net unit weight is 1,256 lb, shipped freight; buyers should prepare for receiving and unloading per shipping policy. Designed for professional workshops and serious DIYers requiring reliable, serviceable lifting for routine maintenance and repairs.
Features
- 10000lbs lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested

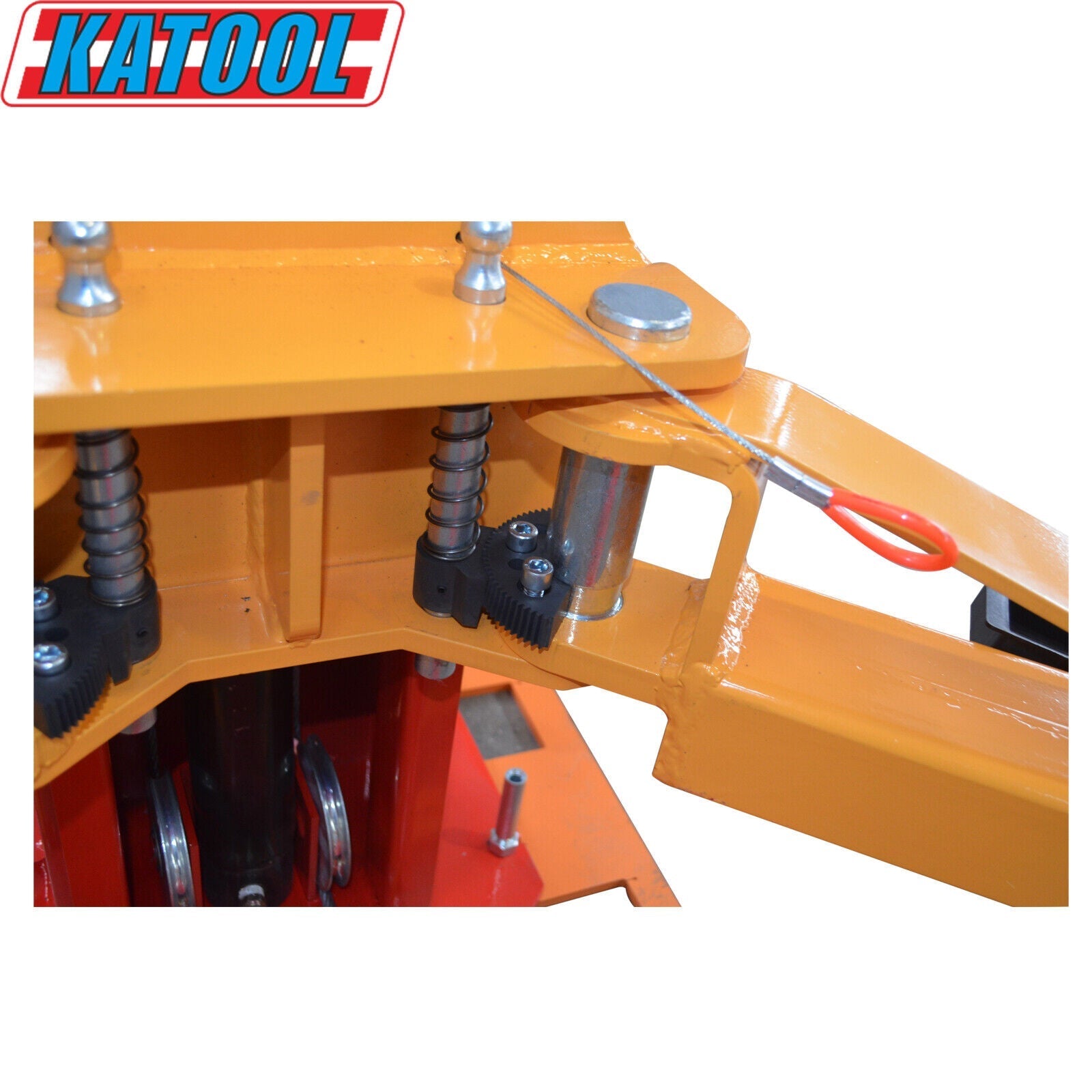

- Manual safety release from two sides

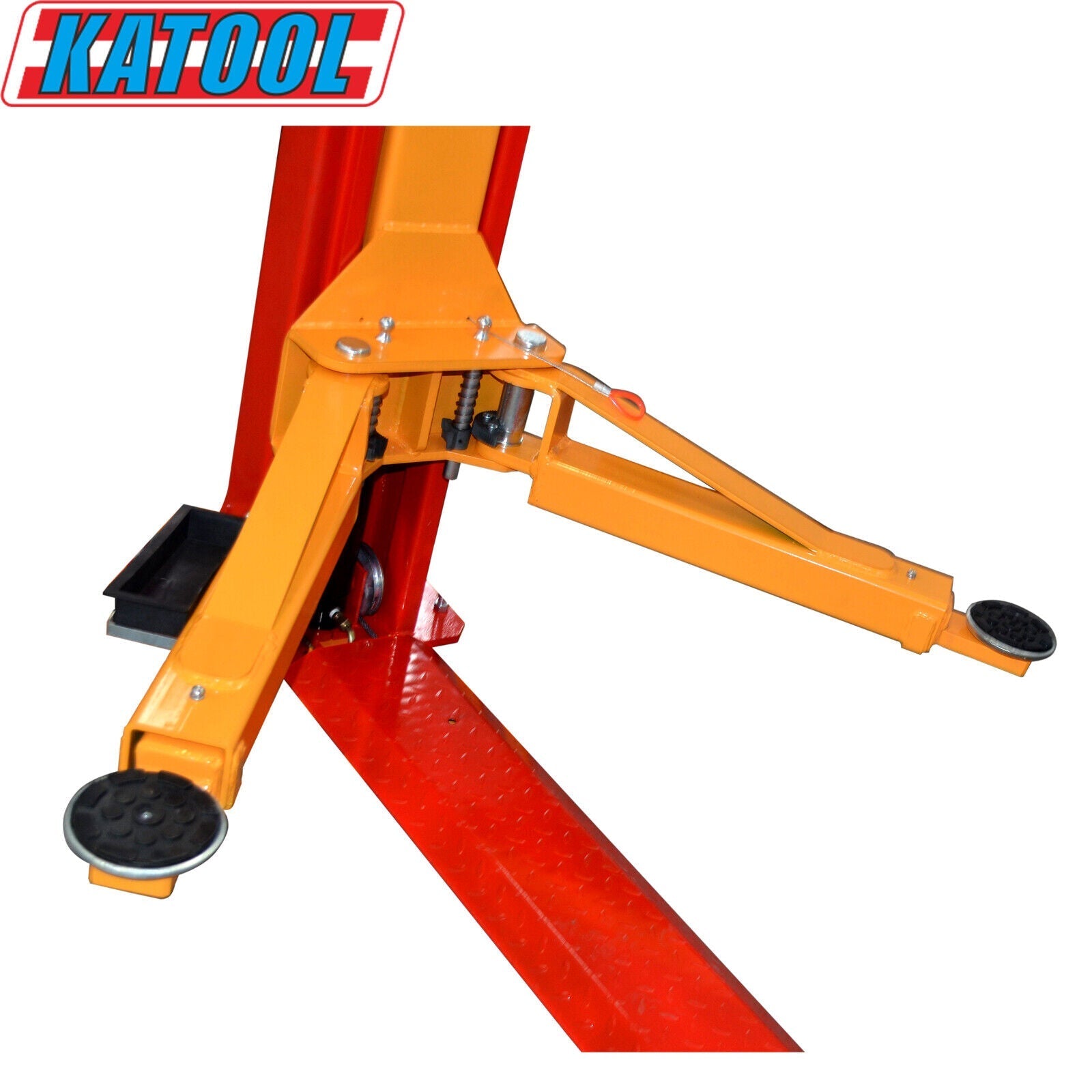

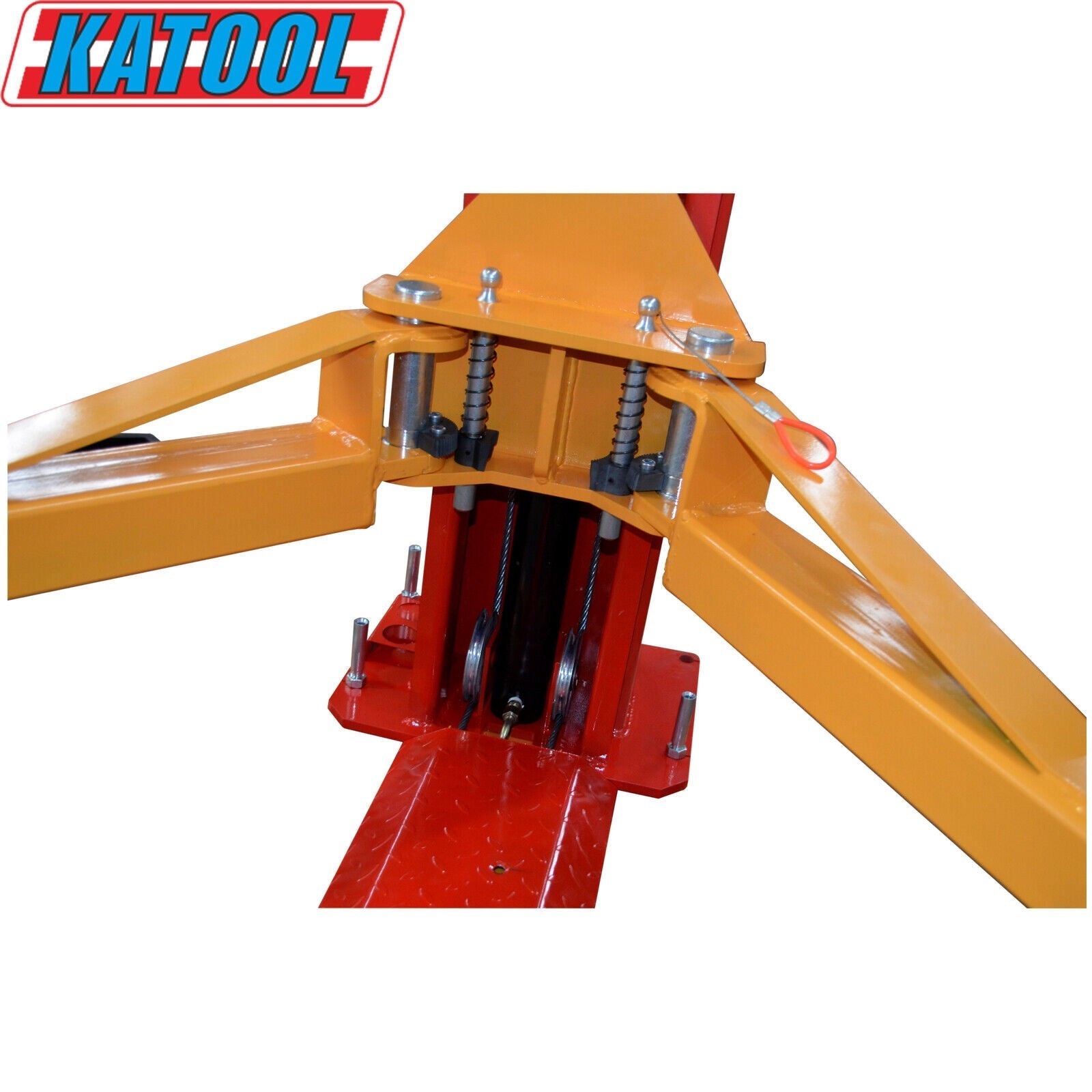

- Symmetric arm
- Base plate design
- Dual Hydraulic Chain-Drive Cylinders
- Rubber pad door opening protection
- Comes with extension support adaptor sets of +30mm and +120mm
- Feet-protection safety guardrails with tools box
- Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH (Optional)
Specifications
| Construction material | Welded heavy-duty steel frame |
| Finish | Protective powder-coat finish |
| Lifting capacity | 10,000 lb / 4,500 kg |
| Max lifting height | 70.75 in (1800 mm) |
| Minimum pad height | 4.25 in (110 mm) |

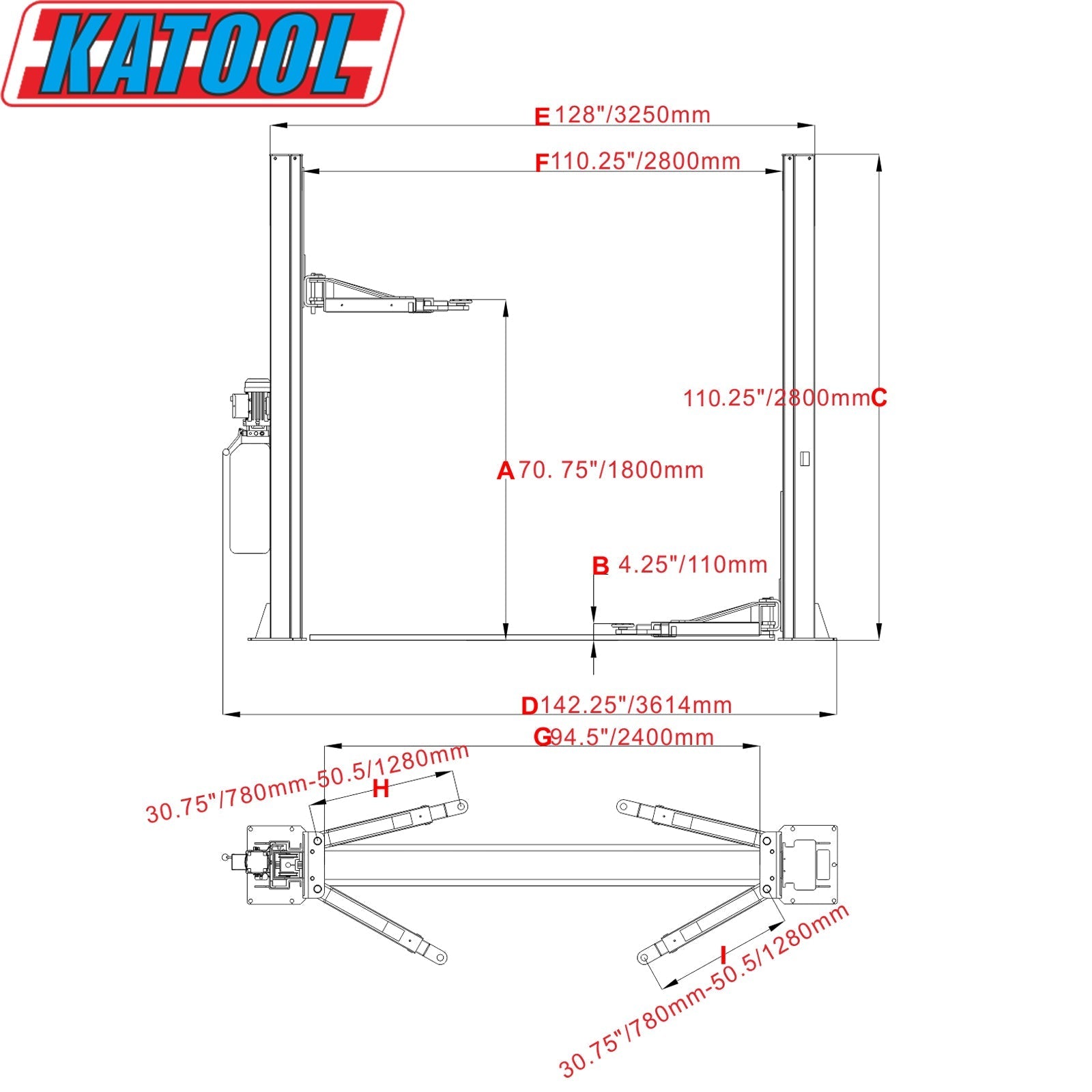

| Overall footprint (W x D x H) | 142.25 in x 128.00 in x 110.25 in |
| Arm reach (front / rear) | Min 30.75 in — Max 50.5 in (two-stage arms) |
| Power / motor | 220 VAC / 60 Hz / 1 PH power unit (2.2 kW); 110V option available (add-on) |
| Inclusions & safety | Manual two-side safety release, rubber door pads, feet-protection guardrails, extension adapters +1.18 in & +4.72 in, tool box, base plate design, CE certified |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
