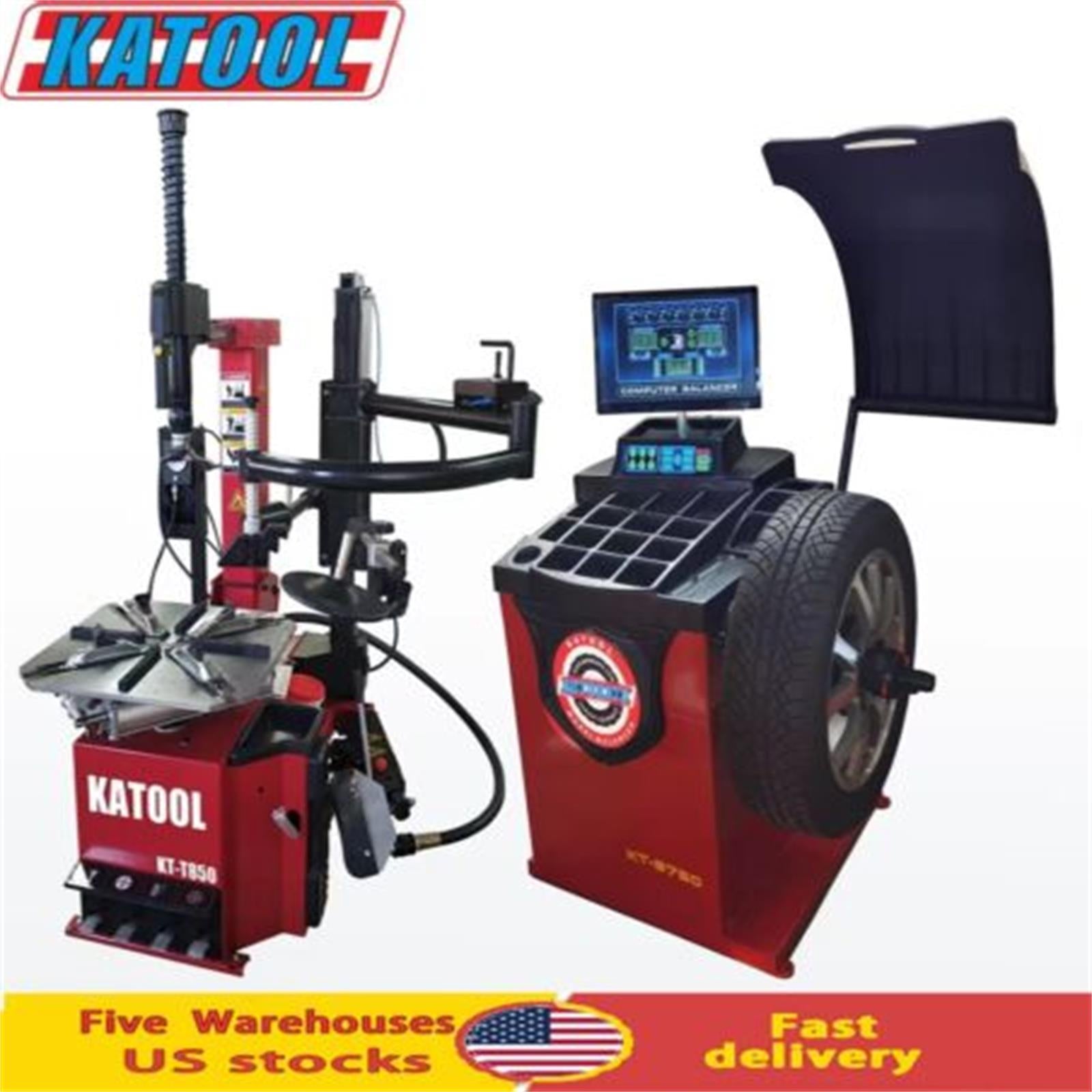

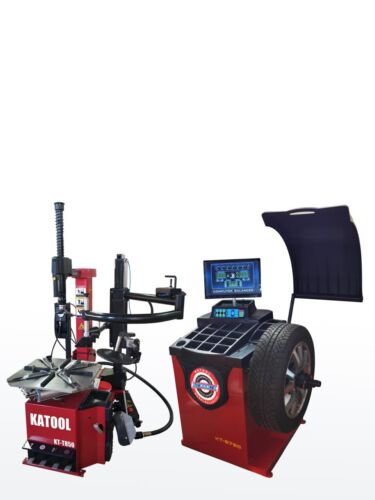

Katool KT-T850 Tire Changer and KT-B750 Wheel Balancer Combo
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout
Heavy-duty construction uses carburized alloy-steel jaws and a stainless mounting head for rim protection and repeated service. The tire changer handles wheels up to 47 in diameter and 15 in width with outside clamp 14–26 in and inside clamp 16–28 in, covering most passenger and light truck rims. A 2.0 HP copper-wound motor and efficient pneumatic system deliver steady rotation and reliable bead seating for fast tire swaps. Wheel balancing unit accepts rims under 30 in diameter and wheel widths from 3 to 12 in with 180 rpm spin and ±1 g balancing precision. Control features include pull-type pedal operation on the changer and automatic measurement input on the balancer to reduce setup time and errors. Durable filters, sealed bearings and quench-treated shafts extend service life and reduce downtime in high-volume shops. Included accessories simplify installation and operation: assist arms, bead-blast seater, aluminum bead breaker cylinder and rim-protective spade covers. Both machines are designed for 110V single-phase power and require shop air at 116–145 psi for pneumatic functions. Freight-only shipping and forklift unloading are recommended due to equipment weight and crate size. Twelve-month parts warranty is provided for each unit; recommended professional installation and routine maintenance preserve performance.
Features

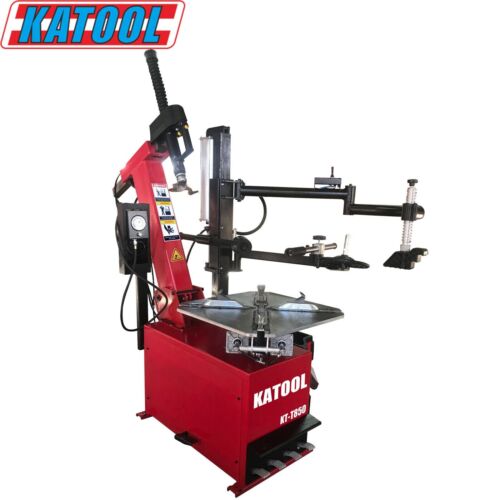

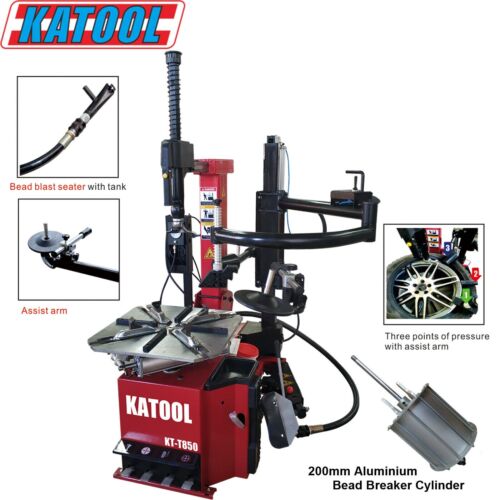

KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
- The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim
- The high-quality spade cover effectively prevents the rim from being damaged
- Pull type pedal control system, easy for tire changing and maintenance
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life
- The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended
- For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency
- Equipped with assist arms
- Bead blast seater
- 200mm aluminum bead breaker cylinder

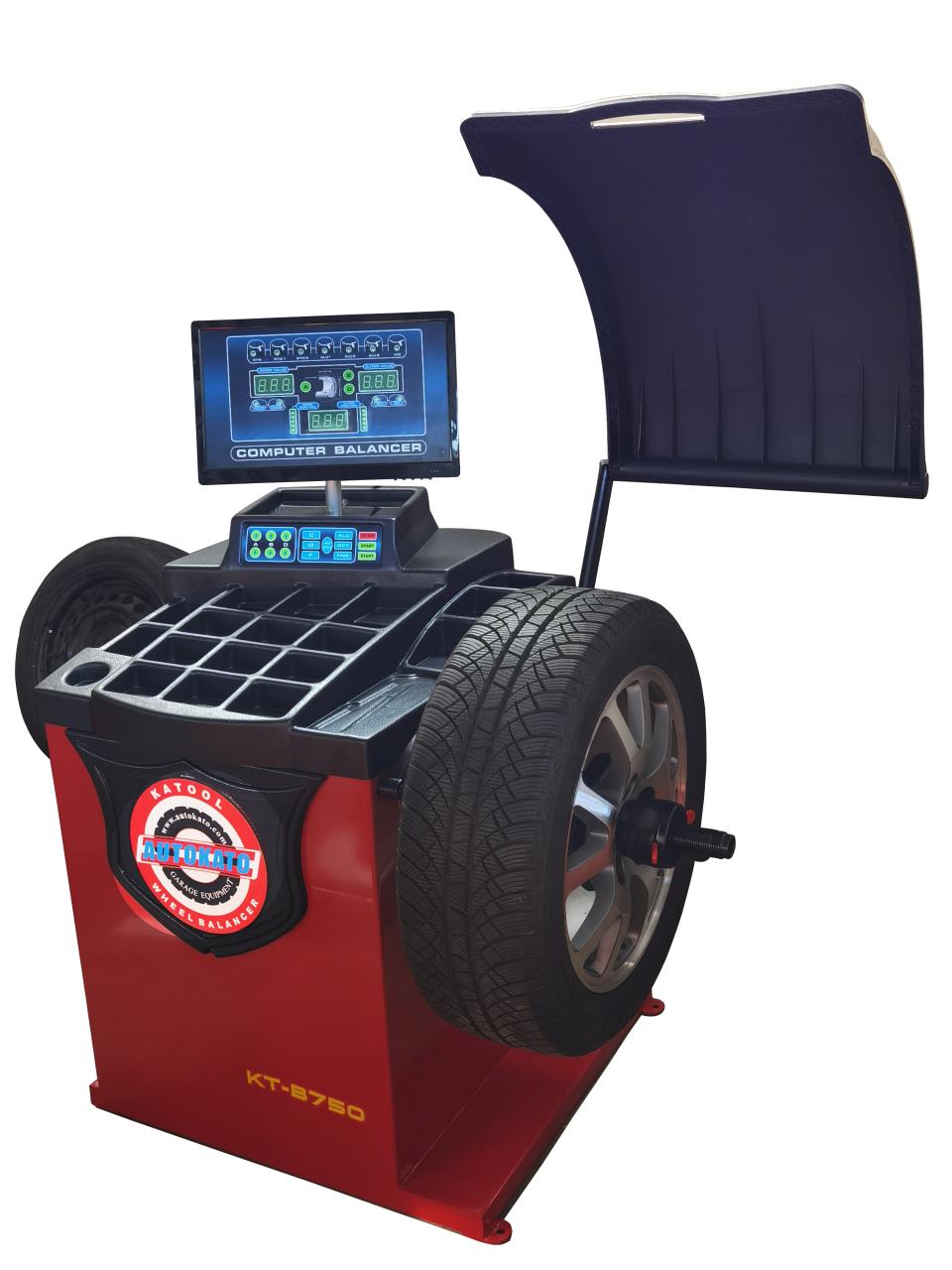

KT-B750 Wheel Balancer
- Automatic measurement ruler for auto input A and D values
- The body use 3mm thickness steel, high strength, solid welding, few vibration
- All-in-one pressure sensor support design, bottom board thickness 8mm, side board thickness 8mm, that insure the sensor working stable and high precision
- Top level motor and pure copper winding, more power, fast heat dissipation, low defect rate and longer using life
- The 36mm shaft thread is by quenching treatment, high strength
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
- The computer board adopt advanced welding technology, moisture proof, dustproof and anti-static electricity, more longer life
- Various balance mode, according different rim for different balance mode, make the balance effect more precision
- Built-in fault diagnosis and self calibration program that double side calibration, no memory parameters, operation more easy
- Unit selection(Ounce/Gram, MM/Inch)
- High quality integration power board, working stable and reliable
- Wheel guard for optional
- Longer shaft for more width wheels
Specifications
KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine
|
Max Wheel Diameter :
|
47"/1200mm
|
|
Max Wheel Width :
|
15"/380mm
|
|
Outside Clamp:
|
14"-26"
|
|
Inside Clamp :
|
16"-28"
|
|
Power Supply:
|
110V 1PH
|
|
Motor Power:
|
2.0HP/1.5KW
|
|
Rotation Speed :
|
6.8r/min
|
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi)
|
|
Net weight :
|
340KG / 750 lbs
|
KT-B750 Wheel Balancer
|
Rim Diameter:
|
<30"
|
|
Wheel Width:
|
3"-12"
|
|
Wheel Diameter:
|
<880mm
|
|
Balancing Speed:
|
180rpm
|
|
Power Supply:
|
110V 1PH
|
|
Motor Power:
|
0.25KW
|
|
Rim Center Hole Dia.:
|
<135mm
|
|
Wheel Weight:
|
<65KG
|
|
Balancing Accuracy:
|
±1g
|
|
Measuring Time:
|
7S
|
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
