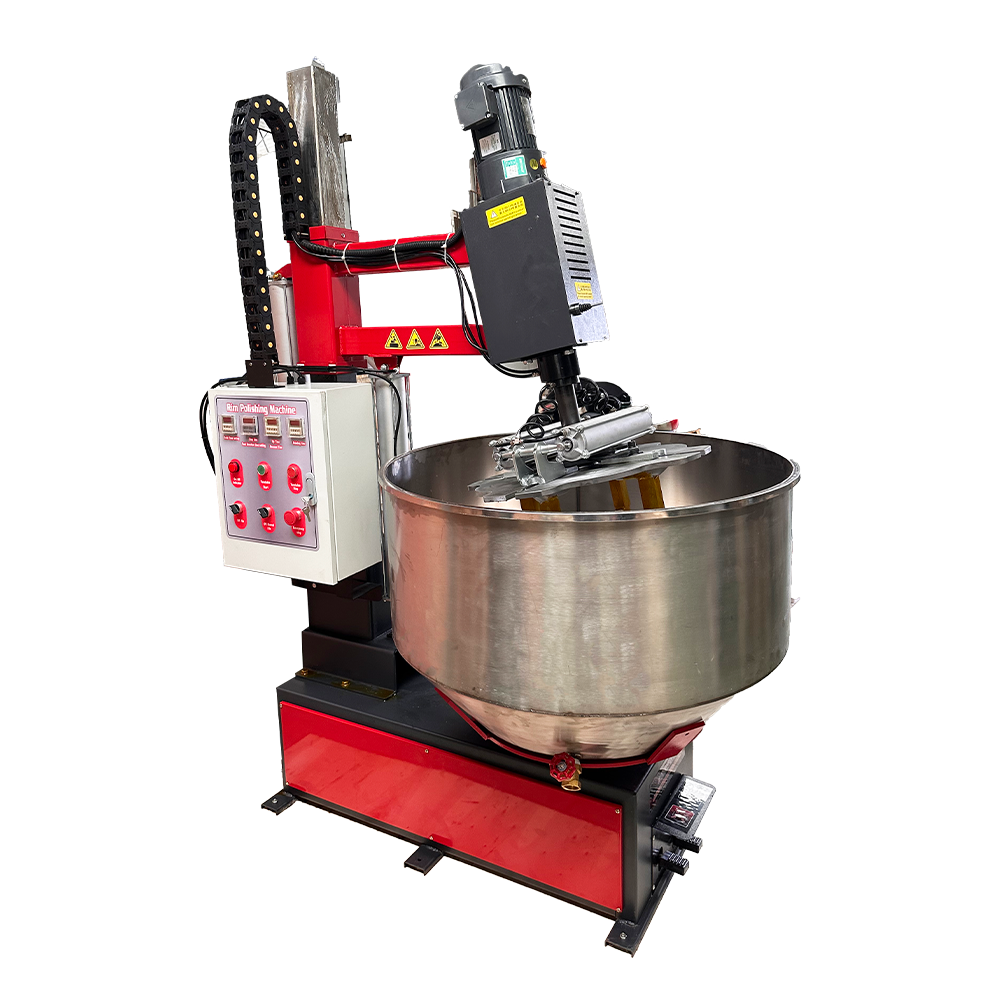

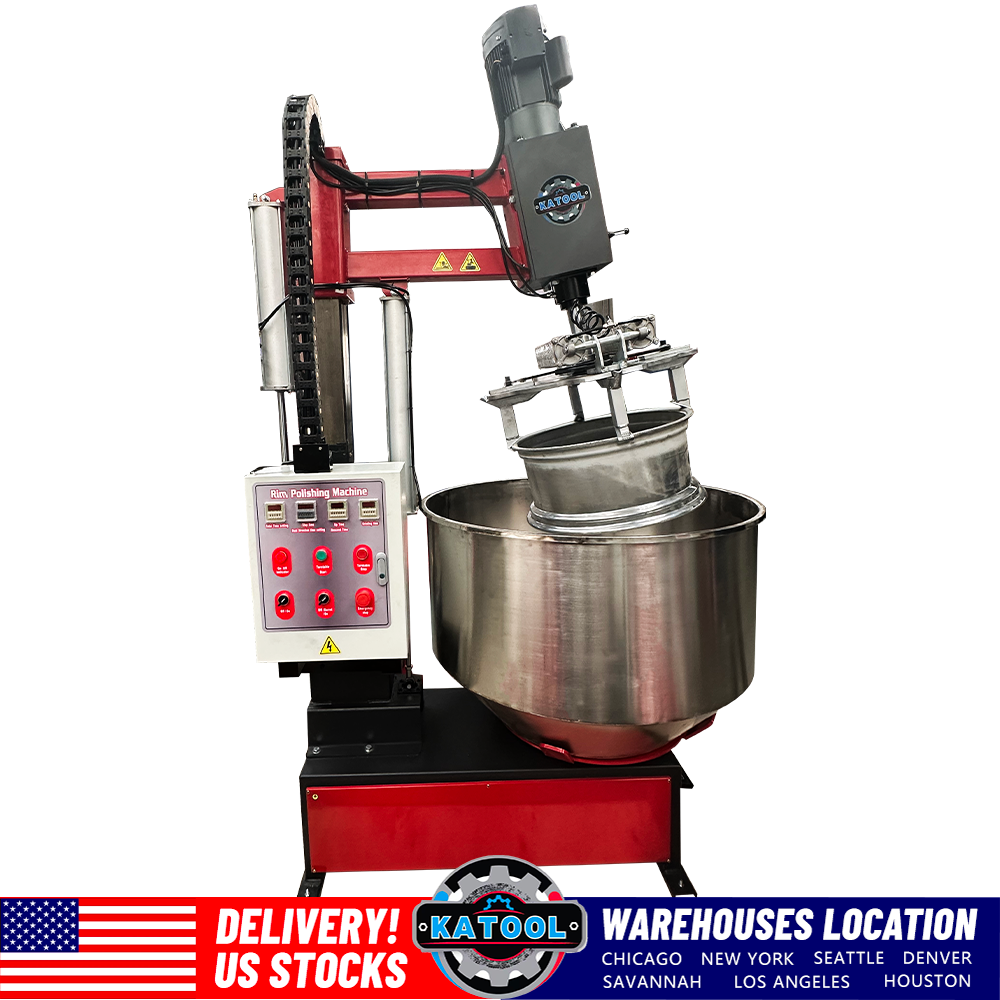

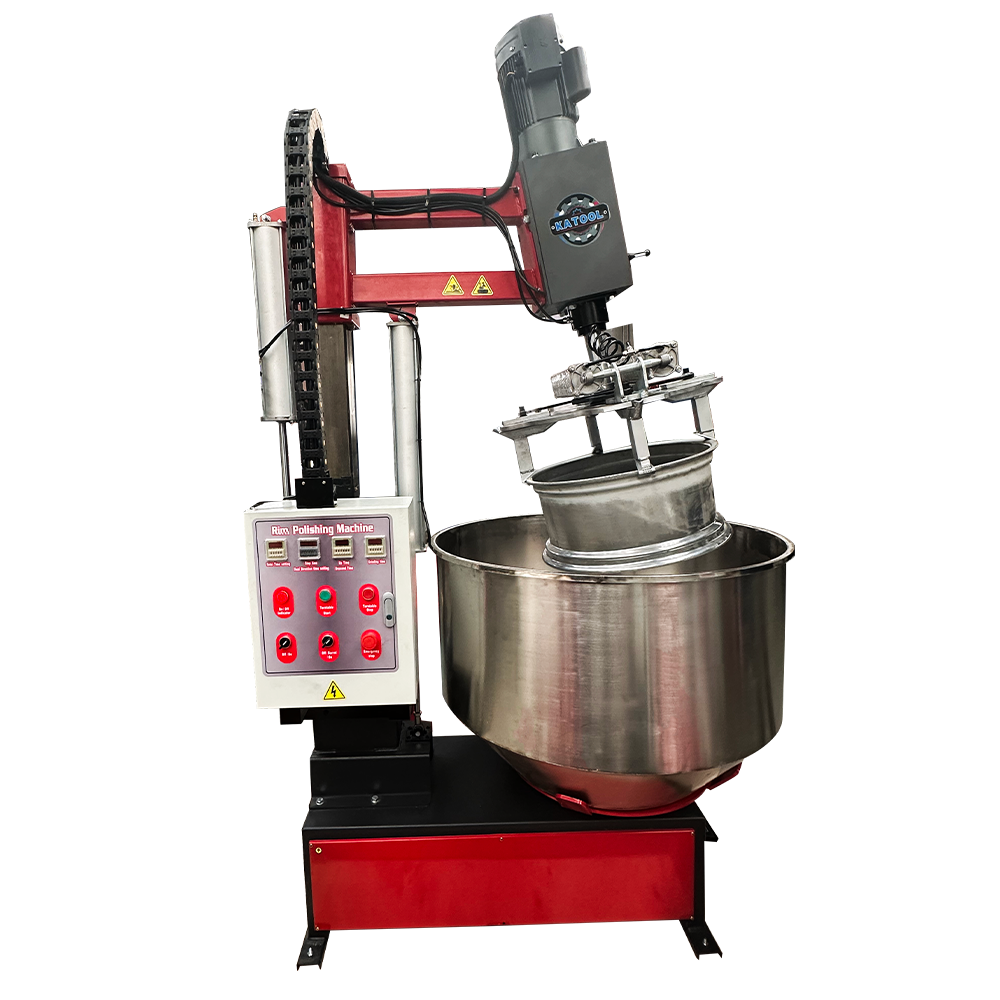

Katool KT-RPM80 Rim Polishing Wheel Cleaning and Grinding Repair Machine
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout

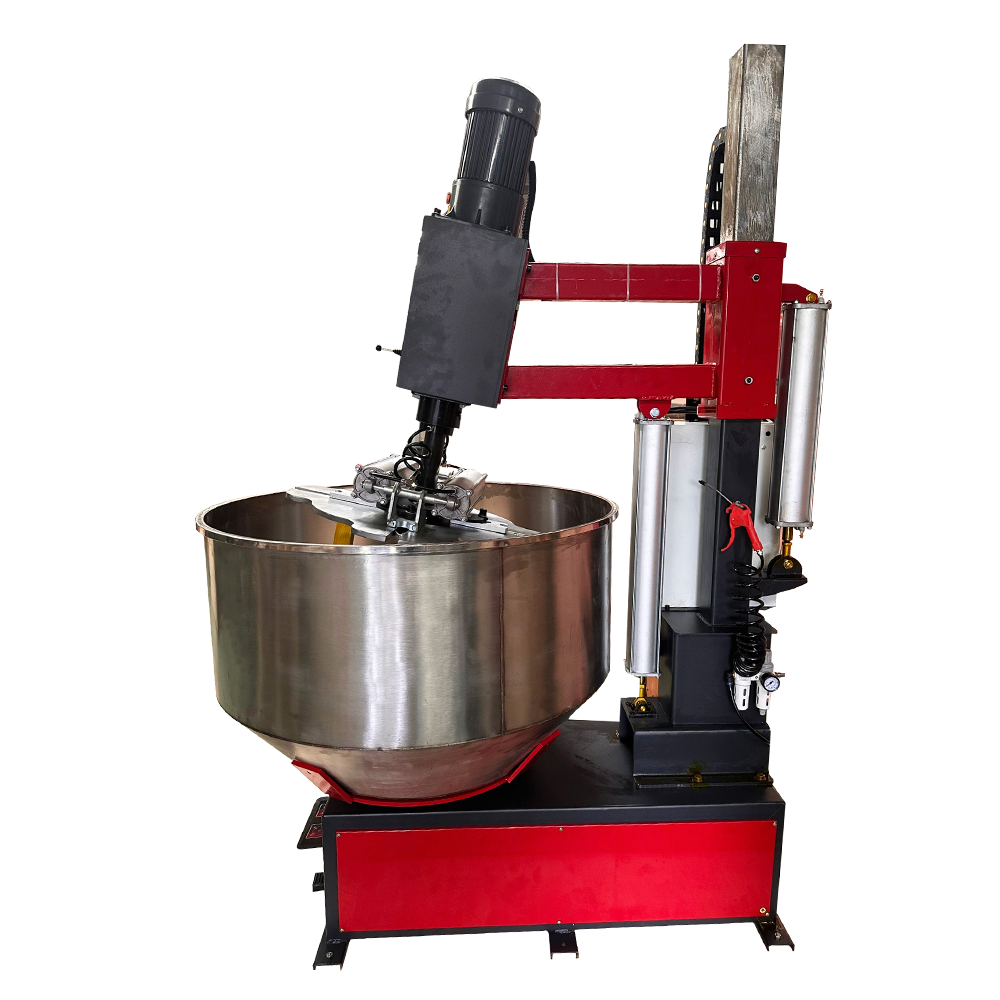

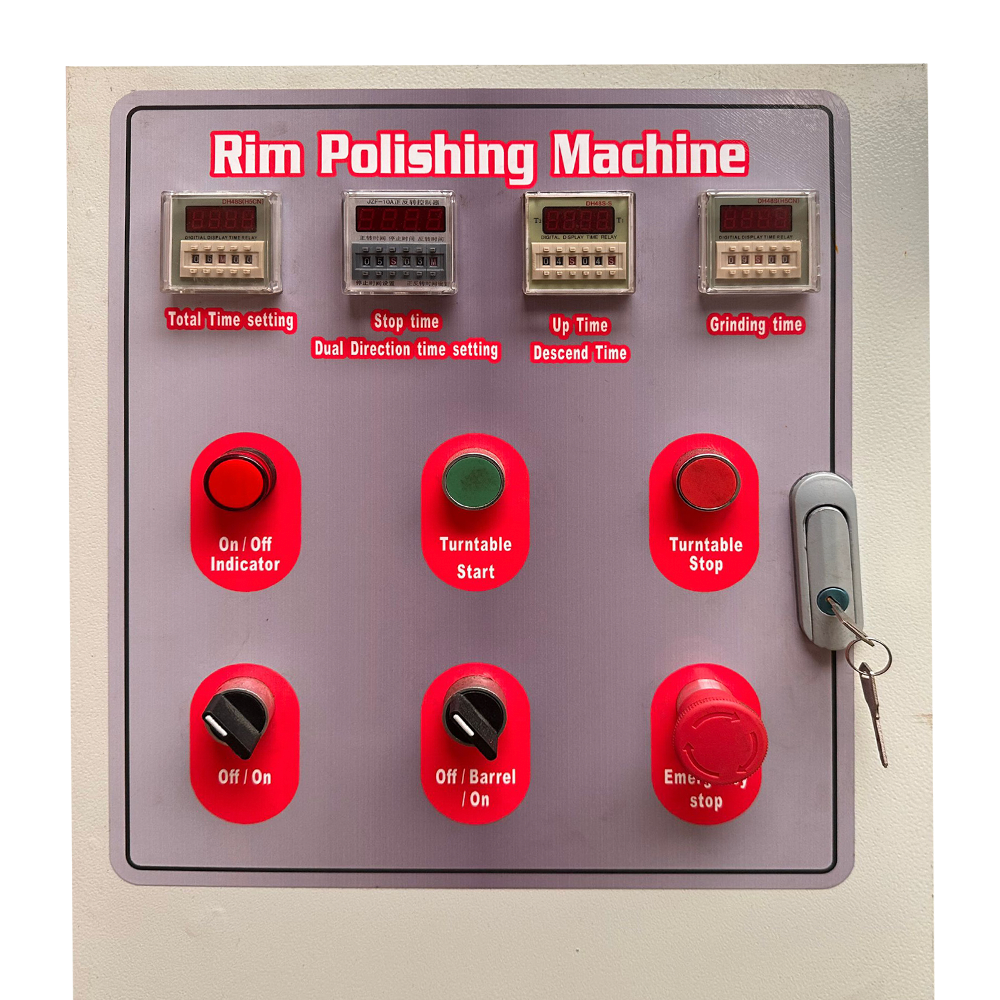

Heavy-duty wheel polishing system engineered for professional wheel servicing and restoration. Robust steel construction supports a 772 lb net weight and a compact 44 × 63 × 79 inch footprint for stable, shop-friendly installation. The feeding bucket holds up to 838 lb and accommodates rims up to 24 inches in diameter for versatile wheel sizes. A 38 inch feeding bucket diameter simplifies loading of larger wheel assemblies. Dual motor layout delivers a 1.5 kW spindle drive and a 1.1 kW bucket drive to sustain consistent polishing and debris removal. Hydraulic system operates at a maximum working pressure of 8 MPa to manage rotation and cleaning cycles. Controls allow timed polishing cycles with adjustable rise and reverse intervals to match finishing requirements. Freight shipping is required; buyers should prepare forklift or dock unloading and inspect deliveries before signing. The unit is suited to wheel servicing centers, collision repair shops, and tire remanufacturing operations seeking repeatable surface preparation. Field service access and replaceable polishing components reduce downtime and simplify maintenance.
Features

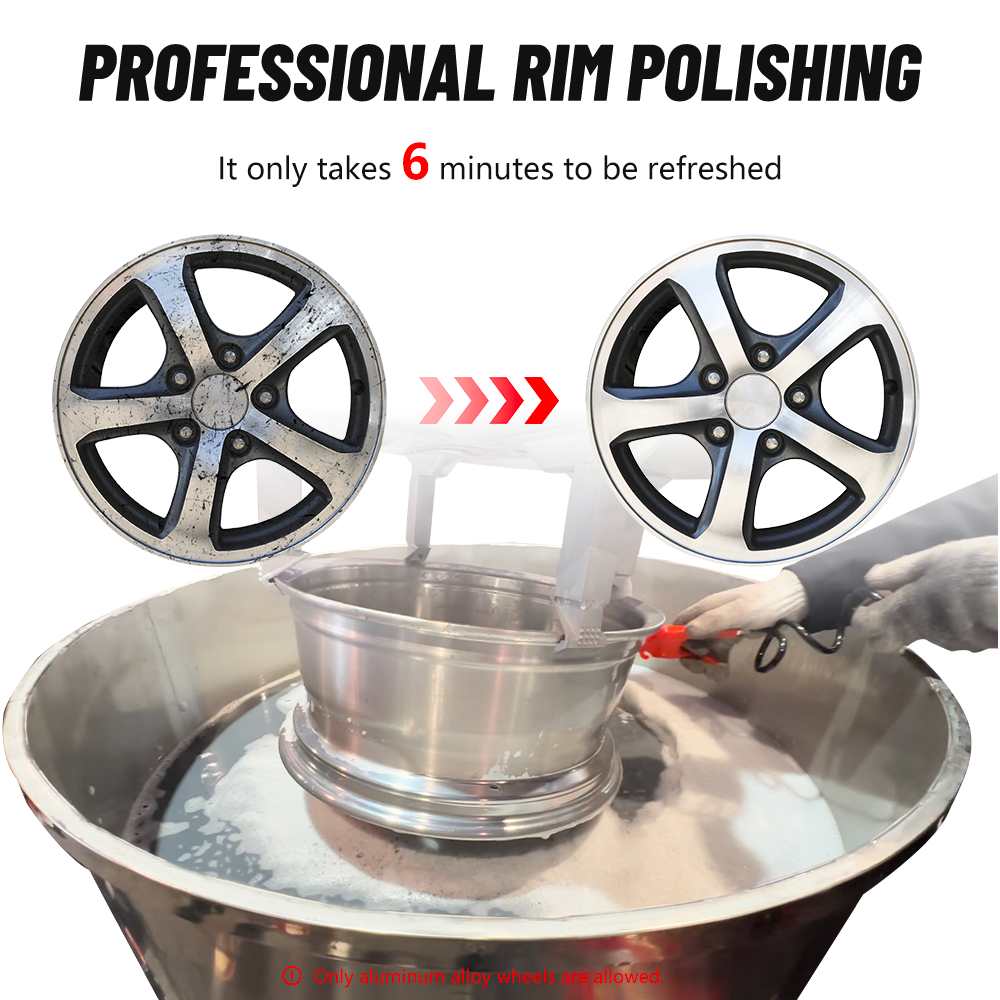

- Professional Rim Polishing: Cleans, polishes, and restores rims with precision.
- 838 lb (380 kg) Feeding Bucket Capacity: Handles multiple wheels efficiently.
- 24” Maximum Rim Diameter: Compatible with a wide range of wheel sizes.
- Dual Motor System: 1.5 kW spindle motor & 1.1 kW bucket motor for smooth operation.
- Automatic Bidirectional Polishing: Clockwise and counterclockwise movement ensures even polishing.
- High Working Pressure (8 MPa): Delivers strong grinding force for optimal results.
- 6-Minute Polishing Cycle: Fast and efficient cleaning process.
- Durable Construction: Heavy-duty steel frame for long-term use.
Specifications
|
Feeding bucket capacity |
838lib |
|
Feeding bucket diameter |
38in |
|
Maximum rim diameter |
24” |
|
Spindle motor power |
1.5kw |
|
Bucket motor power |
1.1kw |
|
Maximum working pressure |
8mpa |
|
Net weight |
772lib |
|
Dimension |
44’’×63’’×79’’ |
Operating Instructions

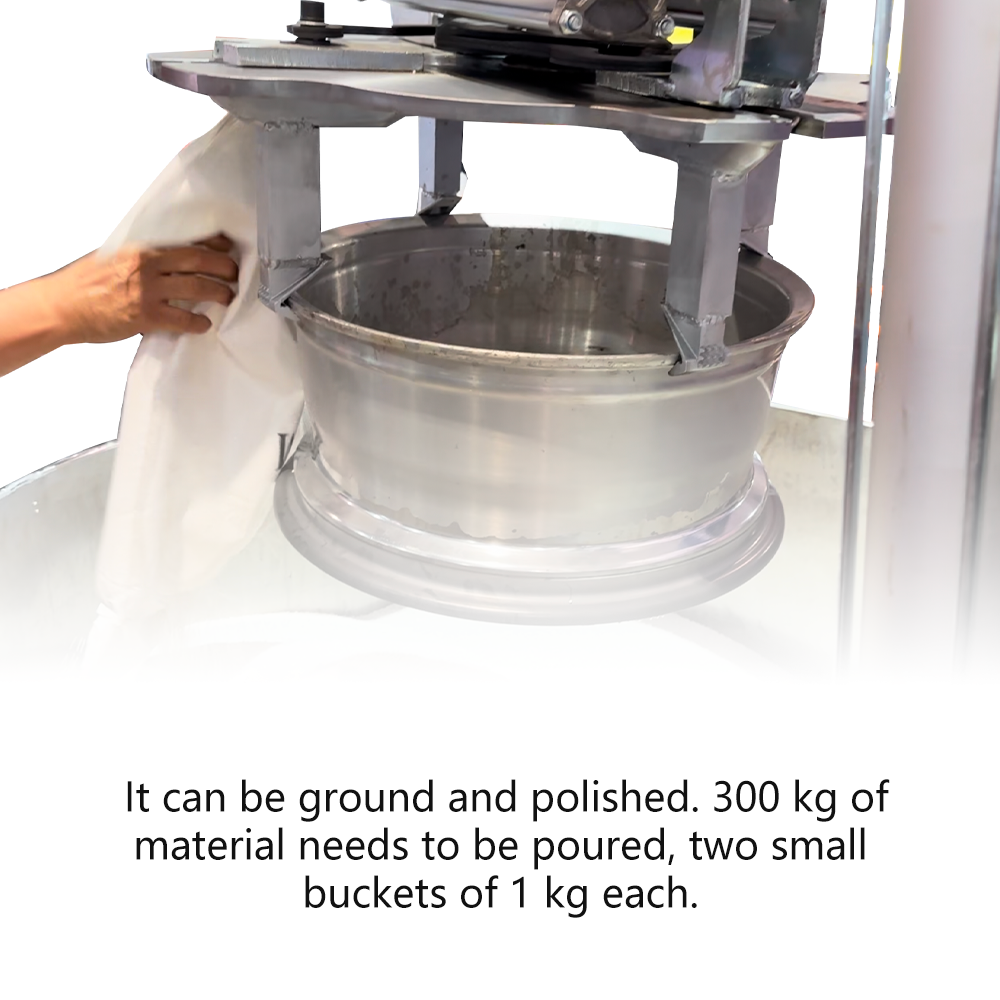

- Material Preparation: Pour 300 kg of material, with two small buckets of 1 kg each.

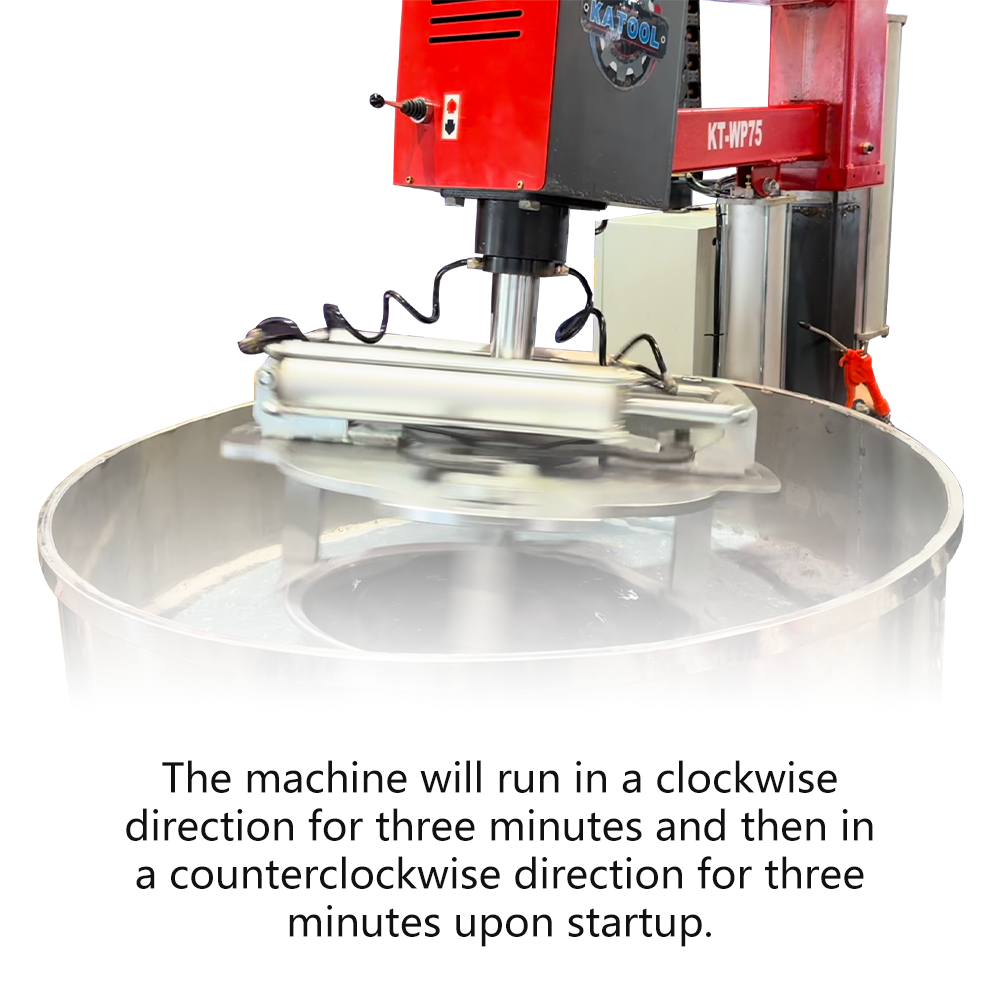

- Machine Operation: Runs clockwise for 3 minutes, then counterclockwise for 3 minutes.
- Final Polishing: Total cycle time is set to 6 minutes for a refreshed rim finish.
- Safety Note: Only aluminum alloy wheels are allowed.
Warranty
Katool provides a 1-year limited warranty covering parts and product defects. Additionally, an optional 2-year extended warranty is available for additional coverage.
Warranty Includes:
- Spindle motors, hydraulic components, and control panels.
- Structural frame and electrical systems.
Warranty Conditions:
- Claims must be submitted within the warranty period.
- Warranty is non-transferable and requires proof of purchase.
- Replacement parts and shipping are covered at no cost.
- Labor costs are not included.
- Do not disassemble the equipment before warranty approval.
