Katool KT-X95 8,000 lb Full Rise Scissor Lift Flush-Mount Automotive
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout

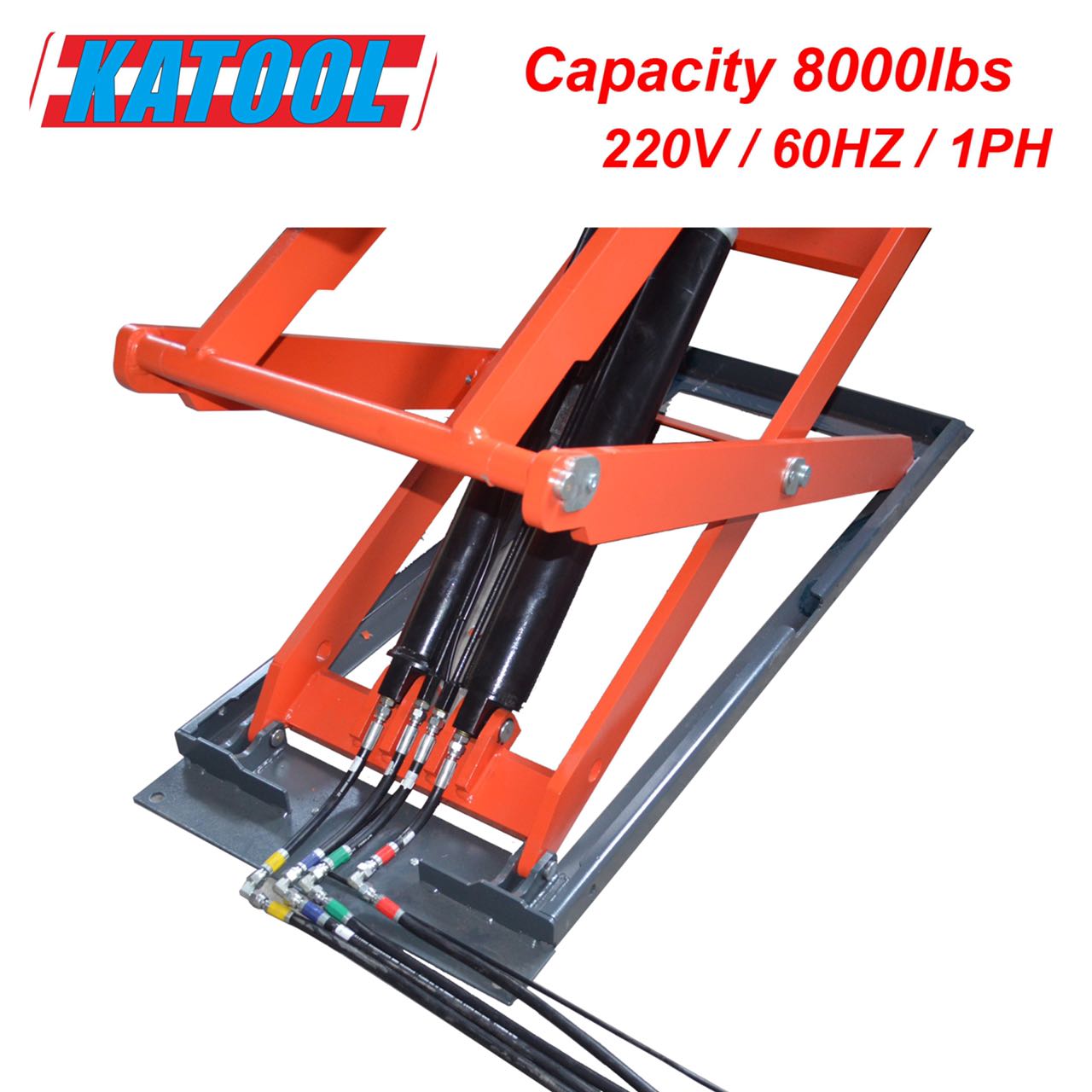

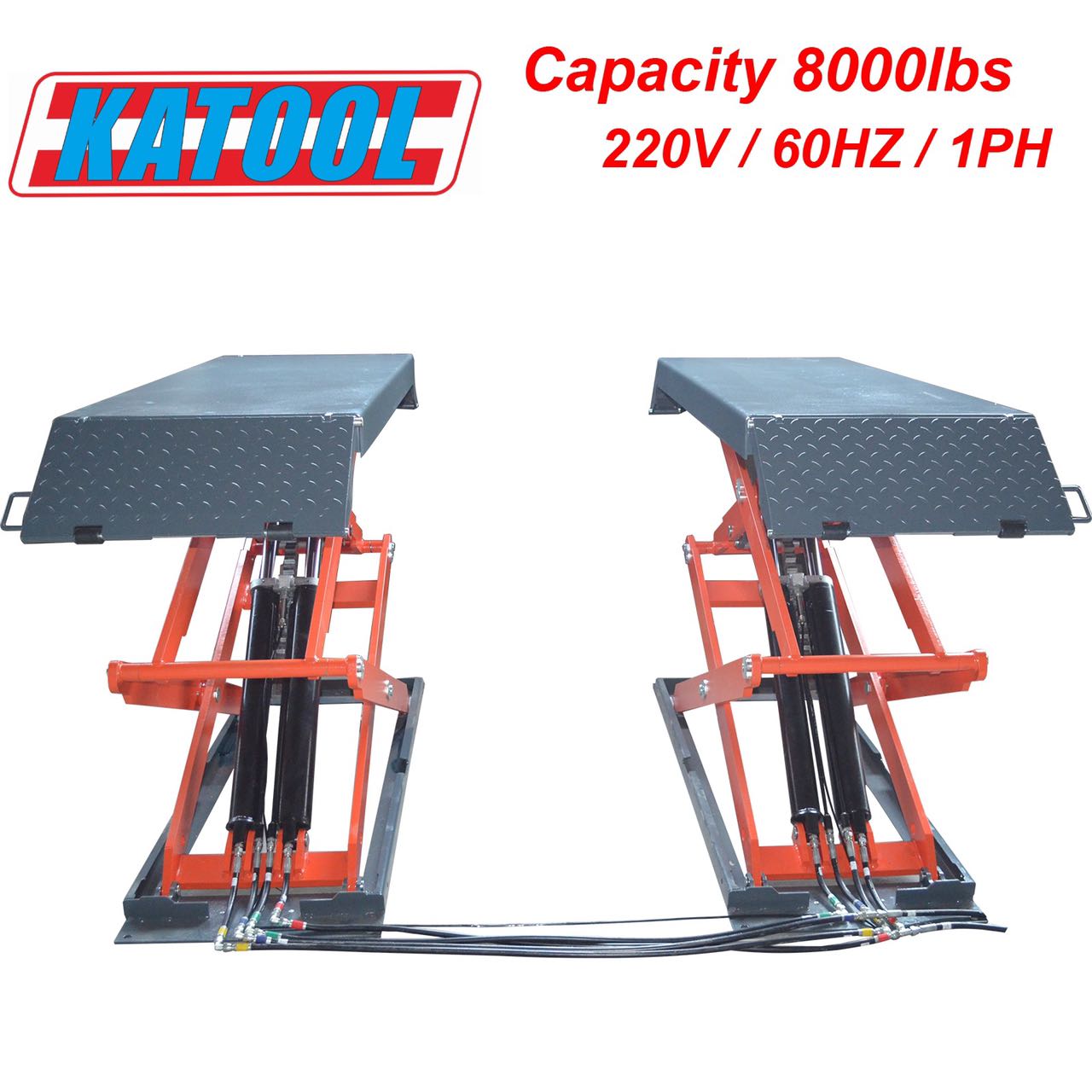

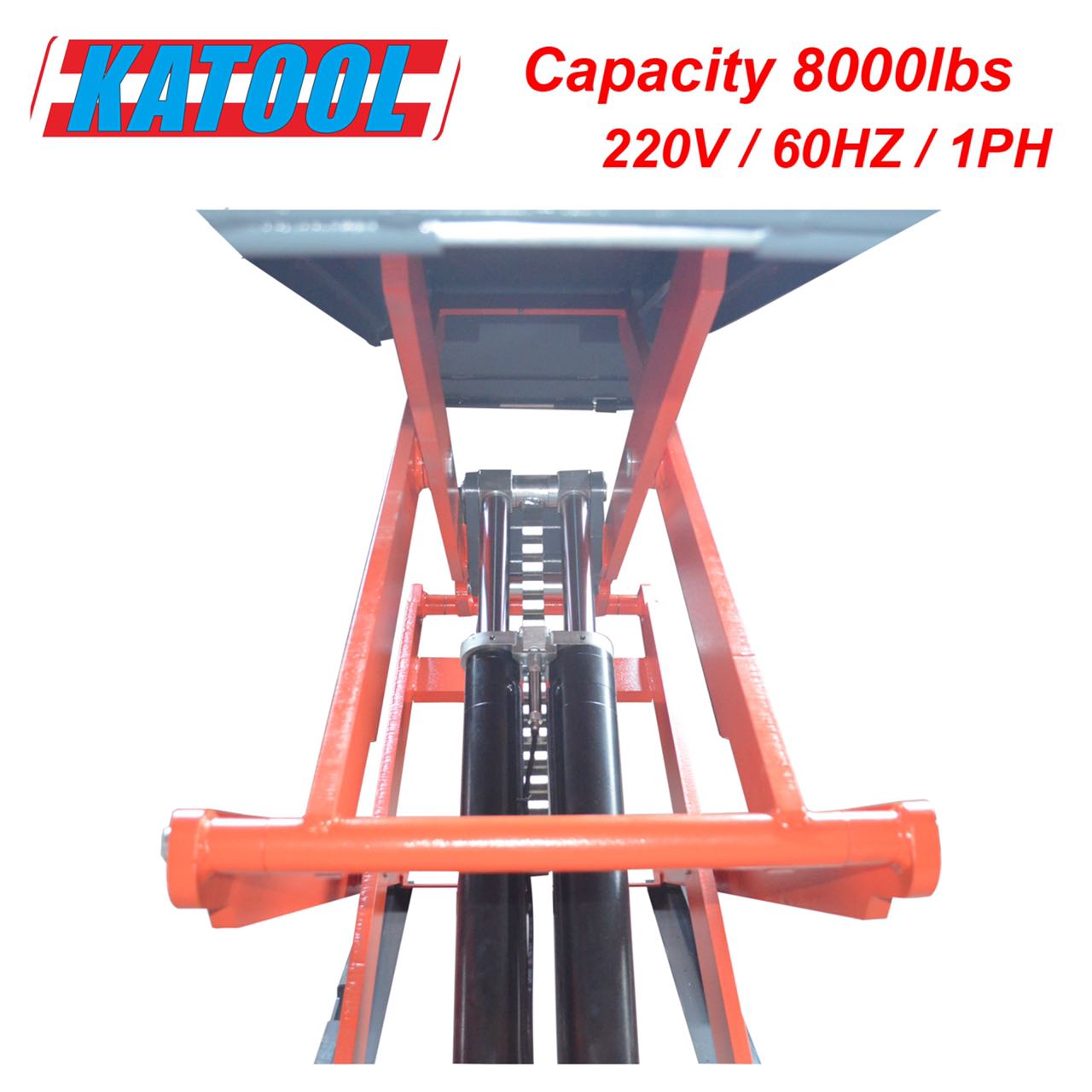

Heavy-duty construction supports up to 8,000 lb capacity with a flush‑mount profile for unobstructed bay floors. The scissor mechanism uses self-lubricated bushings and bearings to reduce maintenance and extend service intervals. Dual-platform design with composite rubber lifting blocks distributes load and protects vehicle contact points. Hydraulic powertrain with a 2.2 kW motor and top-mounted fan provides continuous duty cooling for extended operation. Integrated 24V safety control, electric safety release and height limit switch improve operator control and on-lift safety. Drive-up ramp extensions lock into the platform to accommodate long-wheelbase vehicles. Unit requires connection to a compressed air source for some release functions and must be anchored to concrete at least 5.9 inches thick at 3000 PSI. Typical lifting time is under 50 seconds to reach full rise for efficient bay throughput. Service and installation planning should include freight delivery, forklift or unloading-dock arrangements and local anchoring verification. The design suits commercial and professional automotive service environments prioritizing stable lifting, easy vehicle access and long-term durability.
*This model should be securely anchored to concrete before operation. Concrete thickness must be at least 5.9 (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customers responsibility to verify concrete thickness and strength before purchase and installation.
Features
- 8000lbs(3500KG) lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Flush mount design
- Starting-up system design
-
Penumatic safety release
- 24V safe control system
- Height limit switch
- Composite rubber lifting blocks included
- Comes with self-lubricated bushing and bearing
- Drive-up ramps lock design as platform extension for long vehicles
- Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working
- The unit needs to be connected to a compressed air source.
Specifications
| Construction and materials | Welded steel frame; self-lubricated bushings and bearings; composite rubber lifting blocks |
| Lifting capacity | 8,000 lb (3,500 kg) |
| Lifting height (max) | 72.3 in |
| Platform length | 58.9 in |
| Platform width | 24.4 in |
| Lifting time | ≤ 50 seconds |
| Power and controls | 2.2 kW hydraulic power unit with top-mounted cooling fan; 24V safety control; electric safety release; height limit switch |
| Hydraulic and pneumatic specs | Rated oil pressure 20 MPa; required air pressure 6–8 kgf/cm² (for pneumatic functions) |
| Installation and anchoring | Flush-mount design; must be anchored to concrete ≥5.9 in thick at 3000 PSI; freight delivery recommended; buyer responsible for unloading |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
