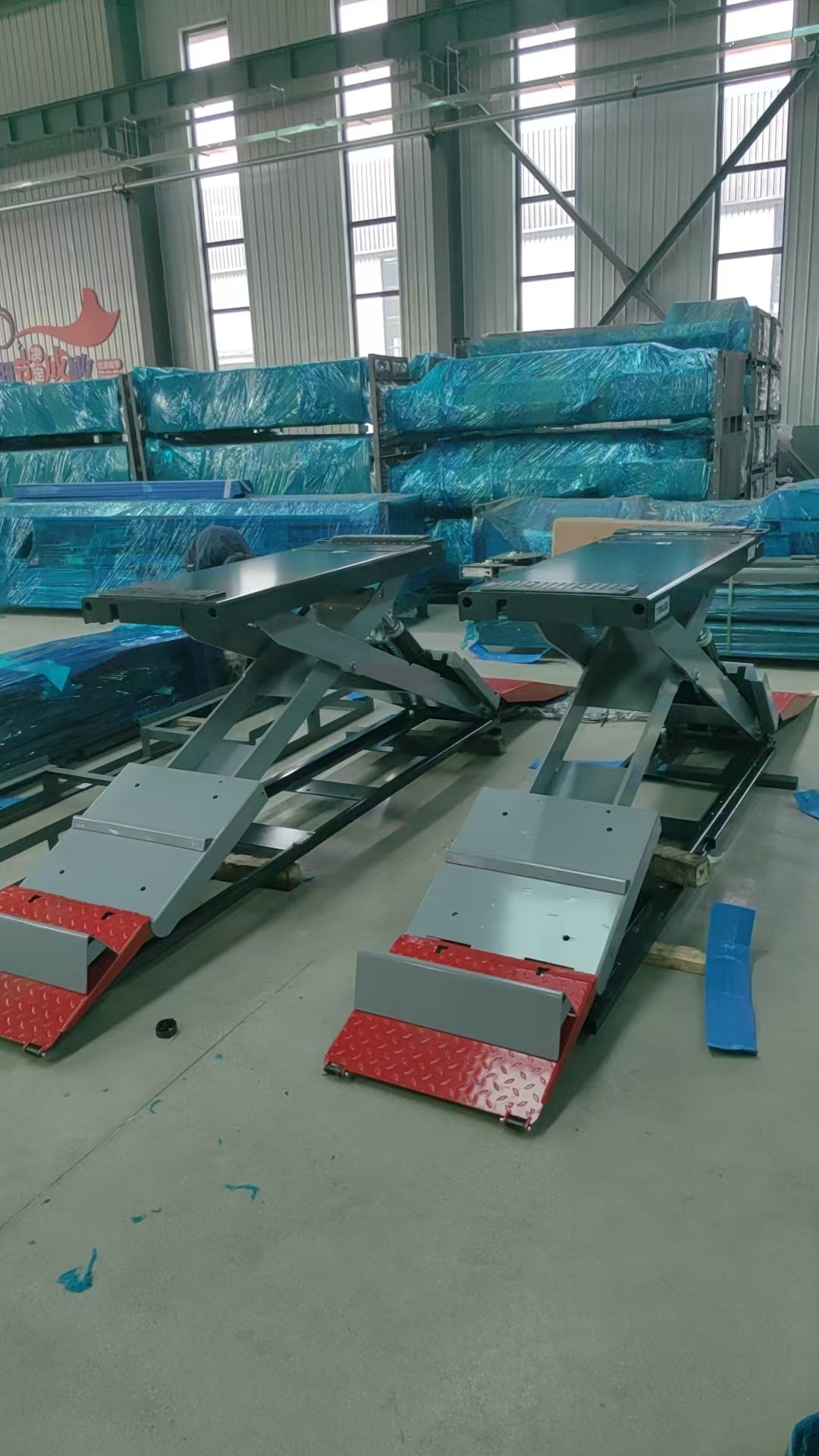

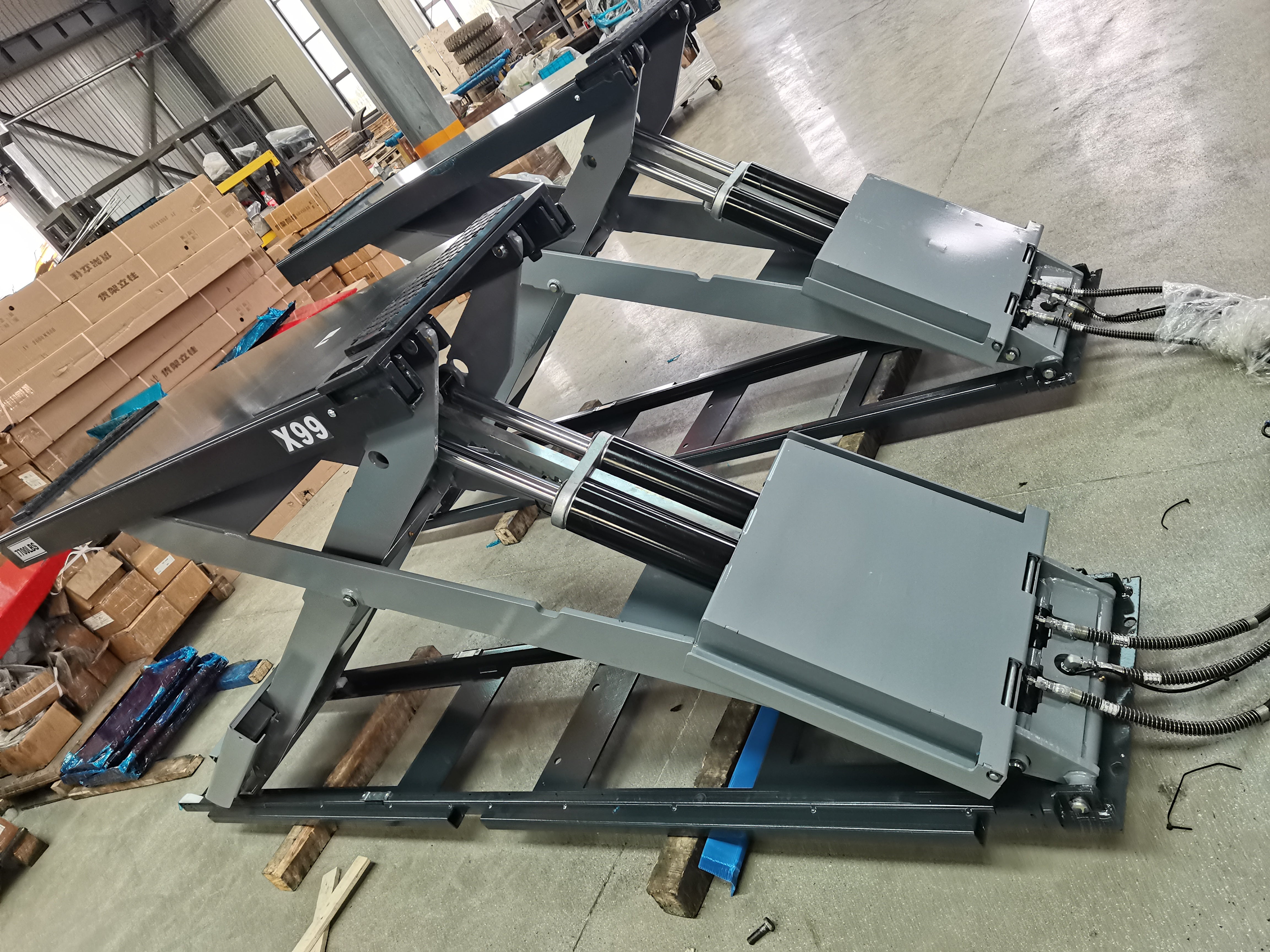

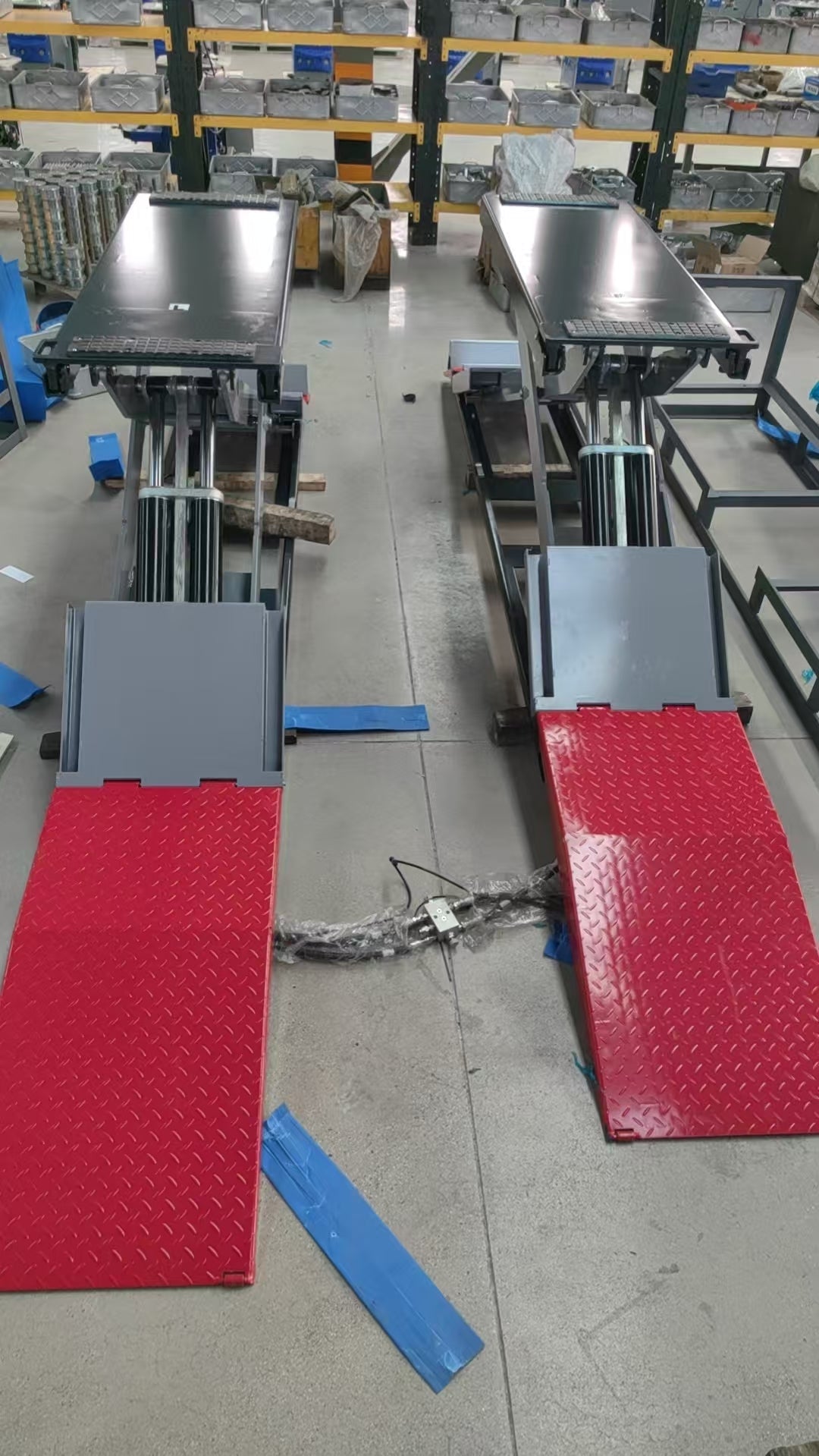

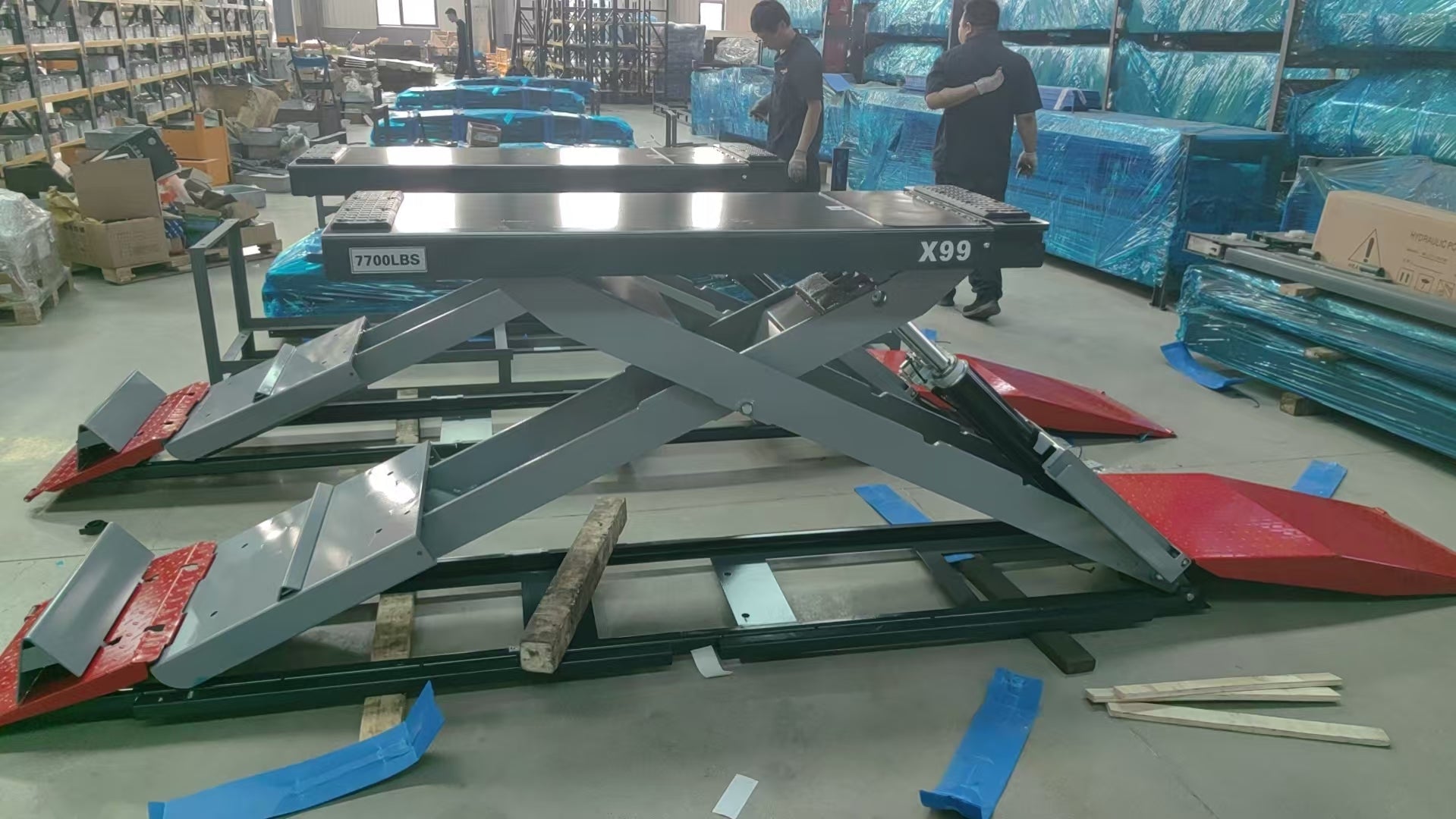

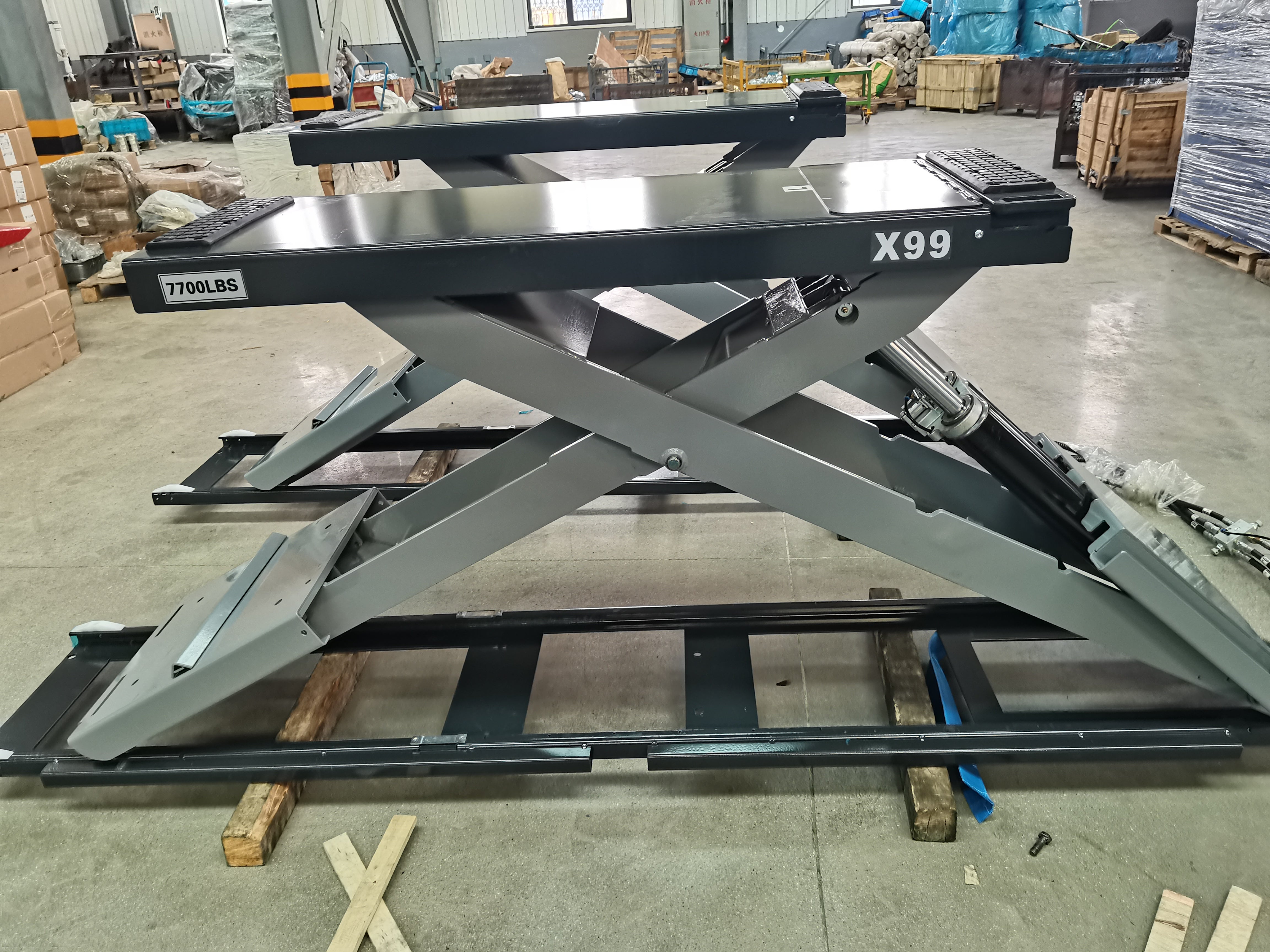

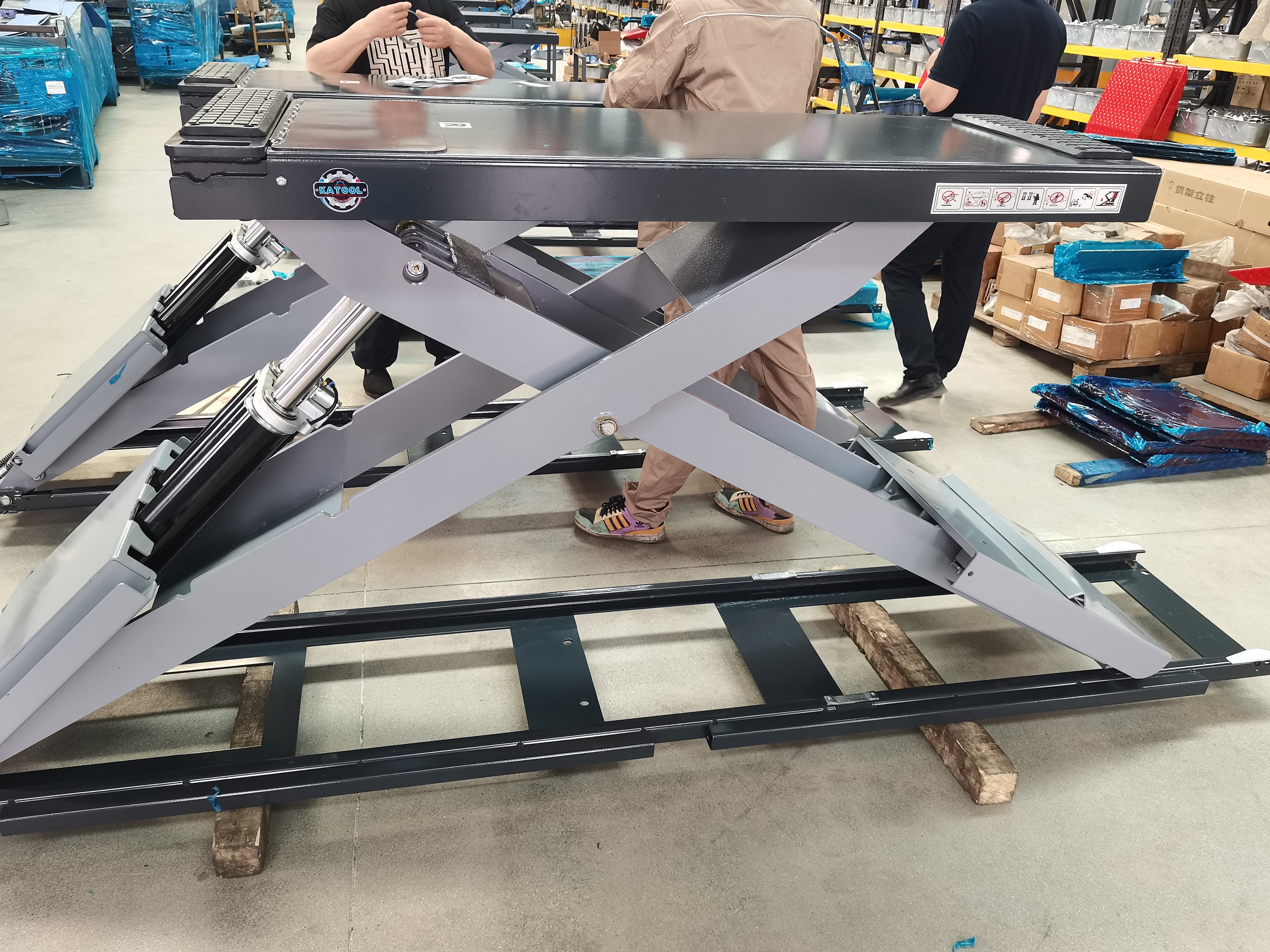

Katool KT-X99 7,700 lb Hydraulic Scissor Lift Platform
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout
Heavy-duty hydraulic scissor mechanism provides stable vertical lifting suited for automotive service and heavy-equipment maintenance. Rated lifting capacity is 7,700 lb, enabling safe elevation of light trucks, SUVs and most commercial vehicles. Maximum lift height reaches 76 in while the lowest locking point sits at 5.5 in for efficient underbody access. Hydraulic power unit operates on 220 V supply and delivers smooth, controlled ascent and descent through recessed scissor arms. Welded structural construction and reinforced cross members provide load distribution and torsional rigidity during operation. Controls are positioned for operator visibility and include mechanical locks for secure holding at service height. Platform footprint and geometry allow common wheelbase alignment and service access across vehicle widths. Service and maintenance access is simplified by exposed hydraulic fittings and removable panels for pump inspection. Pick-up and shipped purchasing options are available with varying delivery and setup arrangements. Comprehensive documentation and recommended professional installation ensure safe integration into a shop environment.
Specifications
| Material | Heavy-duty welded steel frame |
| Finish | Powder-coated protective finish |
| Load capacity | 7,700 lb |
| Maximum lift height | 76 in |
| Minimum platform height | 5.5 in |
| Platform size (L x W) | 60 x 30 in |
| Power requirement | 220 V AC |
| Installation | Hardwired 220 V connection; professional installation recommended |
| Included | Hydraulic lift unit, hydraulic power pack, operator controls, basic mounting hardware |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
