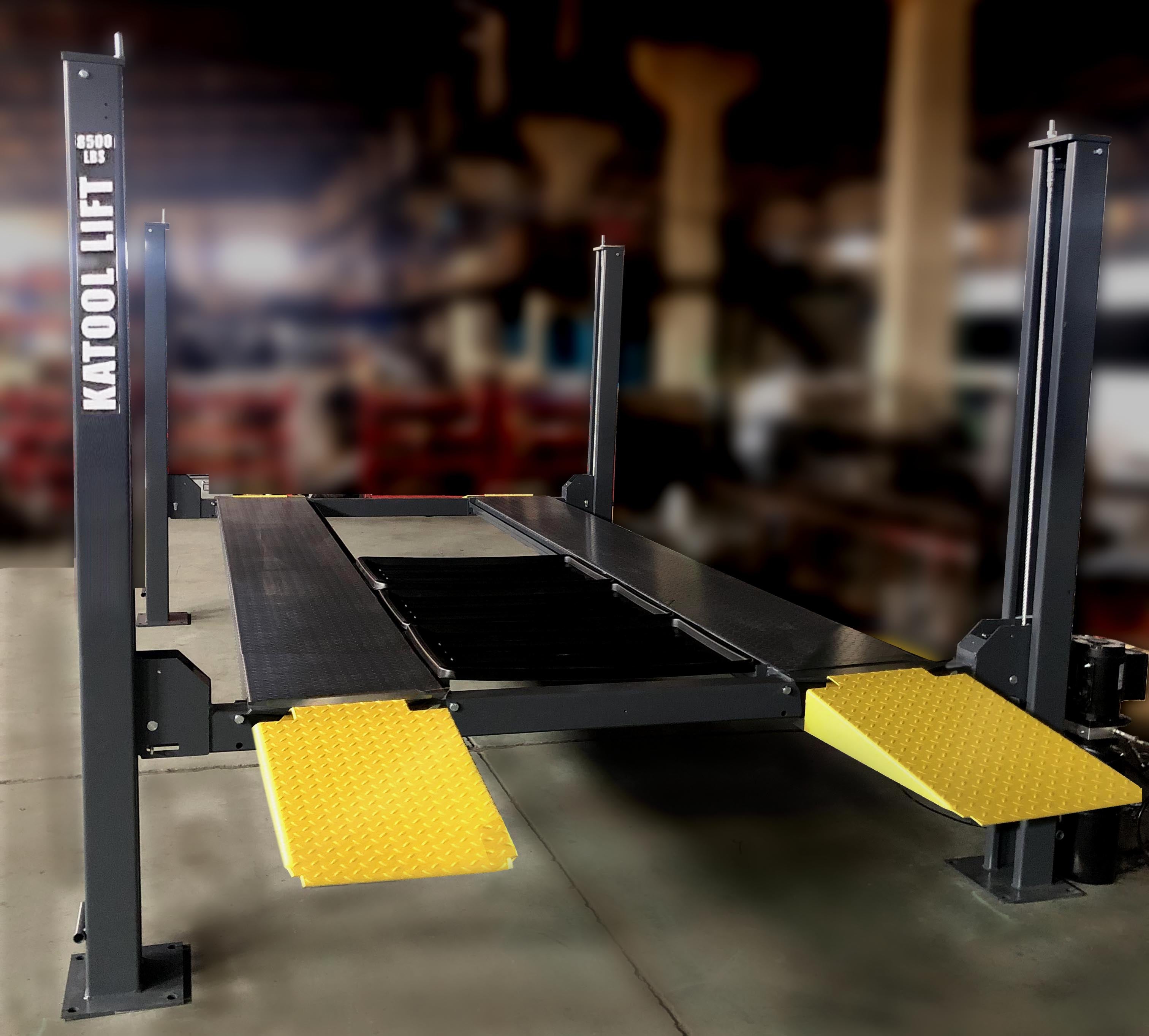

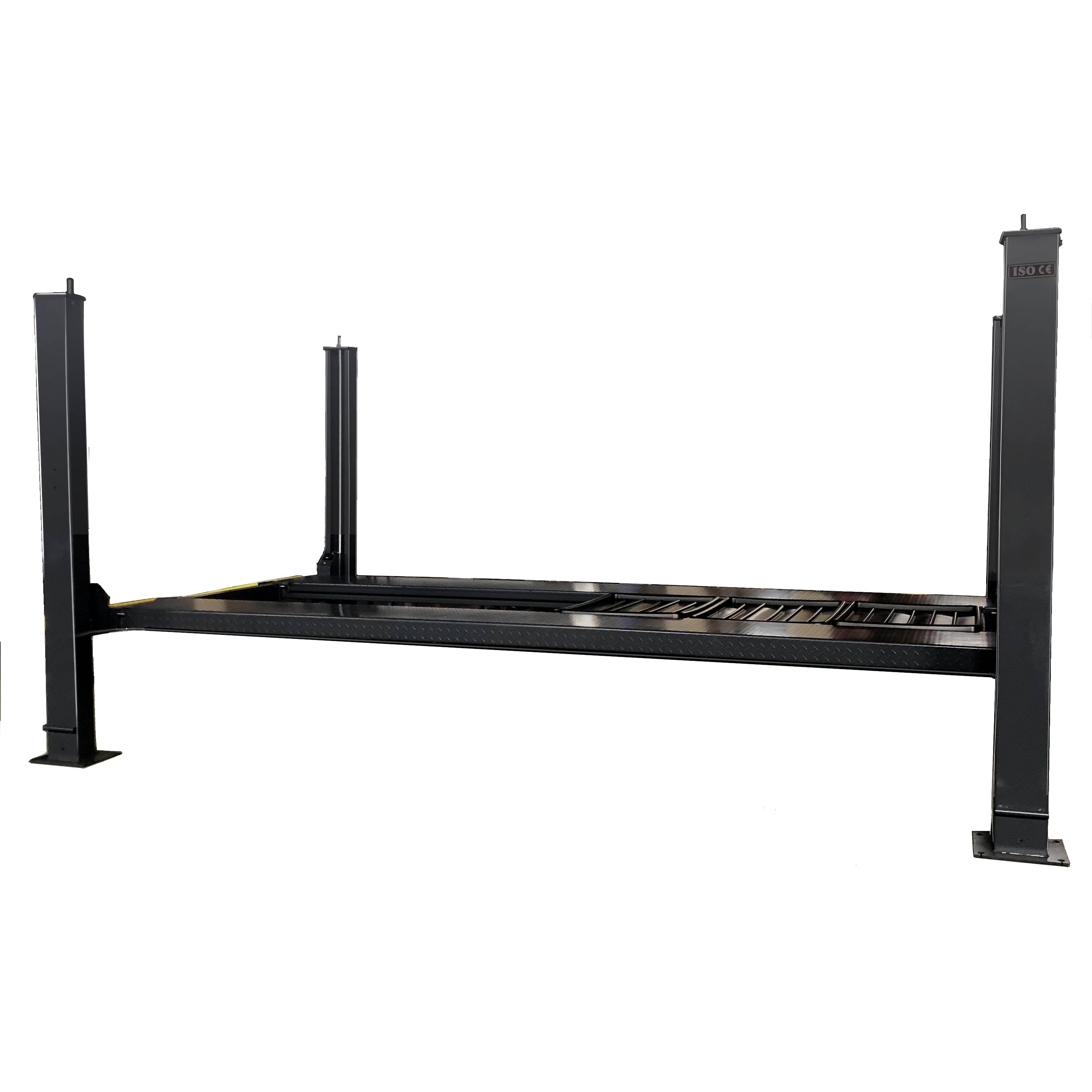

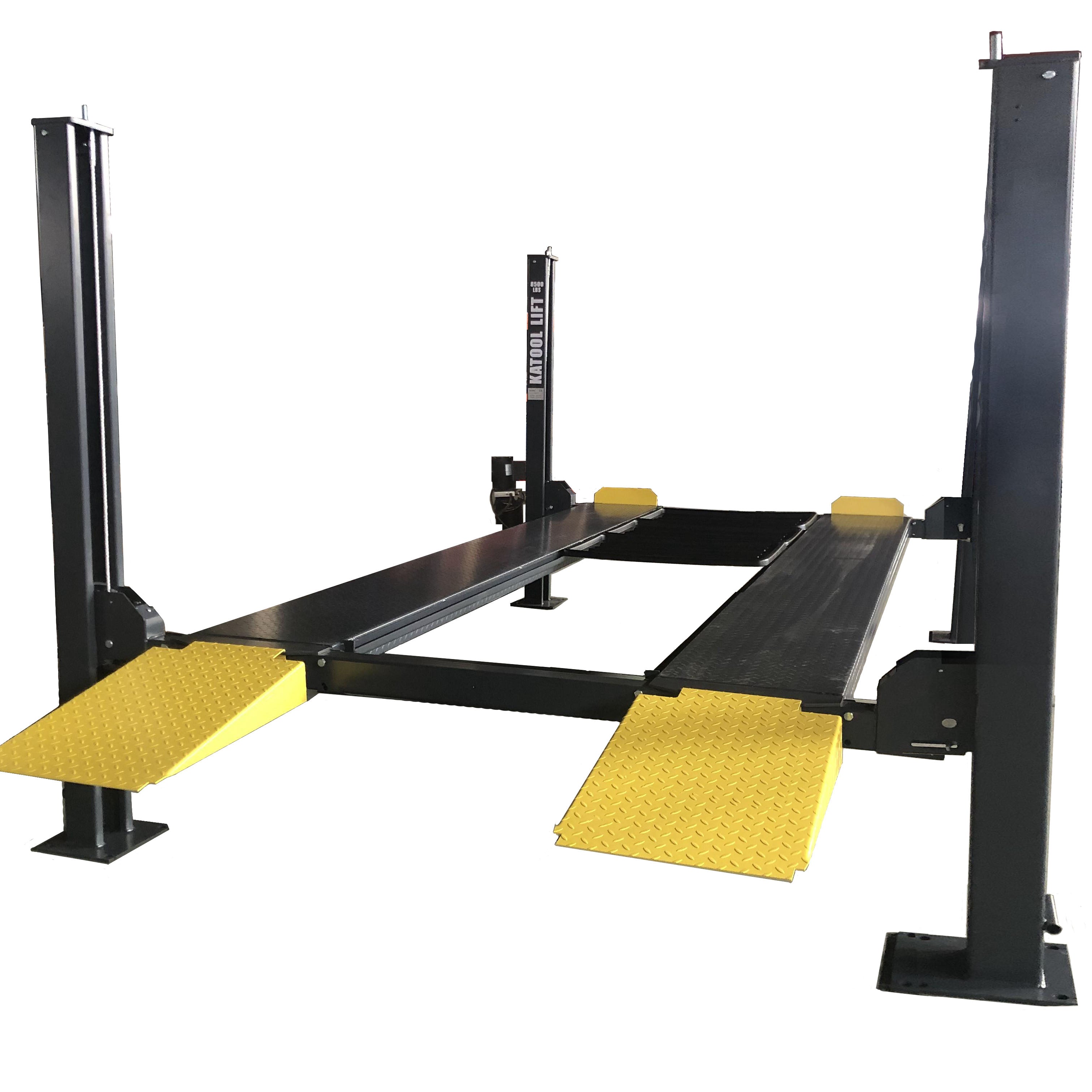

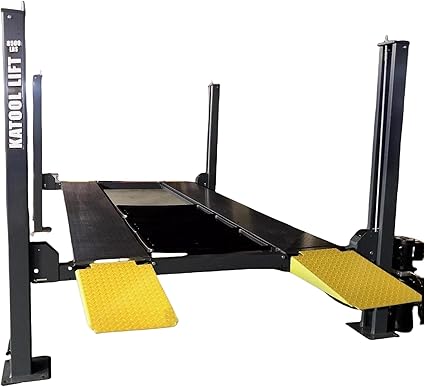

Katool KT-4H850 8,500 lb Four-Post Car Lift Heavy-Duty Garage Parking Lift

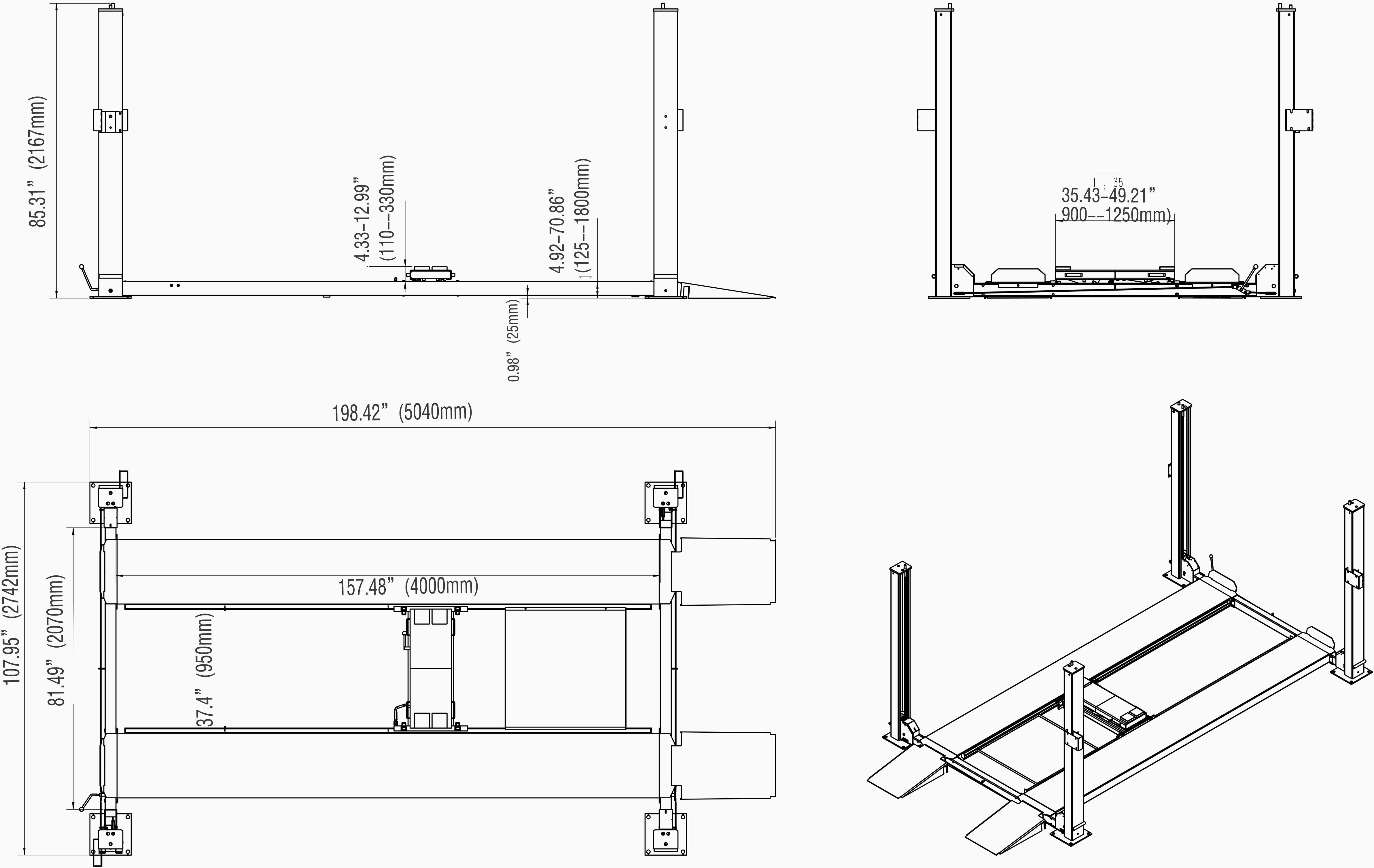

Designed for commercial and serious home garages, this four-post lift delivers a rated 8,500 lb lifting capacity for elevated storage and vehicle maintenance. The lift uses a hydraulic drive with a 110 VAC / 60 Hz / 1 PH motor and an optional 220 VAC configuration for compatibility with workshop power systems. Non-skid diamond platforms and adjustable safety lock ladders provide stable vehicle positioning and incremental locking points during service. Four mechanical locking devices plus a slack-cable secondary lock and single-point manual safety lock release enhance mechanical redundancy and service safety. Power-side column placement is configurable to front or rear to suit shop layouts and workflow. Dimensions accommodate most cars and light trucks with a 70.87 in maximum lift height and inside column clearance of 94.72 in. Concrete installation requires at least 3.93 in thickness (100 mm) with a minimum 3,000 PSI rating; correct substrate verification is the buyer’s responsibility. The unit ships with a caster kit for repositioning, three drip trays, and a dedicated jack tray to support routine service tasks. Overall footprint and ramped length enable long-term parked storage while maintaining access to the underside for inspection and repairs. CE certification and static/dynamic load testing are documented to the manufacturer’s stated standards for this model.
*Concrete Requirements: Ensure a minimum concrete thickness of 3.93 inches (100 mm) with a 3,000 PSI rating. Failure to meet these requirements could result in serious injury or equipment failure. It is the customer's responsibility to verify concrete specifications before purchase and installation.

Features

• 8500lbs lifting capacity.

• CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.

• Single Point Manual Safety Lock Release

• Four mechanical locking devices, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure.

• Power side column can be installed at both sides, front or rear.

• Non-skid diamond platforms and adjustable safety lock ladders.

• Comes with a caster kit for moving the lift around.

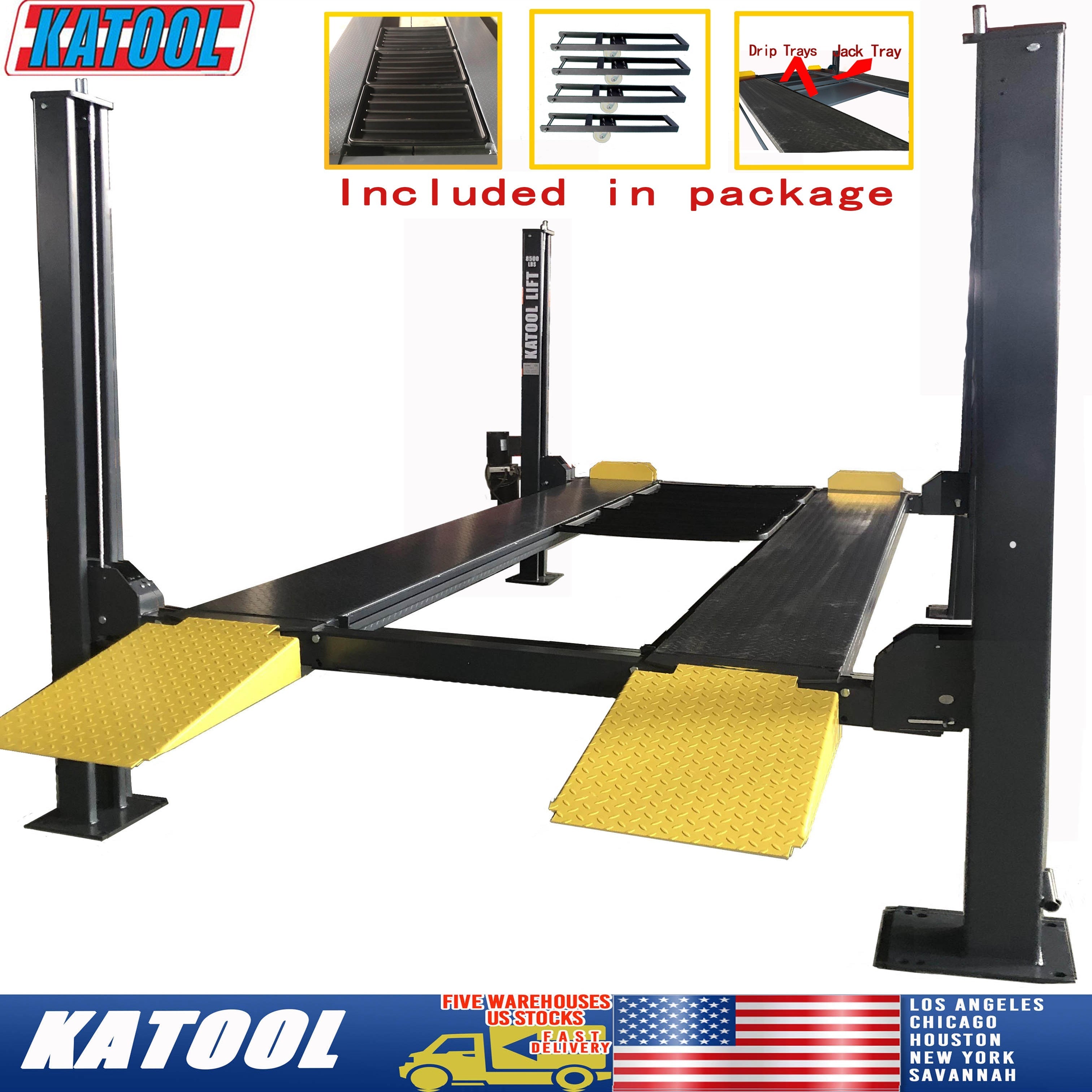

• Comes with three drip trays and a jack tray.

• High-quality hydraulic system with 110V/60HZ/1PH or 220V/60HZ/1PH (Optional)

Specifications

Shipping Coverage

• Freight shipping only within the lower 48 states.
• Fulfillment times are 6-10 business days.
• Free shipping applies to: Tire Changers, Tire Balancers, Shop Tool Equipment, and Scissor Lifts → delivered to commercial addresses or the nearest carrier terminal.
• Two-Post and Four-Post Lifts: Customer must provide a forklift for unloading (if no forklift is available please reach out to customer service as there may be more charges involved). Please make sure to select the correct shipped or pick up option BEFORE ADDING THE ITEM TO YOUR CART. If no forklift is available, we can arrange terminal delivery for pick-up instead

Additional Services & Fees

• Residential Delivery: $100
• Liftgate Service: $100 (not available for two post, four posts, and select scissor lifts; contact us to confirm before ordering)

Customer Responsibilities

1. Customers are responsible for unloading freight from the truck.
2. A forklift or unloading dock service is strongly recommended.
3. Customers are responsible for any re-delivery fees if the carrier cannot complete delivery.
4. Do not sign for damaged or incomplete shipments. Contact Customer Service immediately if items are missing or damaged.
