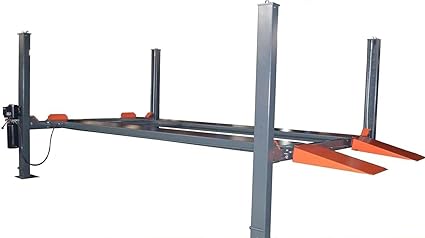

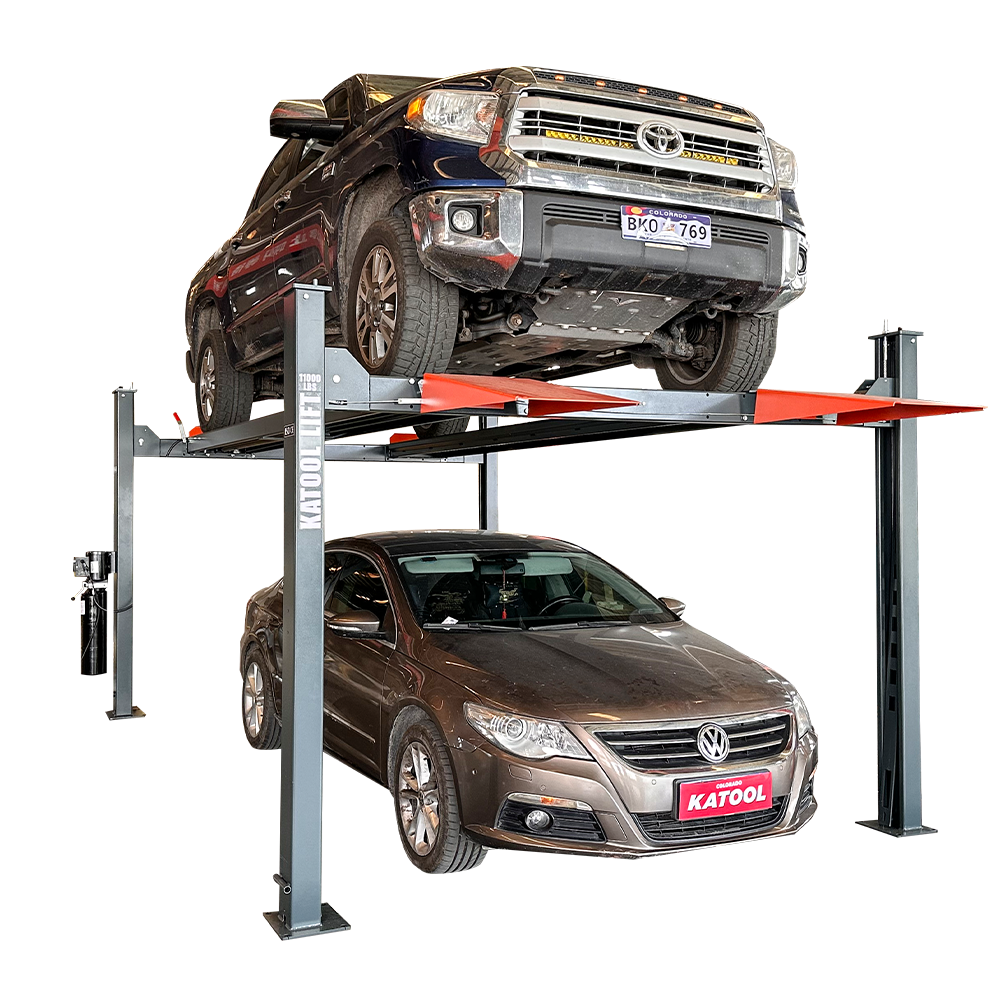

Katool KT-4H110 11,000 lbs Four Post Parking Lift

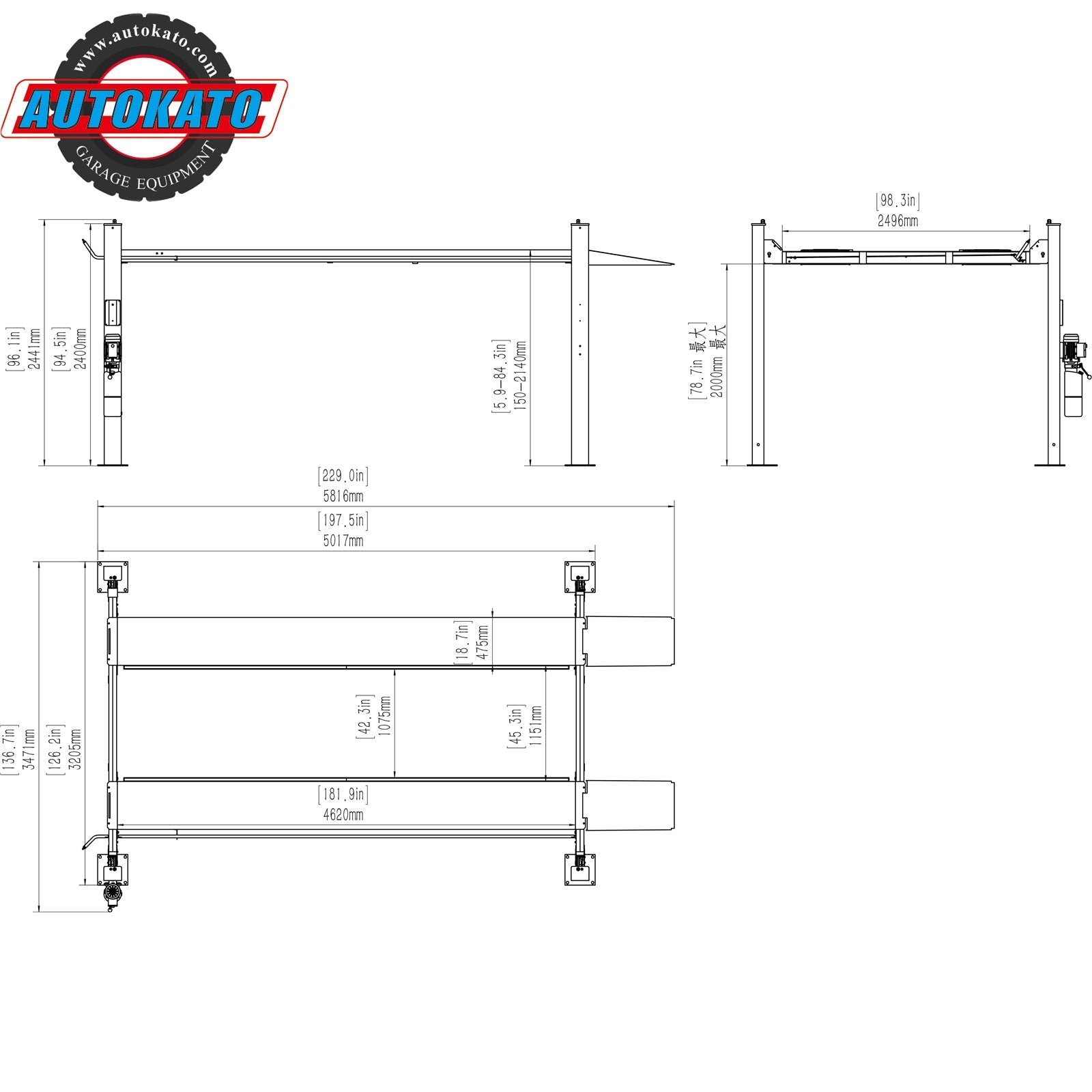

Heavy-gauge welded steel construction provides stable support for vehicles up to 11,000 lb capacity. Dual hydraulic system with a 110V/60Hz single-phase motor delivers controlled ascent and descent, with typical lift time of approximately 83s up and 40s down. Non-skid coated runways and four mechanical locking devices with a single-point manual release provide secure positioning for vehicle servicing. Adjustable safety lock ladders and a secondary slack-cable backup lock engage in the unlikely event of cable failure. Installation requires a minimum 3.93 in concrete slab at 3000 PSI and a forklift for unloading; professional installation is strongly recommended. Platform footprint and inside column spacing accommodate most passenger cars and light trucks while maintaining a 6.2 in minimum runway height for low-clearance vehicles. Power column placement is configurable on either side, front, or rear to suit workshop layouts and access needs. Standard inclusions are two drip trays and a jack tray; caster kit and rolling jacks are available as optional accessories. CE certification and dynamic/static load testing align the product with a 115% dynamic and 150% static loading standard. Twelve-month parts warranty covers manufacturing faults; verify site readiness and local codes before purchase.

*Concrete thickness must be at least 3.93” (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

Features

• 11000lbs lifting capacity.

• CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.

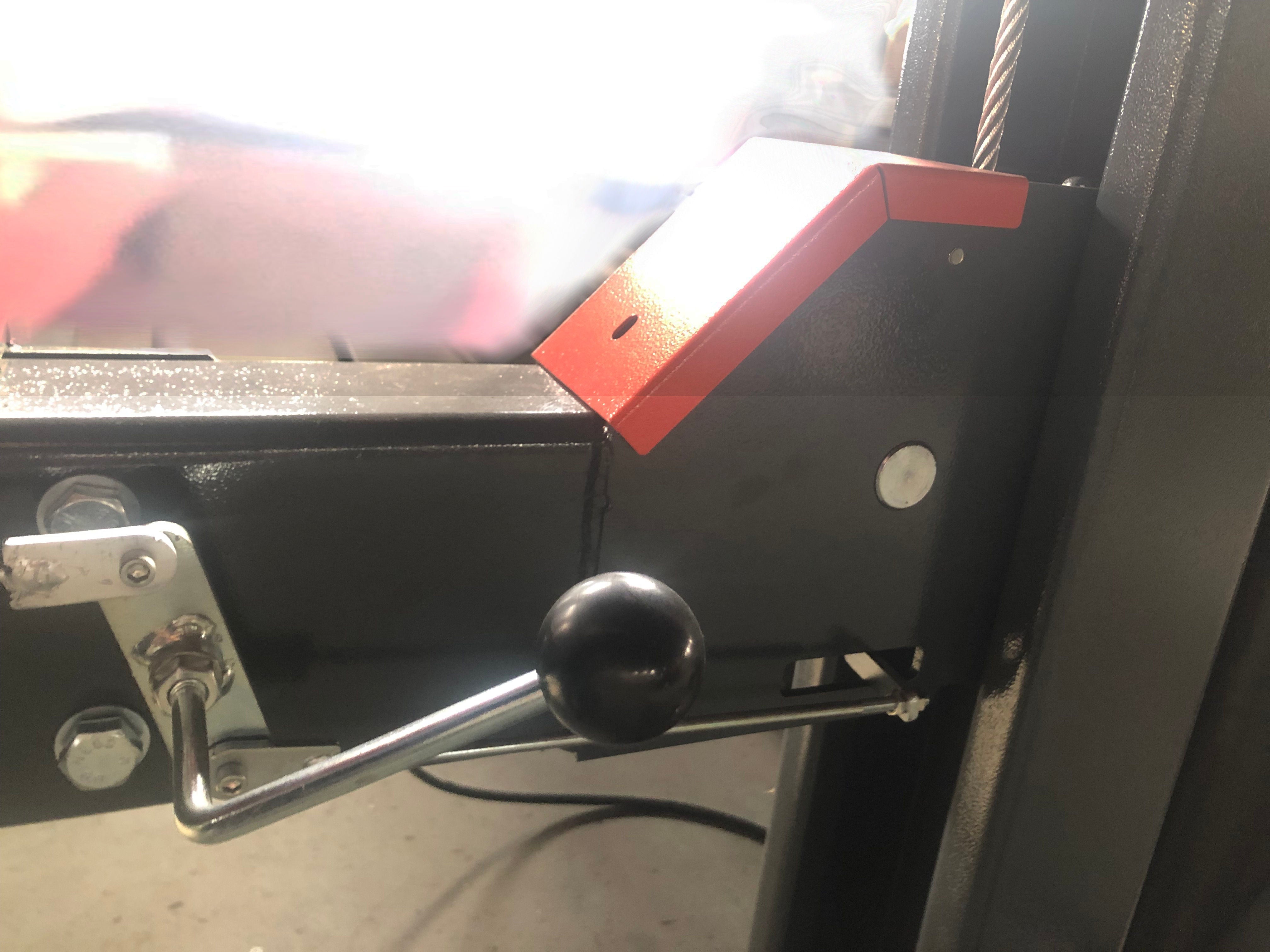

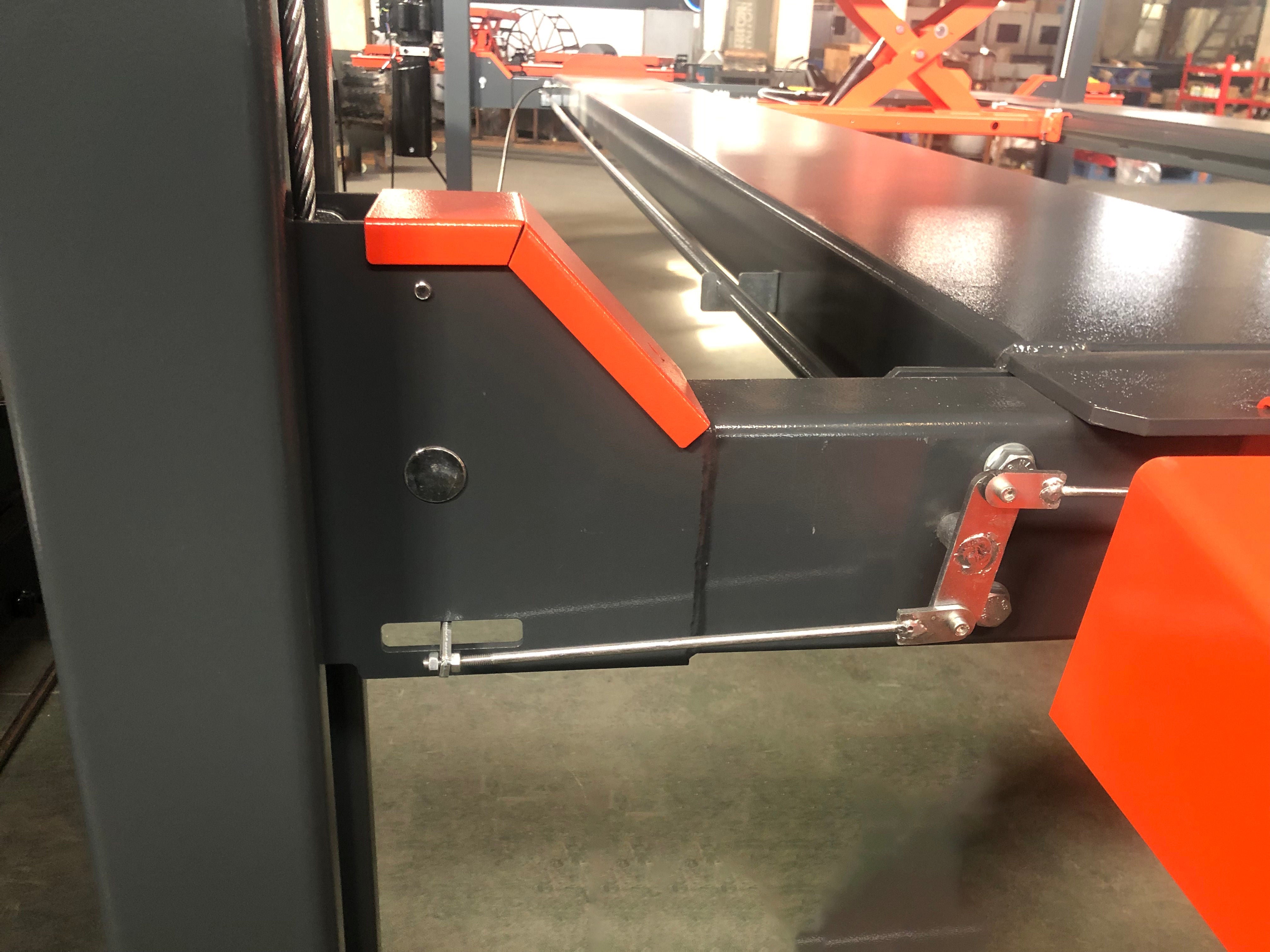

• Single Point Manual Safety Lock Release

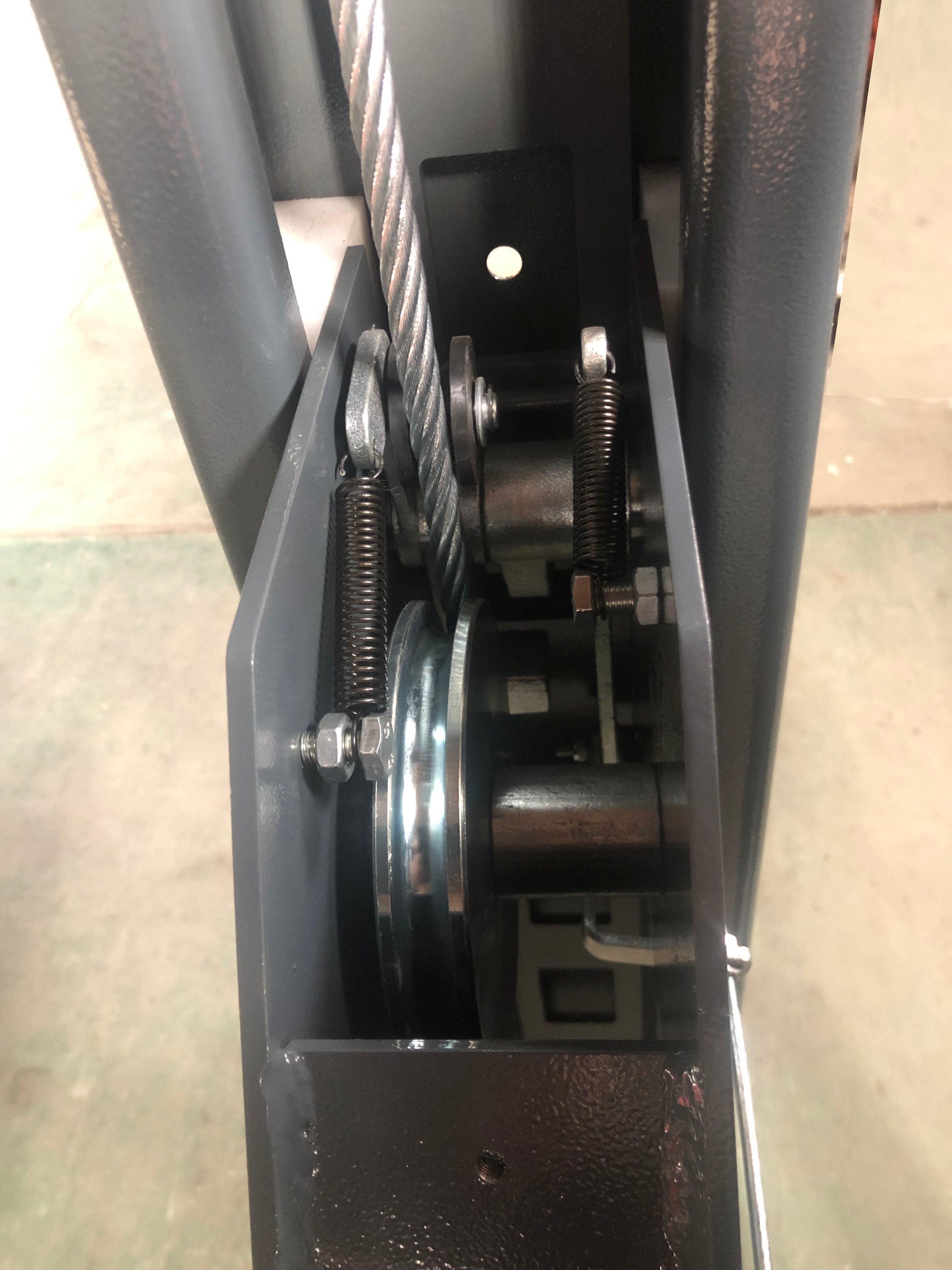

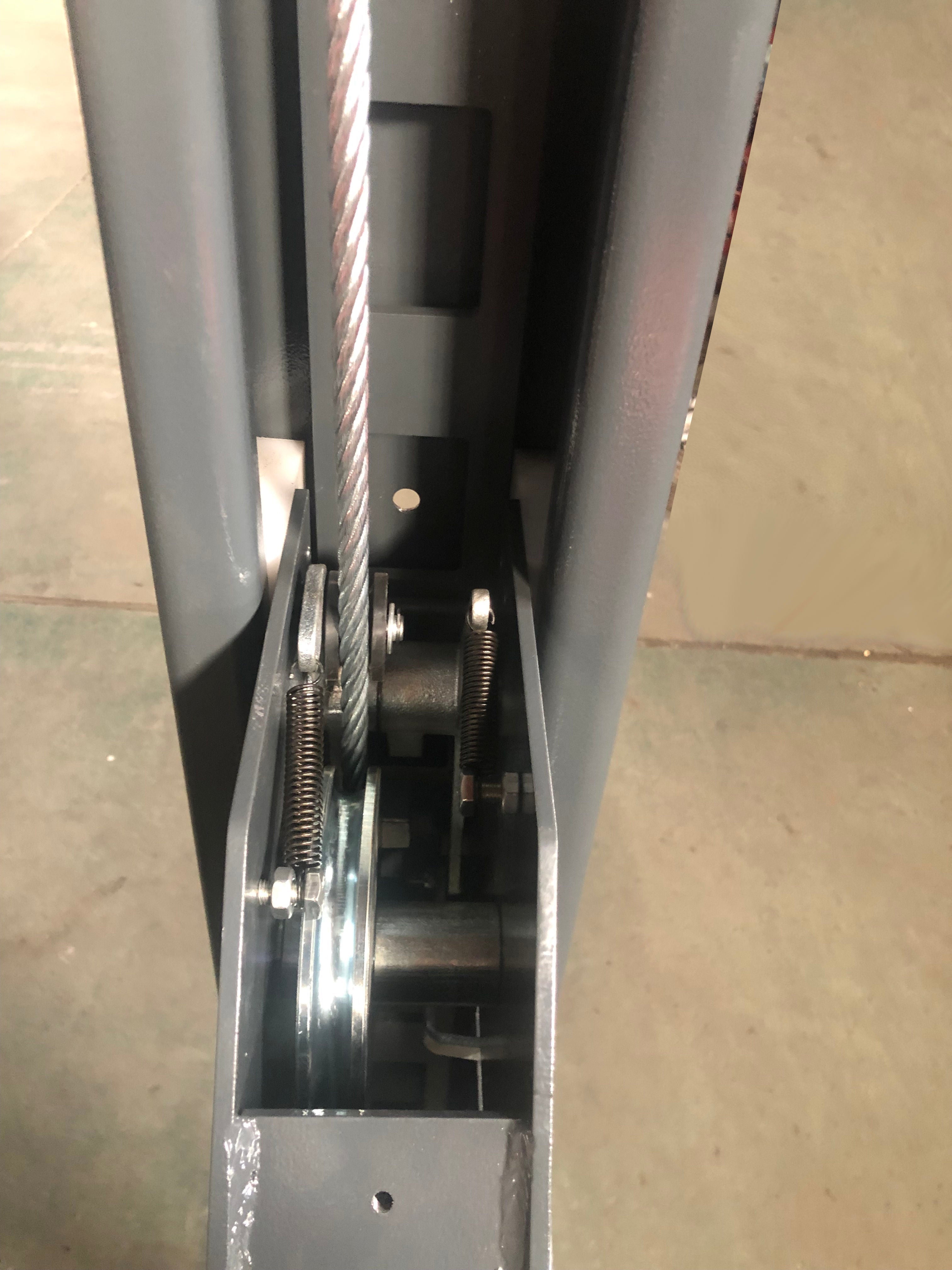

• Four mechanical locking devices, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure.

• Power side column can be installed at both sides, front or rear.

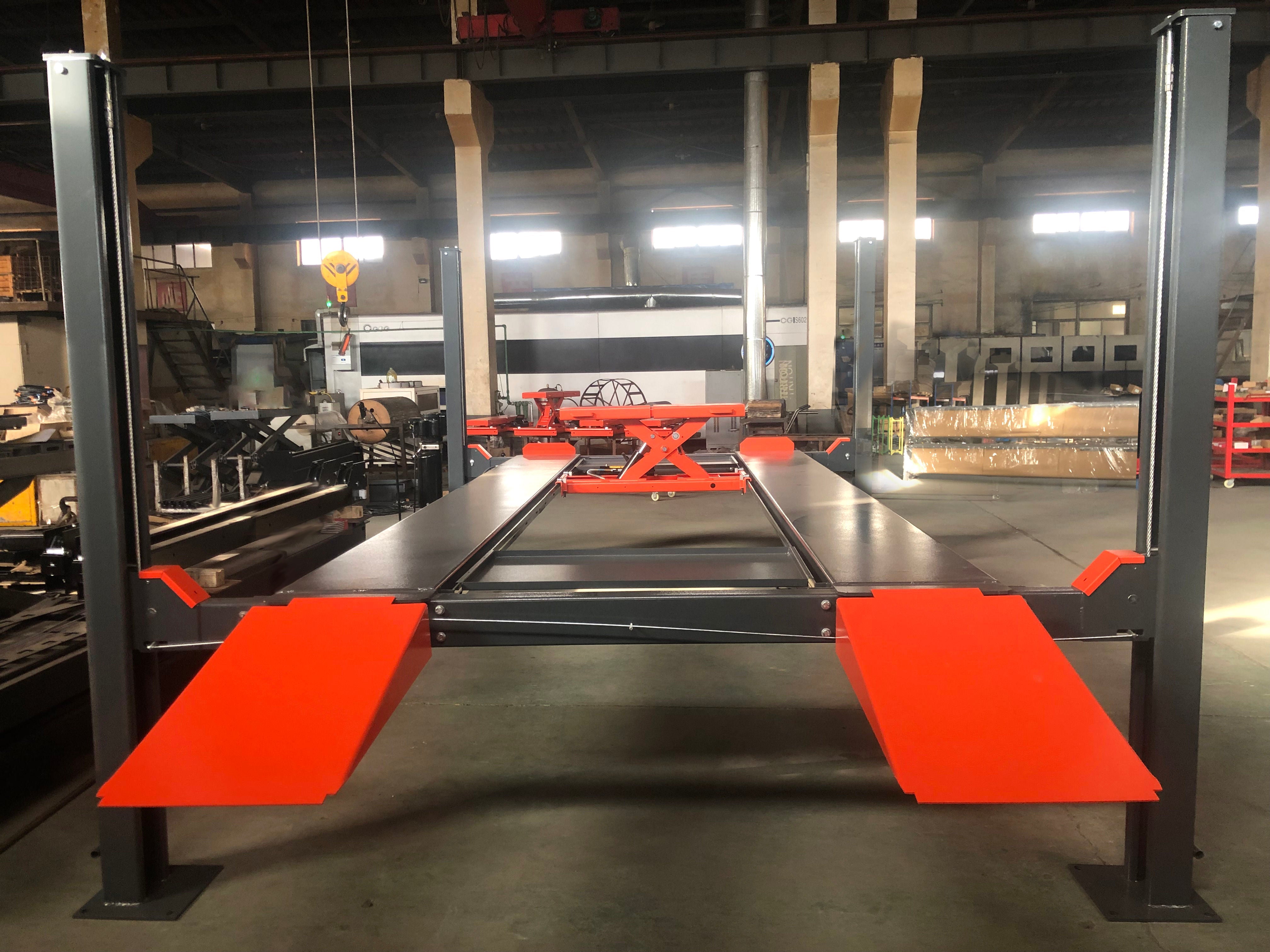

• Non-skid coated platforms and adjustable safety lock ladders.

• Optional caster kit for moving the lift around, and optional rolling jacks.
• *Rolling jacks and casters can be purchased separately but are not included. *

• Comes with two drip trays and a jack tray.

• High-quality hydraulic system with 110V/60HZ/1PH or 220V/60HZ/1PH (Optional)
• Customer must have forklift for unloading.

Specifications
