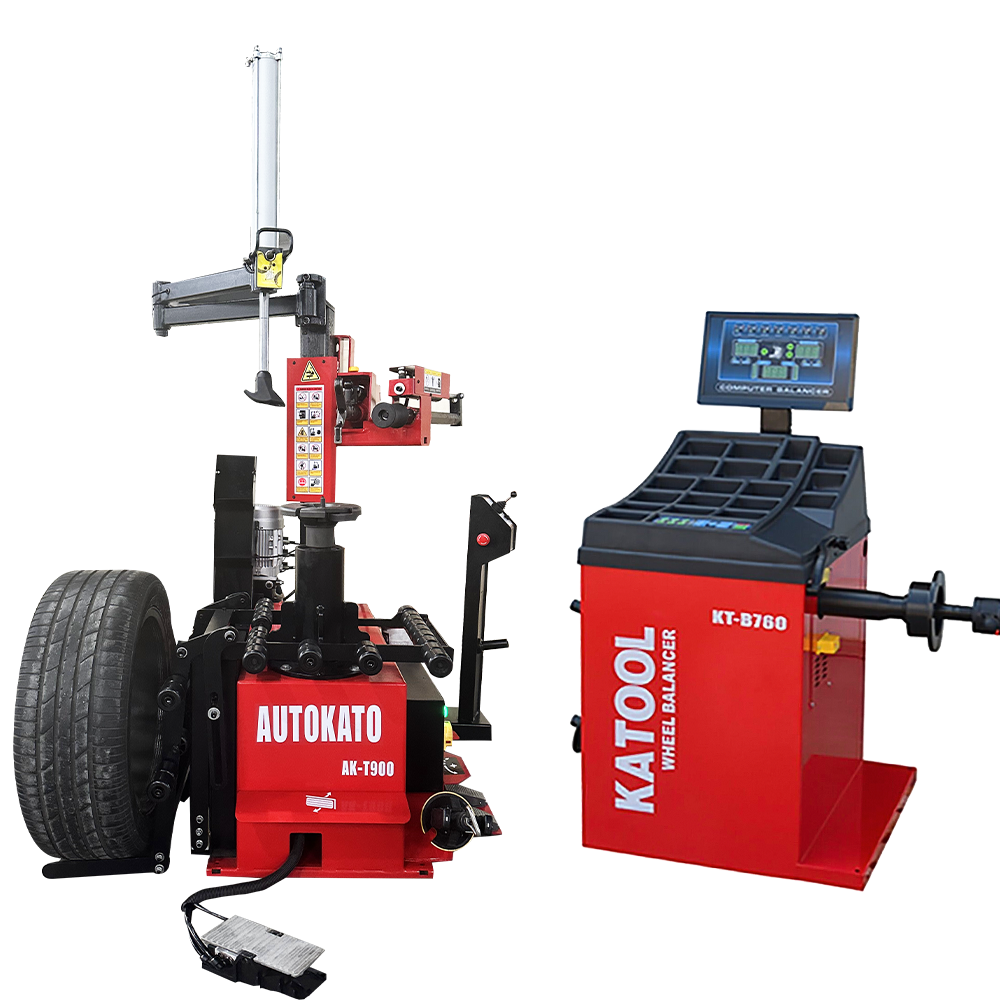

Katool AK-T900 Hydraulic Tire Changer and KT-B750 Wheel Balancer Combo
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout
Heavy-duty hydraulic construction with 0.12in steel body and a stainless steel leverless mounting head provides structural rigidity and rim protection. Dual-function combo combines the AK-T900 tire changer and KT-B750 balancer to streamline shop workflow and reduce manual handling. The changer accepts wheels up to 47in diameter and 16in width with a 12in–30in clamp range to cover passenger and light-truck rims. Hydraulic top-assist arm and assist wheel lift simplify work on run-flat and low-profile tires while reducing operator strain. Motor systems use copper-wound motors rated at 2HP gearbox and 1.5HP hydraulic power for consistent rotation and torque. The balancer supports rims under 30in diameter, wheel widths from 3in to 12in, and wheel weights up to 143 lb for typical shop duties. Operation requires 110–120V single-phase power and shop air at 116–145 psi for pneumatic functions. Changer rotation speed is 6.8 rpm and balancer spin speed is 180 rpm to keep cycle times efficient. Net equipment mass is 414 lb and the unit is intended to ship palletized; inspect freight carefully before signing delivery. Includes top assist arm, plastic mounting head cover, assist wheel lift, balancer accessories, optional wheel guard, and a 12-month parts warranty.
Features

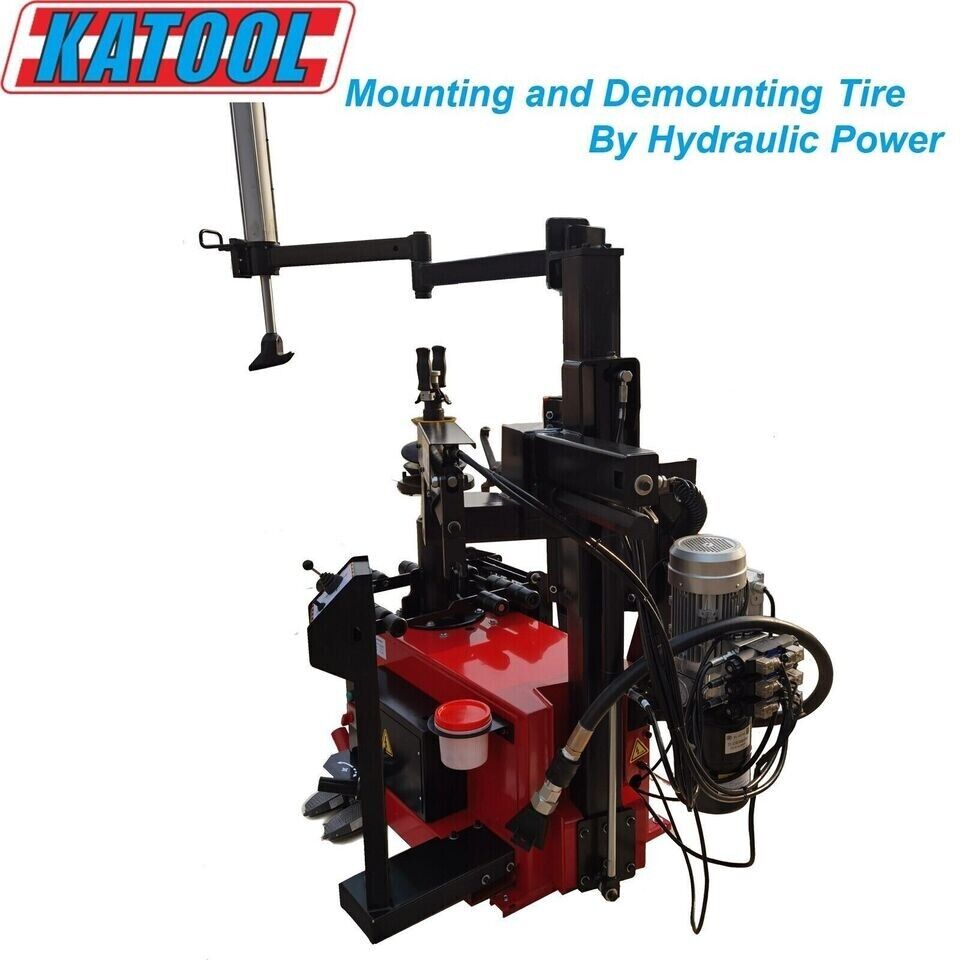

Tire Changer T900 Features:
- All hydraulic power system to work on all car wheels
- Built-in top assist arm allow you to change even difficult run flat and low-profile wheels
- Leverless design. Stainless steel mounting head and included plastic cover for protect rim
- Assist wheel lift device
- High quality motor with pure copper winding, low defect rate and longer life
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.
- High quality filter

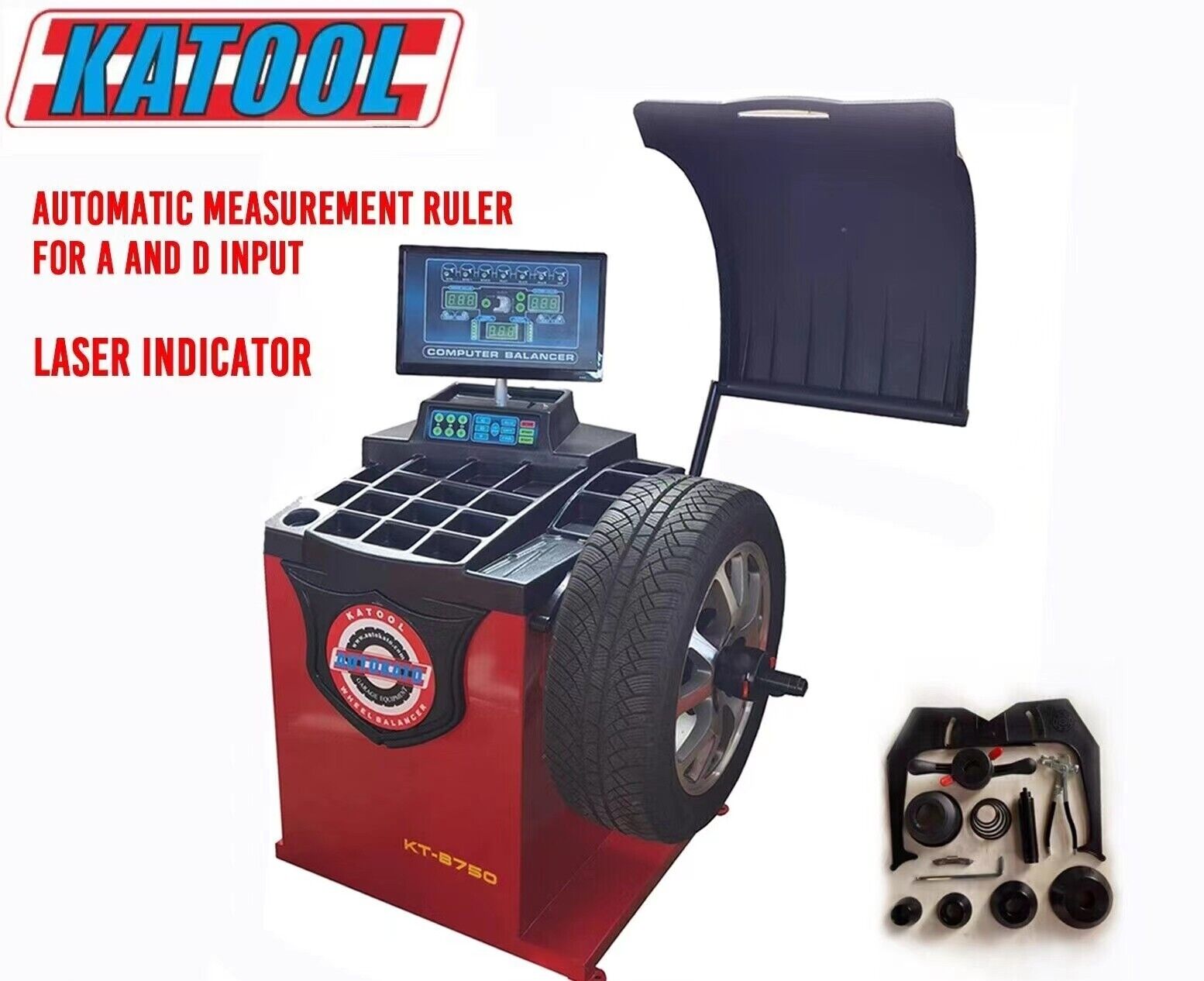

Wheel Balancer B750 Features:
- Automatic measurement ruler for auto input A and D values.
- The body uses 3mm thickness steel, offering high strength, solid welding, and minimal vibration.
- All-in-one pressure sensor support design with an 8mm thick bottom board and side board, ensuring stable and high-precision sensor performance.
- Top-level motor with pure copper winding for more power, faster heat dissipation, low defect rate, and longer lifespan.
- The 36mm shaft thread is treated with quenching for high strength.
- Top-level motor with pure copper winding for fast heat dissipation, low defect rate, and longer lifespan.
- The computer board uses advanced welding technology for moistureproof, dustproof, and anti-static properties, enhancing durability.
- Various balance modes tailored to different rims for precise balancing.
- Built-in fault diagnosis and self-calibration program with double-sided calibration, simplifying operation without requiring memory parameters.
- Unit selection for Ounce/Gram and MM/Inch measurements.
- High-quality integrated power board for stable and reliable performance.
- Optional wheel guard available.
- Longer shaft to accommodate wider wheels.
Specifications
KT-T900 Tire Changer Machine
|
Max wheel diameter:
|
47" / 1200 mm |
|
Max wheel width:
|
16" / 406 mm
|
|
Wheel clamp:
|
12"-30"
|
|
Power supply:
|
110V / 1PH / 60HZ
|
|
Gear Box Motor power :
|
1.5KW / 2HP
|
|
Hydraulic power :
|
1.1KW / 1.5HP
|
|
Rotation speed:
|
6.8r/min
|
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi)
|
|
Net weight :
|
188KG / 414 lbs
|
KT-B750 Wheel Balancer
|
Rim Diameter:
|
<30"
|
|
Wheel Width:
|
3"-12"
|
|
Wheel Diameter:
|
<880mm
|
|
Balancing Speed:
|
180rpm
|
|
Power Supply:
|
120V 1PH
|
|
Motor Power:
|
0.25KW
|
|
Rim Center Hole Dia.:
|
<135mm
|
|
Wheel Weight:
|
<65KG
|
|
Balancing Accuracy:
|
±1g
|
|
Measuring Time:
|
7S
|
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Heavy-duty hydraulic construction with 0.12in steel body and a stainless steel leverless mounting head provides structural rigidity and rim protection. Dual-function combo combines the AK-T900 tire changer and KT-B750 balancer to streamline shop workflow and reduce manual handling. The changer accepts wheels up to 47in diameter and 16in width with a 12in–30in clamp range to cover passenger and light-truck rims. Hydraulic top-assist arm and assist wheel lift simplify work on run-flat and low-profile tires while reducing operator strain. Motor systems use copper-wound motors rated at 2HP gearbox and 1.5HP hydraulic power for consistent rotation and torque. The balancer supports rims under 30in diameter, wheel widths from 3in to 12in, and wheel weights up to 143 lb for typical shop duties. Operation requires 110–120V single-phase power and shop air at 116–145 psi for pneumatic functions. Changer rotation speed is 6.8 rpm and balancer spin speed is 180 rpm to keep cycle times efficient. Net equipment mass is 414 lb and the unit is intended to ship palletized; inspect freight carefully before signing delivery. Includes top assist arm, plastic mounting head cover, assist wheel lift, balancer accessories, optional wheel guard, and a 12-month parts warranty.
Features
Tire Changer T900 Features:
- All hydraulic power system to work on all car wheels
- Built-in top assist arm allow you to change even difficult run flat and low-profile wheels
- Leverless design. Stainless steel mounting head and included plastic cover for protect rim
- Assist wheel lift device
- High quality motor with pure copper winding, low defect rate and longer life
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.
- High quality filter
Wheel Balancer B750 Features:
- Automatic measurement ruler for auto input A and D values.
- The body uses 3mm thickness steel, offering high strength, solid welding, and minimal vibration.
- All-in-one pressure sensor support design with an 8mm thick bottom board and side board, ensuring stable and high-precision sensor performance.
- Top-level motor with pure copper winding for more power, faster heat dissipation, low defect rate, and longer lifespan.
- The 36mm shaft thread is treated with quenching for high strength.
- Top-level motor with pure copper winding for fast heat dissipation, low defect rate, and longer lifespan.
- The computer board uses advanced welding technology for moistureproof, dustproof, and anti-static properties, enhancing durability.
- Various balance modes tailored to different rims for precise balancing.
- Built-in fault diagnosis and self-calibration program with double-sided calibration, simplifying operation without requiring memory parameters.
- Unit selection for Ounce/Gram and MM/Inch measurements.
- High-quality integrated power board for stable and reliable performance.
- Optional wheel guard available.
- Longer shaft to accommodate wider wheels.
Specifications
KT-T900 Tire Changer Machine
| Max wheel diameter: | 47" / 1200 mm |
| Max wheel width: | 16" / 406 mm |
| Wheel clamp: | 12"-30" |
| Power supply: | 110V / 1PH / 60HZ |
| Gear Box Motor power : | 1.5KW / 2HP |
| Hydraulic power : | 1.1KW / 1.5HP |
| Rotation speed: | 6.8r/min |
| Air Pressure : | 0.8-1.0Mpa(116-145psi) |
| Net weight : | 188KG / 414 lbs |
KT-B750 Wheel Balancer
| Rim Diameter: | <30" |
| Wheel Width: | 3"-12" |
| Wheel Diameter: | <880mm |
| Balancing Speed: | 180rpm |
| Power Supply: | 120V 1PH |
| Motor Power: | 0.25KW |
| Rim Center Hole Dia.: | <135mm |
| Wheel Weight: | <65KG |
| Balancing Accuracy: | ±1g |
| Measuring Time: | 7S |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
