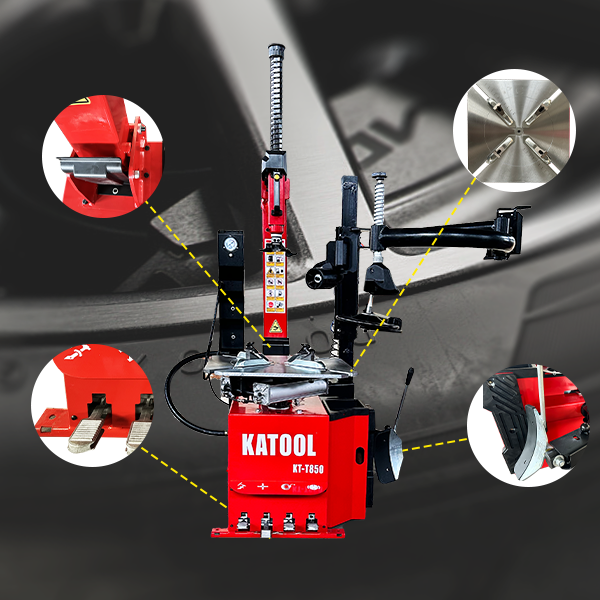

Katool KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine 47-inch Capacity
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout

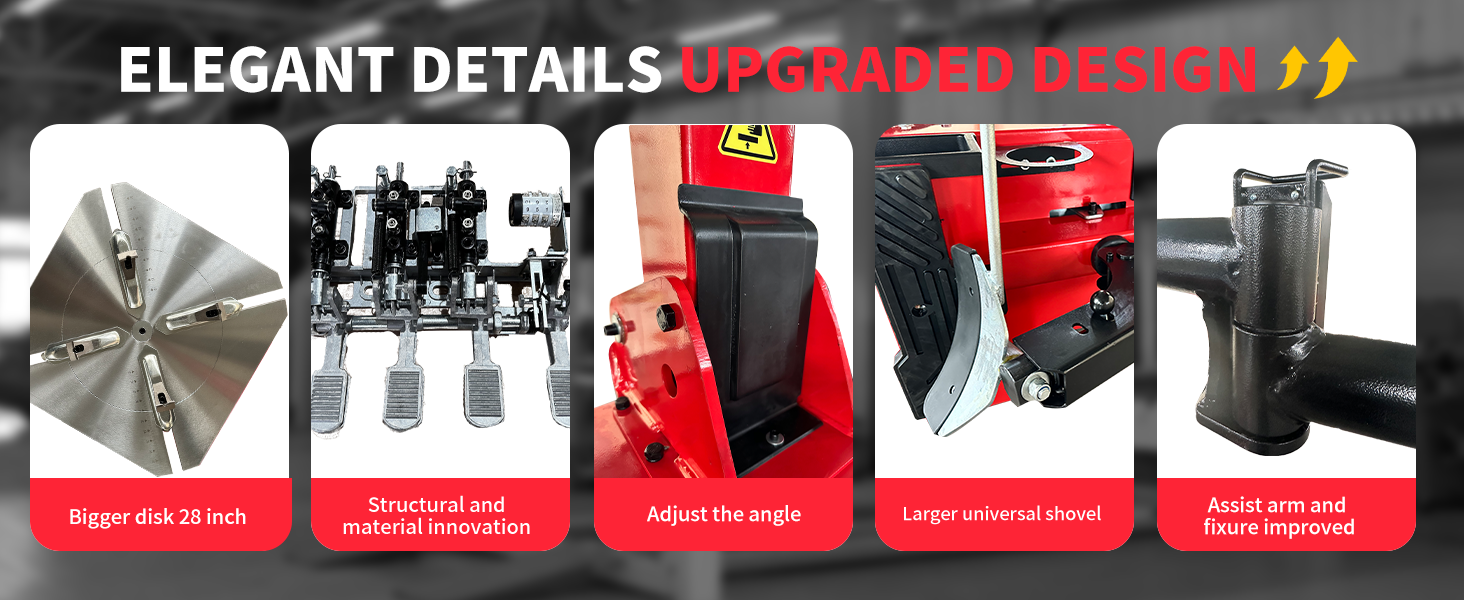

Heavy-duty alloy-steel jaws with carburization and quenching provide a hardened exterior and tenacious core to secure rims without deformation. The stainless-steel mounting head is polished and paired with protective plastic covers to minimize rim contact wear. Pull-style pedal controls and assist arms streamline bead seating and tire removal for efficient single-operator workflow. Integrated lubricator and air filtration protect pneumatic components and reduce maintenance intervals under regular use. A 2.0 HP motor with copper windings delivers steady torque at 6.8 rpm for reliable mounting and demounting. Outside clamp range 14–26 inches, inside clamp range 16–28 inches, and acceptance of wheels up to 47 inches diameter and 15 inches width support a broad range of passenger and light-truck wheels. The unit includes a 200mm aluminum bead-breaker cylinder and bead blast seater for rapid bead breaking on alloy and steel wheels. Designed for 110V single-phase power and 116–145 psi system pressure to integrate with standard North American shop infrastructure. Shipping and installation planning should account for the machine’s approximately 750 lb weight and freight-only delivery requirements. Includes mounting head protectors, jaw covers, assist arms, pedal control system, lubricator, and operator documentation to simplify setup and daily operation.
Features

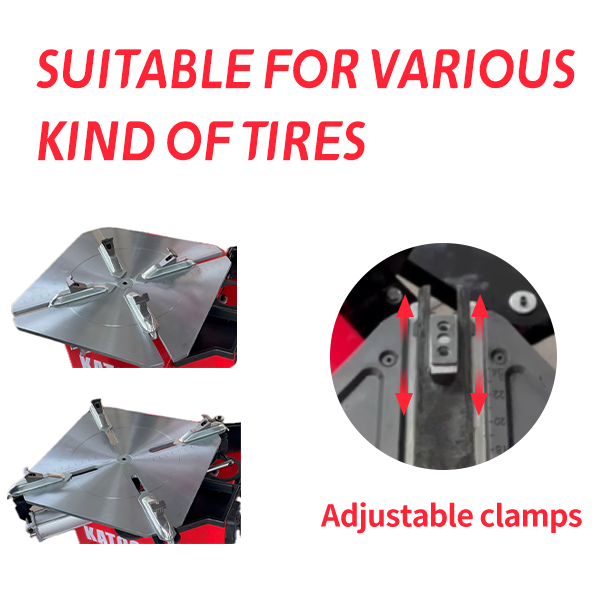

- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
- The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim
- The high-quality spade cover effectively prevents the rim from being damaged

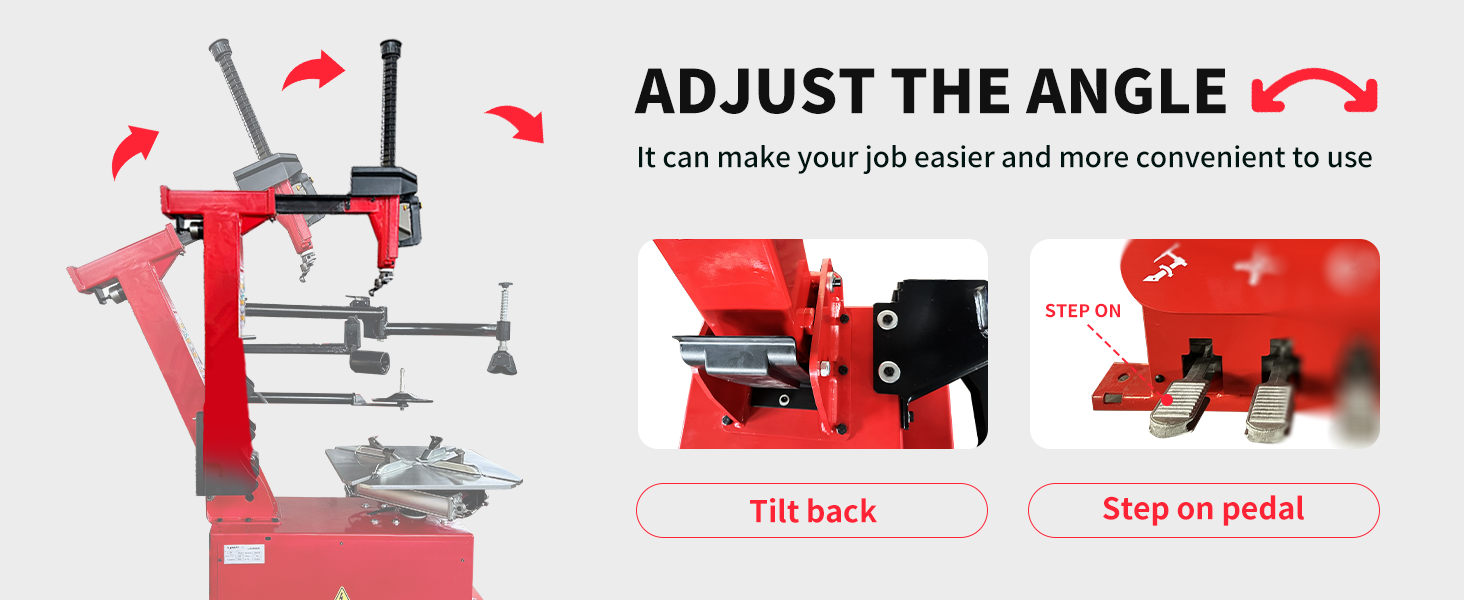

- Pull type pedal control system, easy for tire changing and maintenance
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life

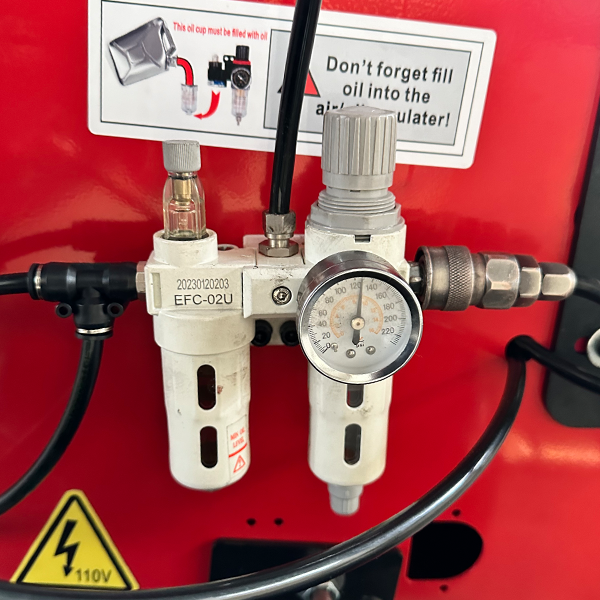

- The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended
- For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency
- Equipped with assist arms

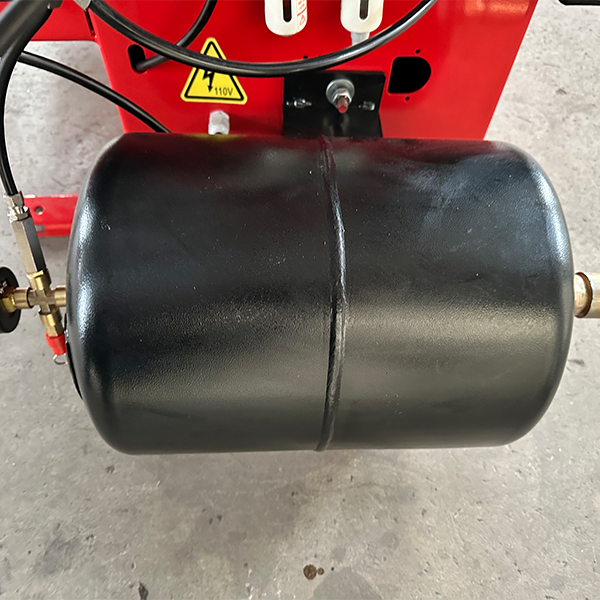

- Bead blast seater
- 200mm aluminum bead breaker cylinder
Specifications
| Jaw material | Alloy steel with 0.8–1.1 mm carburized case and quenching for hardened exterior and tenacious core |
| Mounting head | Stainless steel, polished interface with protective plastic cover to protect rims |
| Max wheel diameter | 47 in |
| Max wheel width | 15 in |
| Outside clamp range | 14–26 in |
| Inside clamp range | 16–28 in |
| Power supply | 110V, 1 PH |
| Motor power & speed | 2.0 HP (1.5 kW); 6.8 rpm |
| Included accessories | Assist arms; 200 mm aluminum bead-breaker cylinder; bead blast seater; lubricator; pedal controls; jaw protectors; operator documentation |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
Heavy-duty alloy-steel jaws with carburization and quenching provide a hardened exterior and tenacious core to secure rims without deformation. The stainless-steel mounting head is polished and paired with protective plastic covers to minimize rim contact wear. Pull-style pedal controls and assist arms streamline bead seating and tire removal for efficient single-operator workflow. Integrated lubricator and air filtration protect pneumatic components and reduce maintenance intervals under regular use. A 2.0 HP motor with copper windings delivers steady torque at 6.8 rpm for reliable mounting and demounting. Outside clamp range 14–26 inches, inside clamp range 16–28 inches, and acceptance of wheels up to 47 inches diameter and 15 inches width support a broad range of passenger and light-truck wheels. The unit includes a 200mm aluminum bead-breaker cylinder and bead blast seater for rapid bead breaking on alloy and steel wheels. Designed for 110V single-phase power and 116–145 psi system pressure to integrate with standard North American shop infrastructure. Shipping and installation planning should account for the machine’s approximately 750 lb weight and freight-only delivery requirements. Includes mounting head protectors, jaw covers, assist arms, pedal control system, lubricator, and operator documentation to simplify setup and daily operation.
Features
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
- The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim
- The high-quality spade cover effectively prevents the rim from being damaged
- Pull type pedal control system, easy for tire changing and maintenance
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life
- The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended
- For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency
- Equipped with assist arms
- Bead blast seater
- 200mm aluminum bead breaker cylinder
Specifications
| Jaw material | Alloy steel with 0.8–1.1 mm carburized case and quenching for hardened exterior and tenacious core |
| Mounting head | Stainless steel, polished interface with protective plastic cover to protect rims |
| Max wheel diameter | 47 in |
| Max wheel width | 15 in |
| Outside clamp range | 14–26 in |
| Inside clamp range | 16–28 in |
| Power supply | 110V, 1 PH |
| Motor power & speed | 2.0 HP (1.5 kW); 6.8 rpm |
| Included accessories | Assist arms; 200 mm aluminum bead-breaker cylinder; bead blast seater; lubricator; pedal controls; jaw protectors; operator documentation |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
