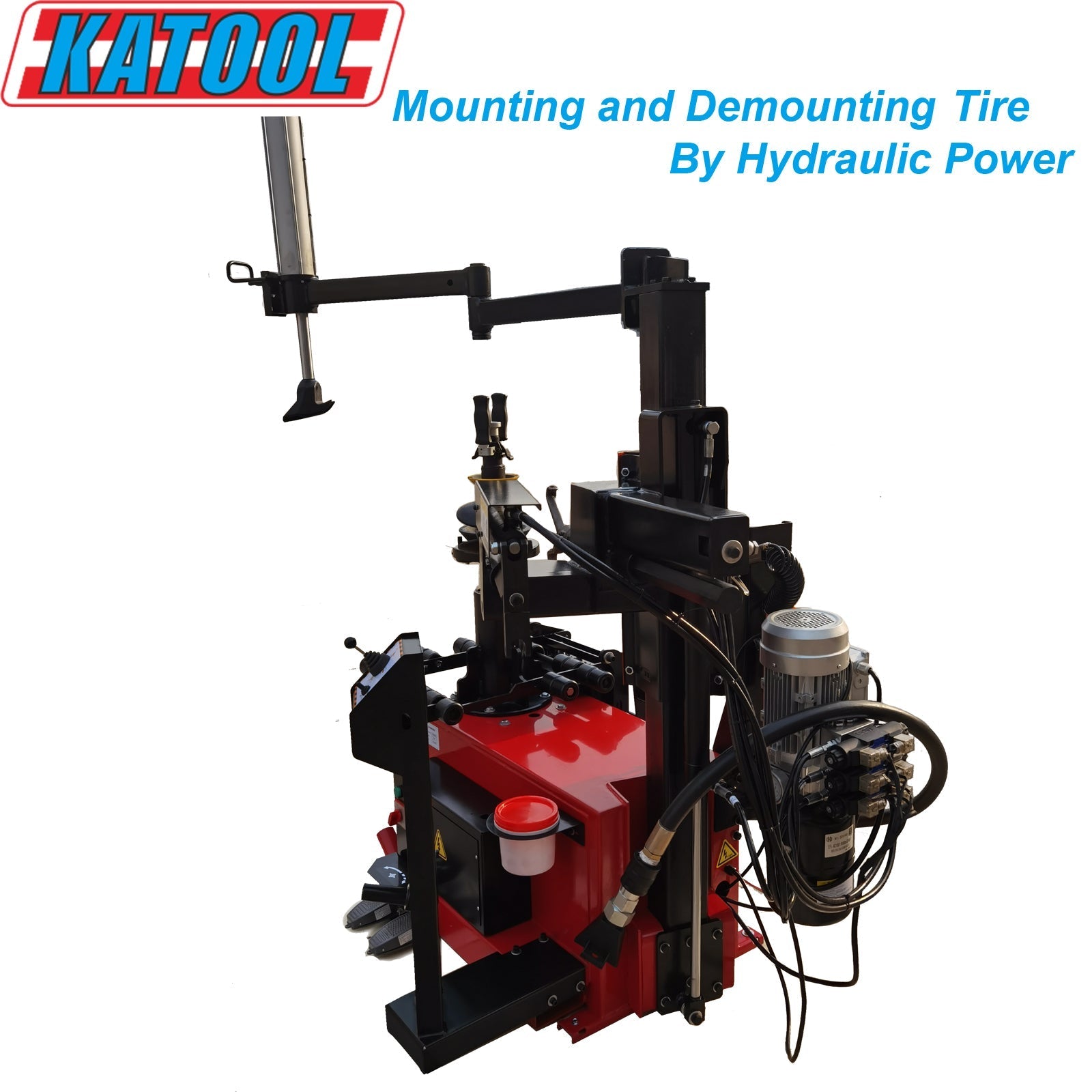

Katool KT-T900 2.0HP Hydraulic Center-Post Tire Changer with Wheel Lift
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout
Hydraulic power system handles a wide range of passenger and light-truck wheels with controlled torque and stable rotation. Built-in top assist arm and wheel-lift assistant enable safe mounting and demounting of low-profile and run-flat tires. Lever-less design and a stainless-steel mounting head reduce rim contact damage while the included plastic cover provides rim protection. Dual motors provide operational power: a 2.0HP gearbox motor for rotation and a 1.5HP hydraulic unit for bead breaking and tool movement. Pure copper winding in the motor improves heat dissipation and durability under continuous shop use. Accepts wheels up to 47 inches diameter and 16 inches wide with a clamping range of 12 to 30 inches for most passenger and light-truck rims. Rotation speed is 6.8 rpm and recommended operating air pressure is 116–145 psi for pneumatic controls. Unit ships freight; a forklift or unloading dock is recommended due to the machine's shipping weight and packaging requirements. Sturdy construction and serviceable components simplify routine maintenance and filter replacement to keep the hydraulic system clean. Controls and assist devices are arranged for efficient workflow in a commercial garage environment.
Features
- All hydraulic power systems for working on all types of car wheels
- The built-in top assist arm allows you to change even difficult run-flat and low-profile tires
- Lever-less design. Stainless steel mounting head and included plastic cover for protecting the rim
- Wheel lift assistant device
- High-quality motor with pure copper winding to ensure low defect rate and longer life
- Top-level motor and pure copper winding provide more power faster heat dissipation, lower defect rate, and longer service life
- High-quality filter
Specifications
| Mounting head material | Stainless steel |
| Motor winding | Pure copper |
| Max wheel diameter | 47 in (1200 mm) |
| Max wheel width | 16 in (406 mm) |
| Wheel clamp range | 12–30 in |
| Power supply | 110V / 1PH / 60Hz |
| Gearbox motor power | 2 HP / 1.5 kW |
| Hydraulic power | 1.5 HP / 1.1 kW |
| Included accessories | Top assist arm; Wheel lift assistant; Plastic mounting head cover; High-quality filter |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Resources
For more detailed information and guidance, you can download the following:
