Katool KT-T830 Tire Changer and KT-B700 Wheel Balancer Combo

The KT-T830 tire changer and KT-B700 wheel balancer form an integrated workshop solution for servicing passenger and light-truck wheels. Alloy-steel clamp jaws and a stainless-steel mounting head with rim-protective covers minimize rim damage during bead breaking and mounting. The tire changer accepts wheels up to 41 in diameter and 15 in width with 12–22 in outside and 14–24 in inside clamping ranges. A 7.32 in bead-breaker cylinder, pull-type pedal controls and an inflation gauge streamline single-operator changeovers. The balancer supports rims under 30 in, wheel diameters to ~34.6 in and wheel weights up to 143 lb with a 180 rpm spin speed and ±1 g balance accuracy. Both machines operate on 120 V single-phase power and use high-quality motors with copper windings for improved heat dissipation and longevity. Pneumatic components include an inline lubricator and filtered air supply to extend service intervals. Technician-focused features such as double-side assist arms, optional wheel guard and automatic self-calibration reduce service time and setup. Freight delivery is required for this combo; commercial unloading equipment (forklift/dock) is recommended for safe receipt.

Features

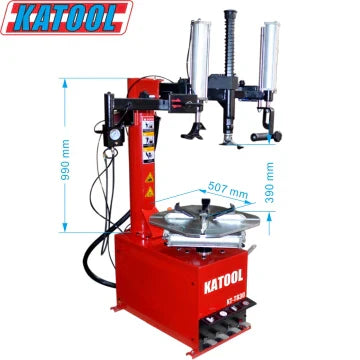

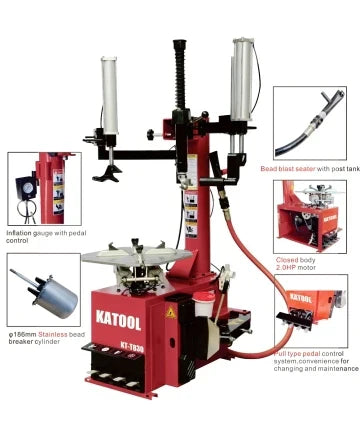

KT-T830 Wheel Clamp Tire Changer Machine

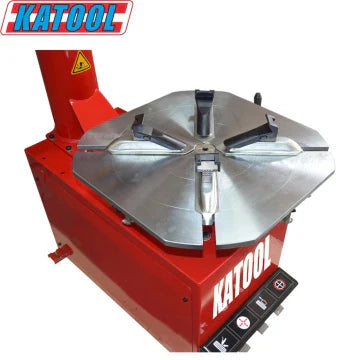

• Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim

• The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim

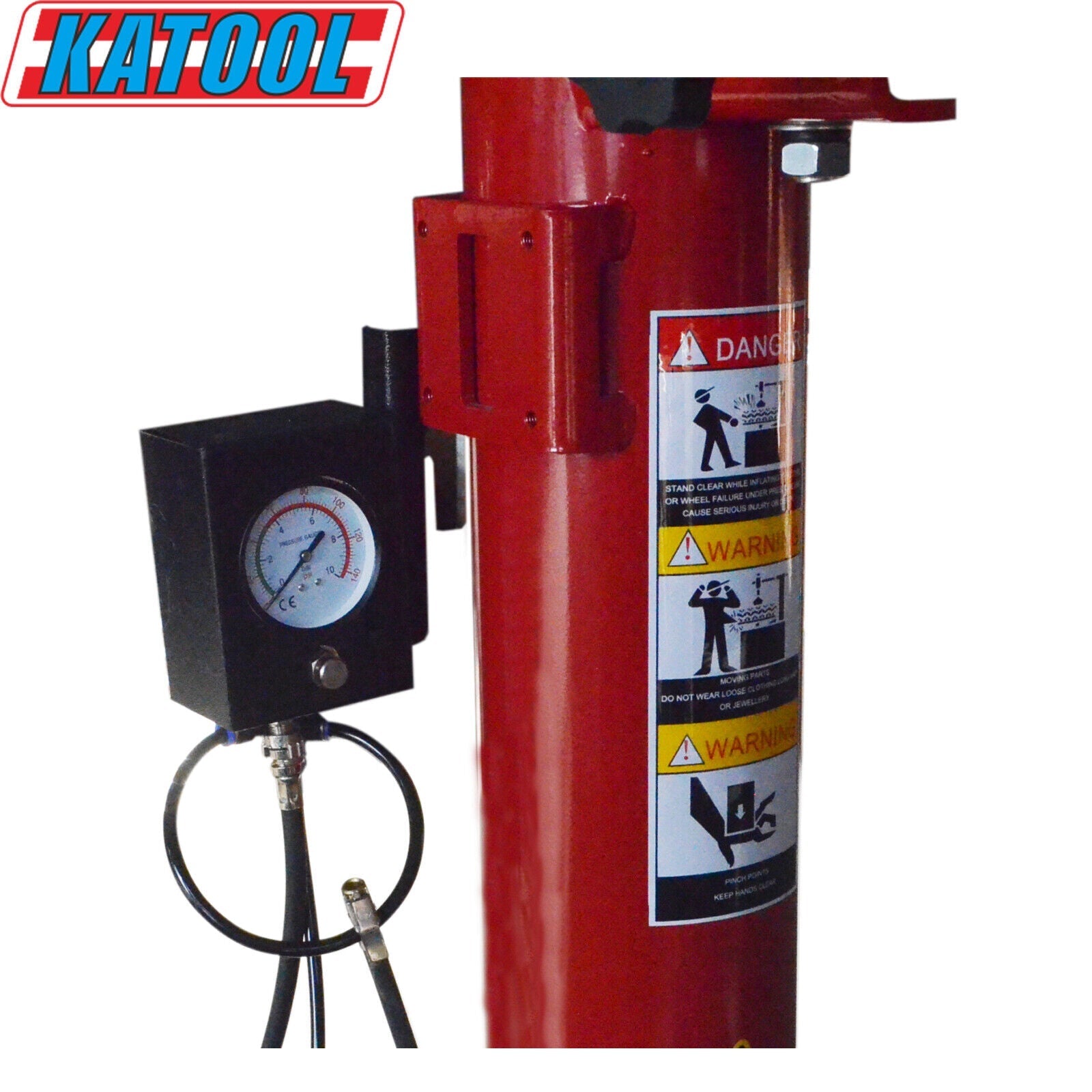

• Inflation gauge with pedal control

• The high-quality spade cover effectively prevents the rim from being damaged

• Pull type pedal control system, easy for tire changing and maintenance

• Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life

• The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended

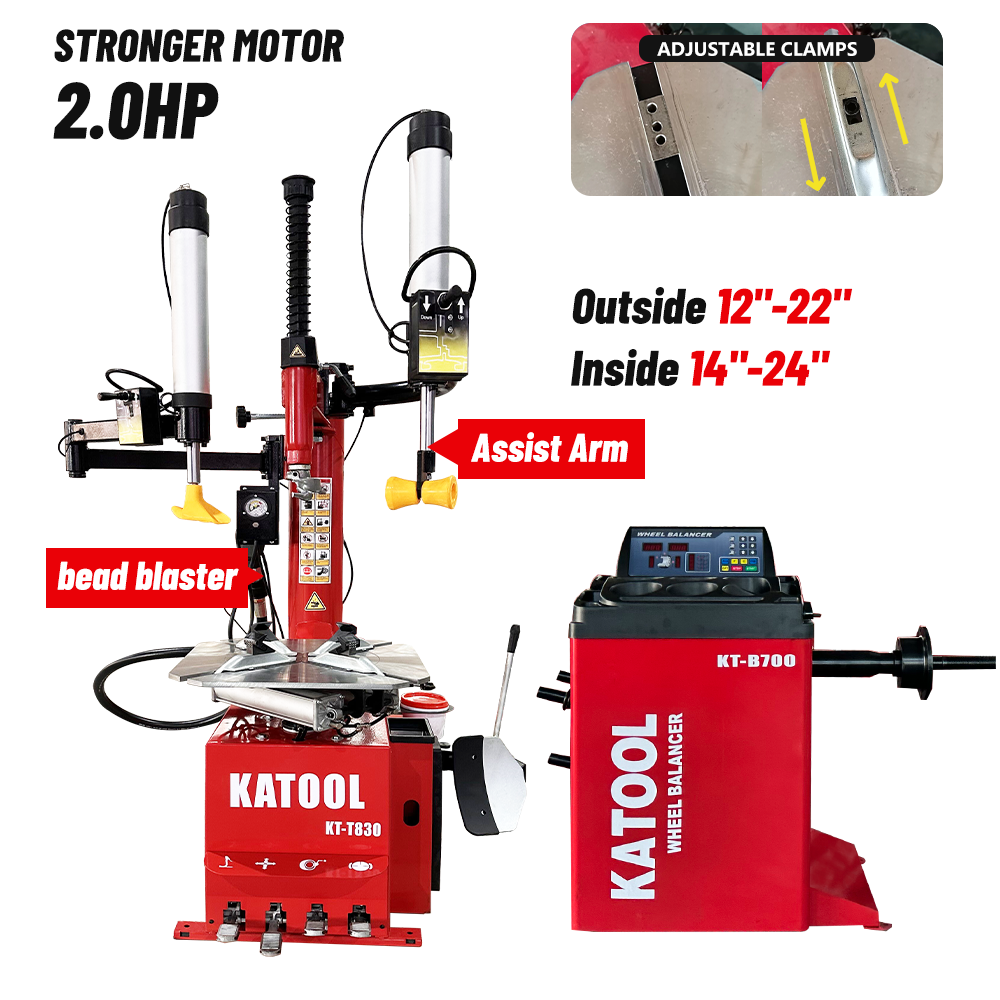

• For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency

• Double side assist arm

• Bead blast seater head with post tank

• 186mm / 7.32" stainless bead breaker cylinder

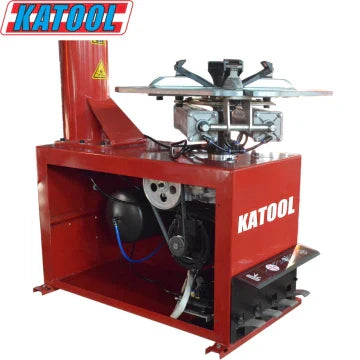

• Closed body for the protection of the parts inside



KT-B700 Wheel Balancer

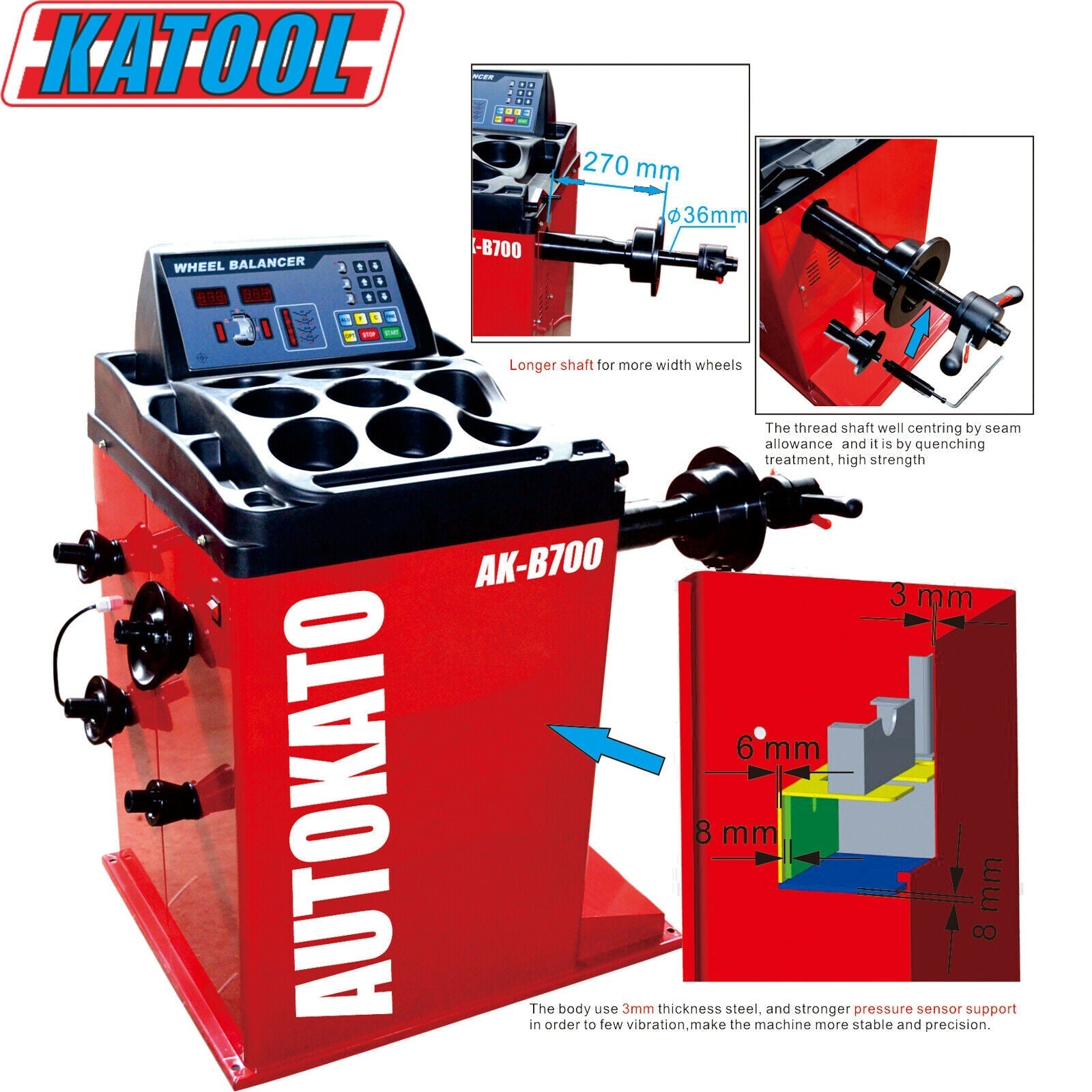

• The body uses 3mm-thick steel with high strength, solid welding and low vibration

• All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision

• Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life

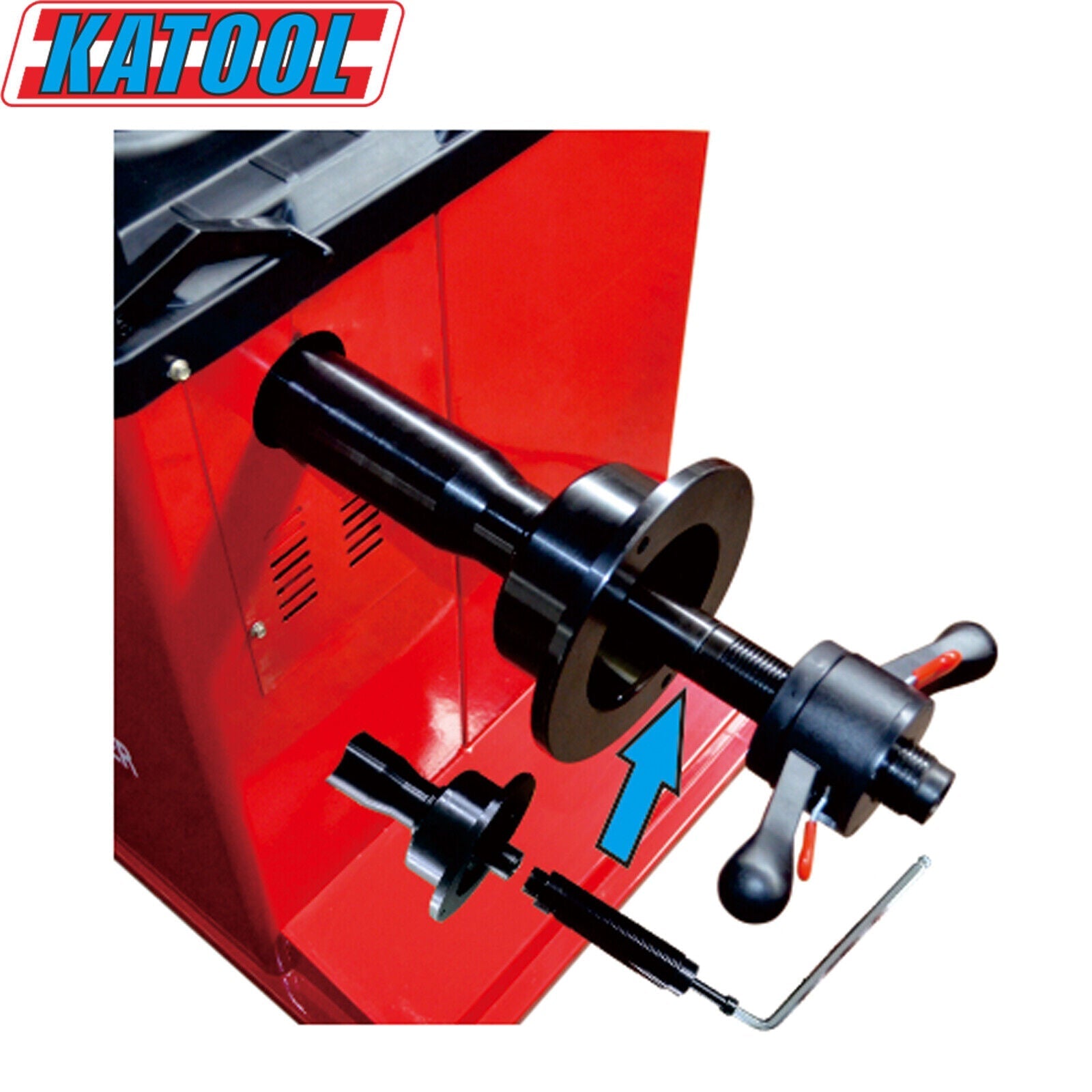

• The 36mm shaft thread is made by quenching treatment to offer high strength

• The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic

• Various balance mode for different types of rims to provide more precision

• Built-in fault diagnosis and self-calibration program with double side calibration. No preset parameters so the users can operate with ease

• Unit selection (Ounce/Gram, MM/Inch)

• High quality integration power board, working stable and reliable

• Optional wheel guard

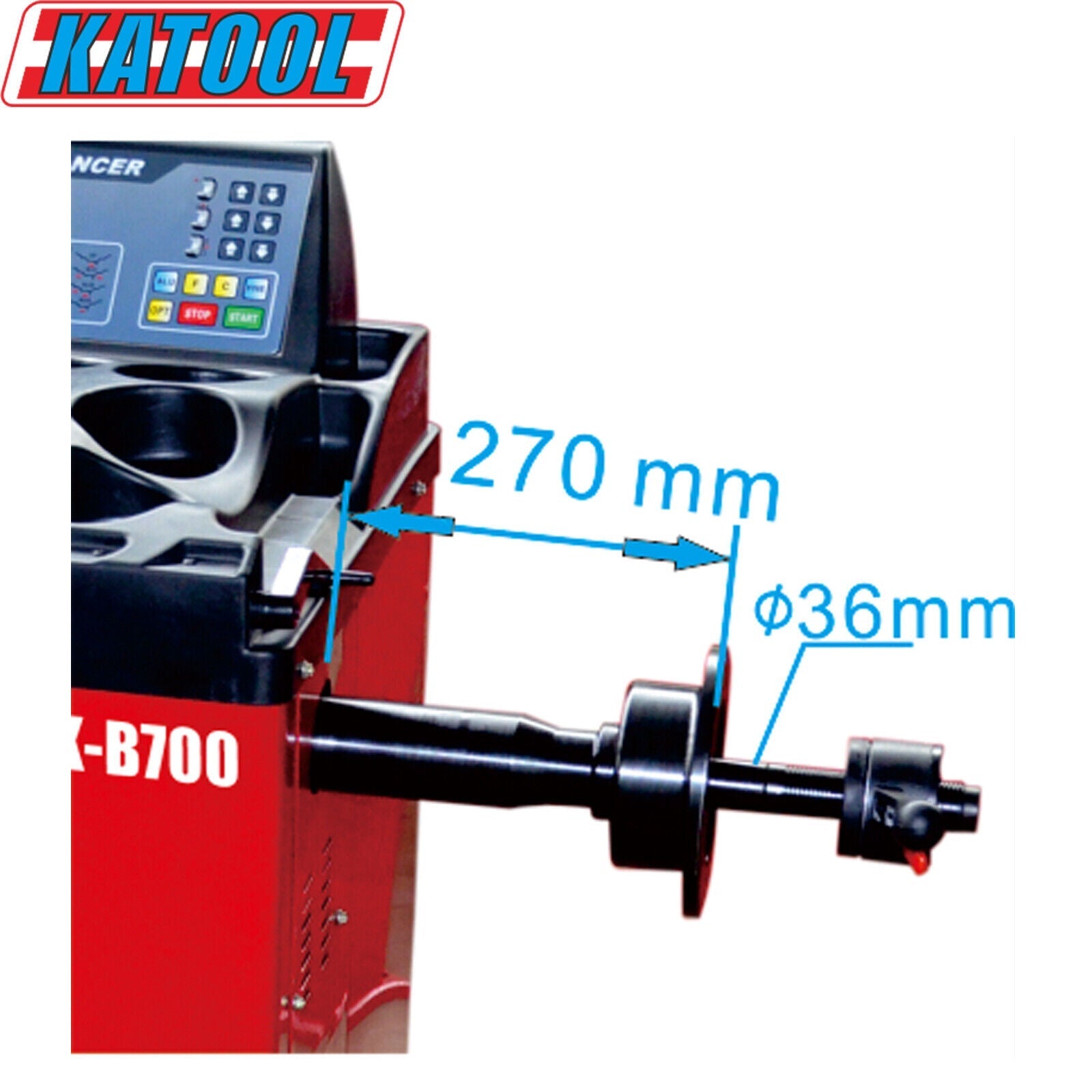

• Longer shaft also compatible with wider wheels

Specifications

KT-T830 Wheel Clamp Tire Changer Machine

KT-B700 Wheel Balancer
