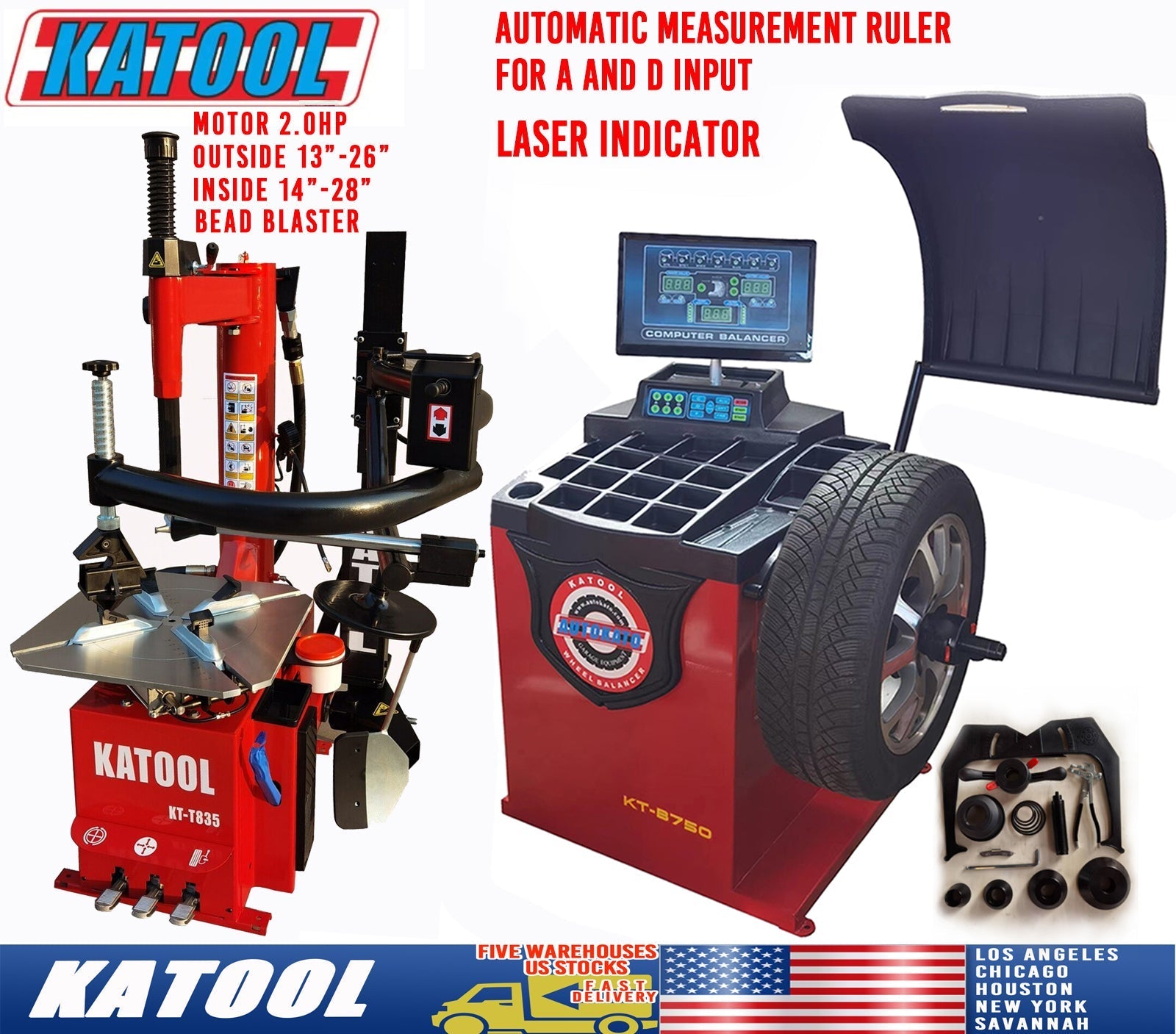

Katool KT-T835 Tire Changer and KT-B750 Wheel Balancer Combo
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout
This Katool combo pairs a heavy-duty tire changer with an automatic wheel balancer to streamline shop tire and wheel service. The tire changer uses carburized alloy-steel jaws and a stainless, polished mounting head with protective plastic covers to minimize rim damage. A 2.0 HP motor with copper winding provides consistent torque for fast bead breaking and mounting operations. The changer includes a φ186 mm stainless bead-breaker cylinder and pedal-operated inflation with gauge for controlled seating. The balancer features a 3 mm steel cabinet, an 8 mm base plate for stable sensors, and a φ36 mm hardened shaft for broad rim support. Controls offer automatic A/D measurement input, selectable balance modes, and built-in calibration and fault diagnosis. Both units require 110V single-phase power; the balancer operates up to 180 rpm with ±1 g balancing accuracy. Pneumatic system filtration and a closed-body design protect internal components and extend service life. Net shipping weight is listed at 1200 lb; arrange freight delivery with unloading equipment and confirm commercial delivery to avoid residential surcharges. Included are the tire changer, wheel balancer, standard mounting tools, protective covers, and user manuals; professional installation and secure floor anchoring are recommended.
Features
KT-T835 Wheel Clamp Tire Changer Machine
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim
- The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, with plastic cover for protect rim
- Inflation gauge with pedal control
- With high quality spade cover, effective prevent damage rim
- Pull type pedal control system, convenience for changing and maintenance
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
- With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system
- For North America region used 110V/1ph/2.0HP motor ,more strong power and high efficiency working

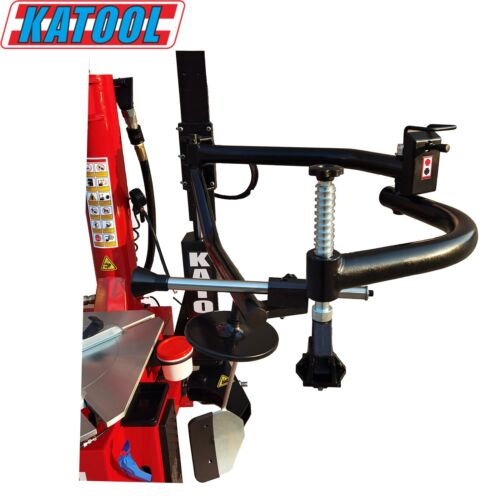

- Double side assist arm
- Bead blast seater head with post tank
- 186mm stainless bead breaker cylinder
- Closed body for protect inside parts

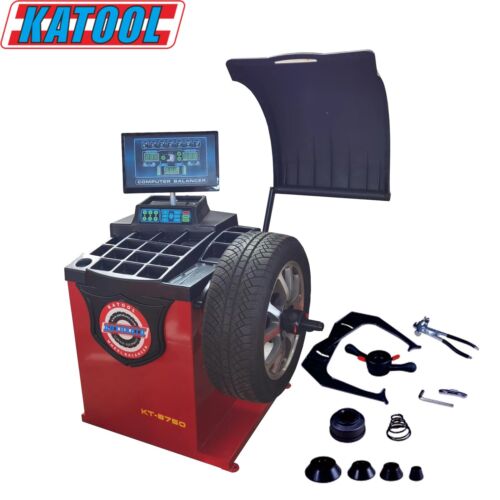

KT-B750 Wheel Balancer
- Automatic measurement ruler for auto input A and D values
- The body use 3mm thickness steel, high strength, solid welding, few vibration
- All-in-one pressure sensor support design, bottom board thickness 8mm, side board thickness 8mm, that insure the sensor working stable and high precision
- Top level motor and pure copper winding, more power, fast heat dissipation, low defect rate and longer using life
- The 36mm shaft thread is by quenching treatment, high strength
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
- The computer board adopt advanced welding technology, moisture proof, dustproof and anti-static electricity, more longer life
- Various balance mode, according different rim for different balance mode, make the balance effect more precision
- Built-in fault diagnosis and self calibration program that double side calibration, no memory parameters, operation more easy
- Unit selection(Ounce/Gram, MM/Inch)
- High quality integration power board, working stable and reliable
- Wheel guard for optional
- Longer shaft for more width wheels
Specifications
KT-T835 Wheel Clamp Tire Changer Machine
|
Max Wheel Diameter :
|
41"/1040mm
|
|
Max Wheel Width :
|
15"/350mm
|
|

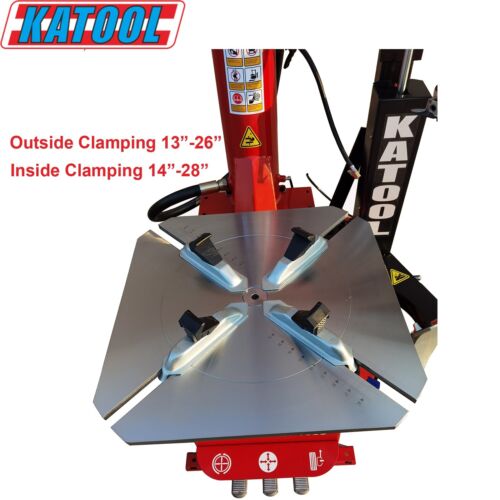

Outside Clamp:
|
13"-26"
|
|
Inside Clamp :
|
14"-28"
|
|
Power Supply:
|
110V 1PH/60HZ
|
|
Motor Power:
|
2.0HP/1.5KW
|
|
Rotation Speed :
|
6.1/min
|
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi)
|
|
Net weight :
|
582lbs
|
KT-B750 Wheel Balancer
|
Rim Diameter:
|
<30"
|
|
Wheel Width:
|
3"-12"
|
|
Wheel Diameter:
|
<880mm
|
|
Balancing Speed:
|
180rpm
|
|
Power Supply:
|
120V 1PH
|
|
Motor Power:
|
0.25KW
|
|
Rim Center Hole Dia.:
|
<135mm
|
|
Wheel Weight:
|
<65KG
|
|
Balancing Accuracy:
|
1g
|
|
Measuring Time:
|
7S
|
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
This Katool combo pairs a heavy-duty tire changer with an automatic wheel balancer to streamline shop tire and wheel service. The tire changer uses carburized alloy-steel jaws and a stainless, polished mounting head with protective plastic covers to minimize rim damage. A 2.0 HP motor with copper winding provides consistent torque for fast bead breaking and mounting operations. The changer includes a φ186 mm stainless bead-breaker cylinder and pedal-operated inflation with gauge for controlled seating. The balancer features a 3 mm steel cabinet, an 8 mm base plate for stable sensors, and a φ36 mm hardened shaft for broad rim support. Controls offer automatic A/D measurement input, selectable balance modes, and built-in calibration and fault diagnosis. Both units require 110V single-phase power; the balancer operates up to 180 rpm with ±1 g balancing accuracy. Pneumatic system filtration and a closed-body design protect internal components and extend service life. Net shipping weight is listed at 1200 lb; arrange freight delivery with unloading equipment and confirm commercial delivery to avoid residential surcharges. Included are the tire changer, wheel balancer, standard mounting tools, protective covers, and user manuals; professional installation and secure floor anchoring are recommended.
Features
KT-T835 Wheel Clamp Tire Changer Machine
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim
- The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, with plastic cover for protect rim
- Inflation gauge with pedal control
- With high quality spade cover, effective prevent damage rim
- Pull type pedal control system, convenience for changing and maintenance
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
- With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system
- For North America region used 110V/1ph/2.0HP motor ,more strong power and high efficiency working
- Double side assist arm
- Bead blast seater head with post tank
- 186mm stainless bead breaker cylinder
- Closed body for protect inside parts
KT-B750 Wheel Balancer
- Automatic measurement ruler for auto input A and D values
- The body use 3mm thickness steel, high strength, solid welding, few vibration
- All-in-one pressure sensor support design, bottom board thickness 8mm, side board thickness 8mm, that insure the sensor working stable and high precision
- Top level motor and pure copper winding, more power, fast heat dissipation, low defect rate and longer using life
- The 36mm shaft thread is by quenching treatment, high strength
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
- The computer board adopt advanced welding technology, moisture proof, dustproof and anti-static electricity, more longer life
- Various balance mode, according different rim for different balance mode, make the balance effect more precision
- Built-in fault diagnosis and self calibration program that double side calibration, no memory parameters, operation more easy
- Unit selection(Ounce/Gram, MM/Inch)
- High quality integration power board, working stable and reliable
- Wheel guard for optional
- Longer shaft for more width wheels
Specifications
KT-T835 Wheel Clamp Tire Changer Machine
| Max Wheel Diameter : | 41"/1040mm |
| Max Wheel Width : | 15"/350mm |
| Outside Clamp: | 13"-26" |
| Inside Clamp : | 14"-28" |
| Power Supply: | 110V 1PH/60HZ |
| Motor Power: | 2.0HP/1.5KW |
| Rotation Speed : | 6.1/min |
| Air Pressure : | 0.8-1.0Mpa(116-145psi) |
| Net weight : | 582lbs |
KT-B750 Wheel Balancer
| Rim Diameter: | <30" |
| Wheel Width: | 3"-12" |
| Wheel Diameter: | <880mm |
| Balancing Speed: | 180rpm |
| Power Supply: | 120V 1PH |
| Motor Power: | 0.25KW |
| Rim Center Hole Dia.: | <135mm |
| Wheel Weight: | <65KG |
| Balancing Accuracy: | 1g |
| Measuring Time: | 7S |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
