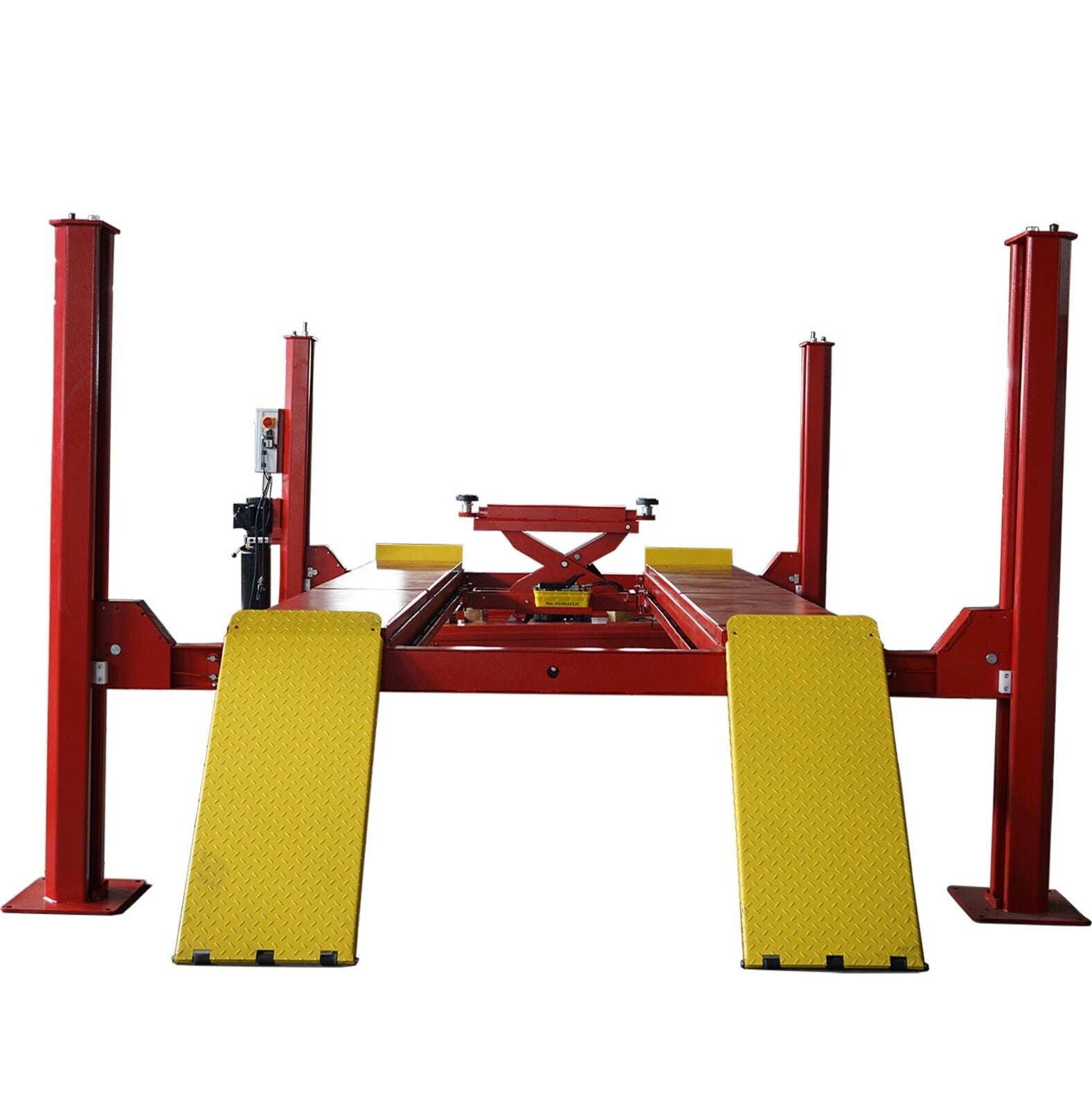

A 15,000 lb-capacity four-post alignment lift engineered for commercial and high-capacity home garages. Heavy-gauge steel posts and runways support large trucks and SUVs while maintaining structural rigidity. Diamond-textured ramps and non-slip coated runways provide secure wheel contact during service and storage. The hydraulic system with a 3 kW motor delivers controlled lifting and lowering; typical cycle times are 95 seconds up and 55 seconds down. Multiple spring-loaded safety locks engage continuously as the lift rises and a secondary slack-cable lock adds redundancy. Adjustable height locking positions and a pneumatic push-button release enable quick, synchronized unlock of all four posts. Power side column placement is configurable to left, right, front, or rear to suit shop layouts. Includes a 6,000 lb rolling jack for axle-level lifting during alignment or tire service. Concrete foundation must meet the specified minimum thickness and strength for safe installation; professional installation is recommended. A 12-month parts warranty is provided to cover manufacturing defects.
*Concrete thickness must be at least 3.93” (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
Features
- 15000lbs lifting capacity.
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
- Spring-loaded safety locks automatically engage continuously as the lift is raised. For added safety, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure.
- Equipped with multiple adjustable height locking positions for variable-height positioning. A convenient push-button pneumatic safety lock control releases all four independent safety locks simultaneously.
- Power side column can be installed at both sides, front or rear.
- Non-skid diamond texture ramps and non-slip coated runways.
- One 6000lbs rolling jack is included.

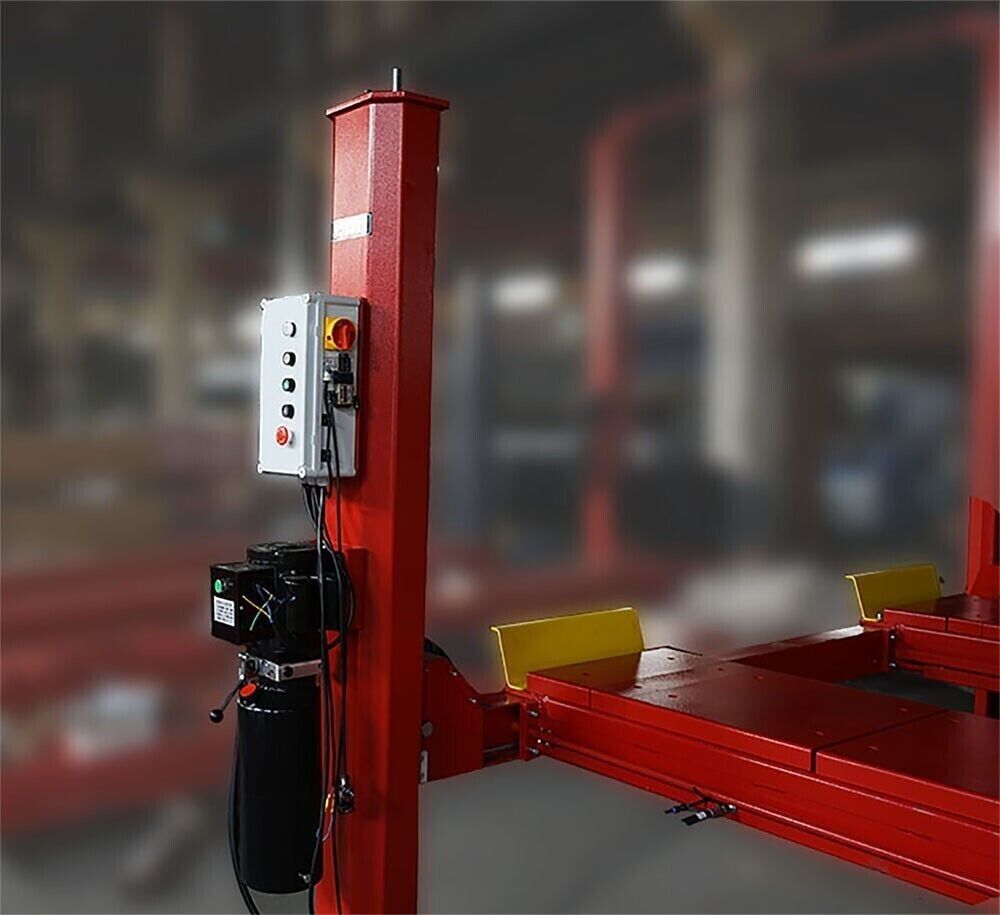

- High-quality hydraulic system, 3KW motor with 220V/60HZ/1PH or 110V/60HZ/1PH (Optional)

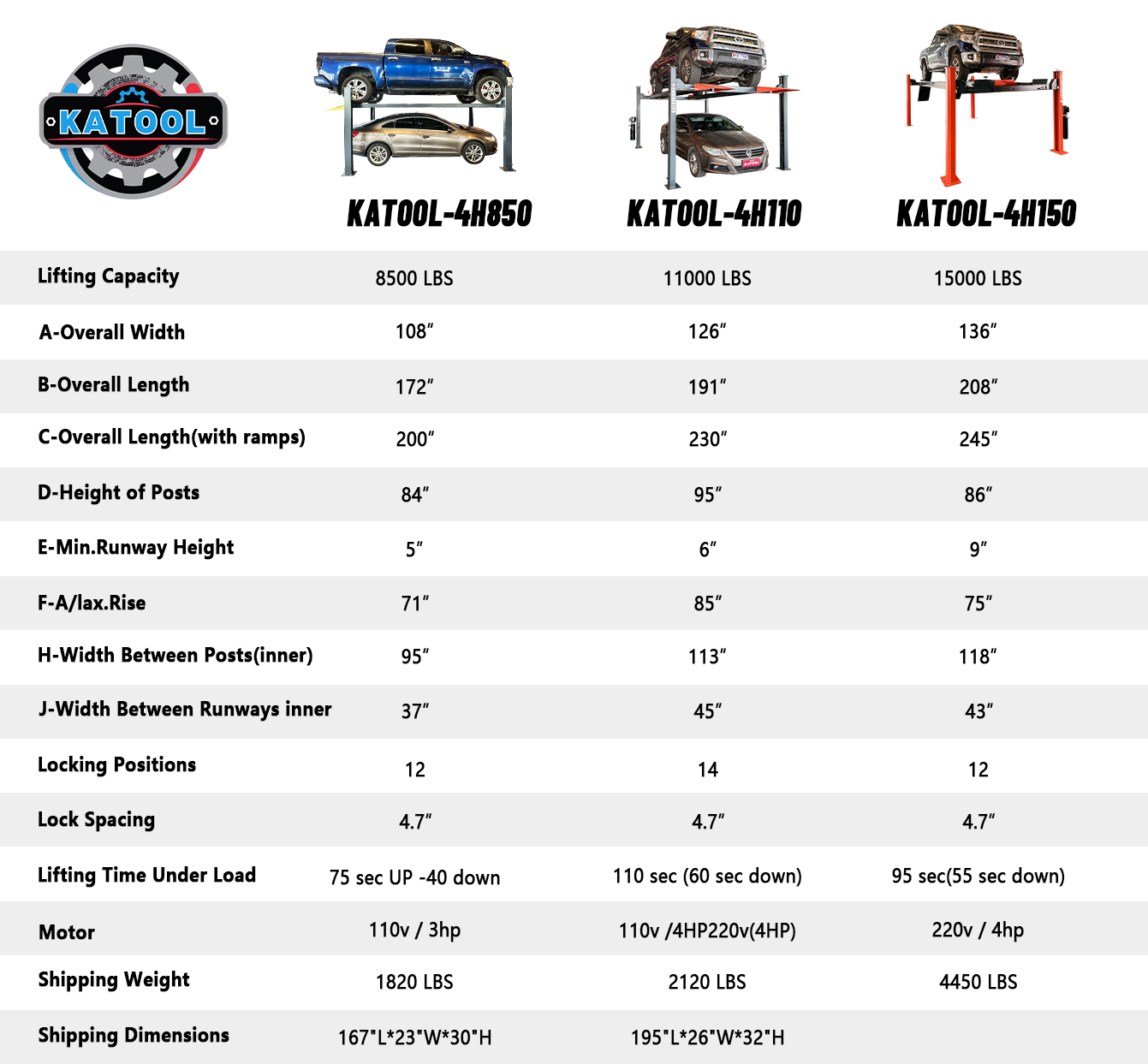

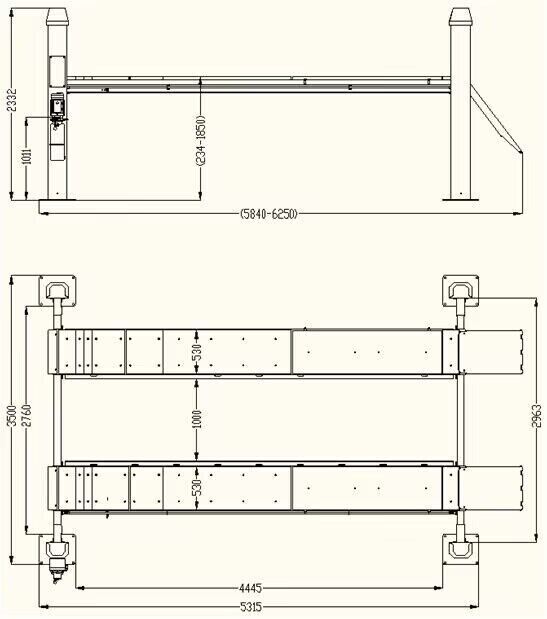

Specifications
| Lifting Capacity | 15000 lbs |
| Max. Lifting Height | 75"/1905mm |
| Lifting Time | 95s Up / 55s Down |
| Height of Posts | 86"/2184mm |
| Width Overall | 136"/3454mm |
| Length Overall |
208"/5283mm |
| Overall Length(with ramps) | 245"/6223mm |
| Min. Runway Height |
9"/228mm |
| Motor | 220VAC/4PH |
| Net Weight | 4450lbs |
Warranty
Katool provides a 1-year limited warranty on all parts and product defects. Additionally, vehicle lifts include a 3-year warranty on structural components. Optional 2-year extended warranty plans are also available.
Warranty Includes:
- Cylinders, power units, motors, displays, and electronics.
- Structural components for vehicle lifts.
Warranty Conditions:
- Claims must fall within the warranty period and are non-transferable.
- Replacement parts are provided free of charge, including shipping.
- Labor costs are not included in the warranty.
- Disassembly of equipment prior to warranty approval is not permitted.
All warranty claims are subject to review by the warranty/service department. Supporting documentation, such as photos or videos of defects, may be required for approval.
Resources
For detailed installation instructions, safety guidelines, and operating procedures, please refer to the Katool KT-4H150 User Manual. Click the link below to download:
Installation
*Concrete Requirements: Ensure a minimum concrete thickness of 3.93 inches (100 mm) with a 3,000 PSI rating. Failure to meet these requirements could result in serious injury or death.
