Katool KT-4H120X 12,000 lb Four-Post Vehicle Lift 220V
over $250
100% Satisfaction
Guarantee
Authorized
Dealer
Guarantee SAFE Checkout

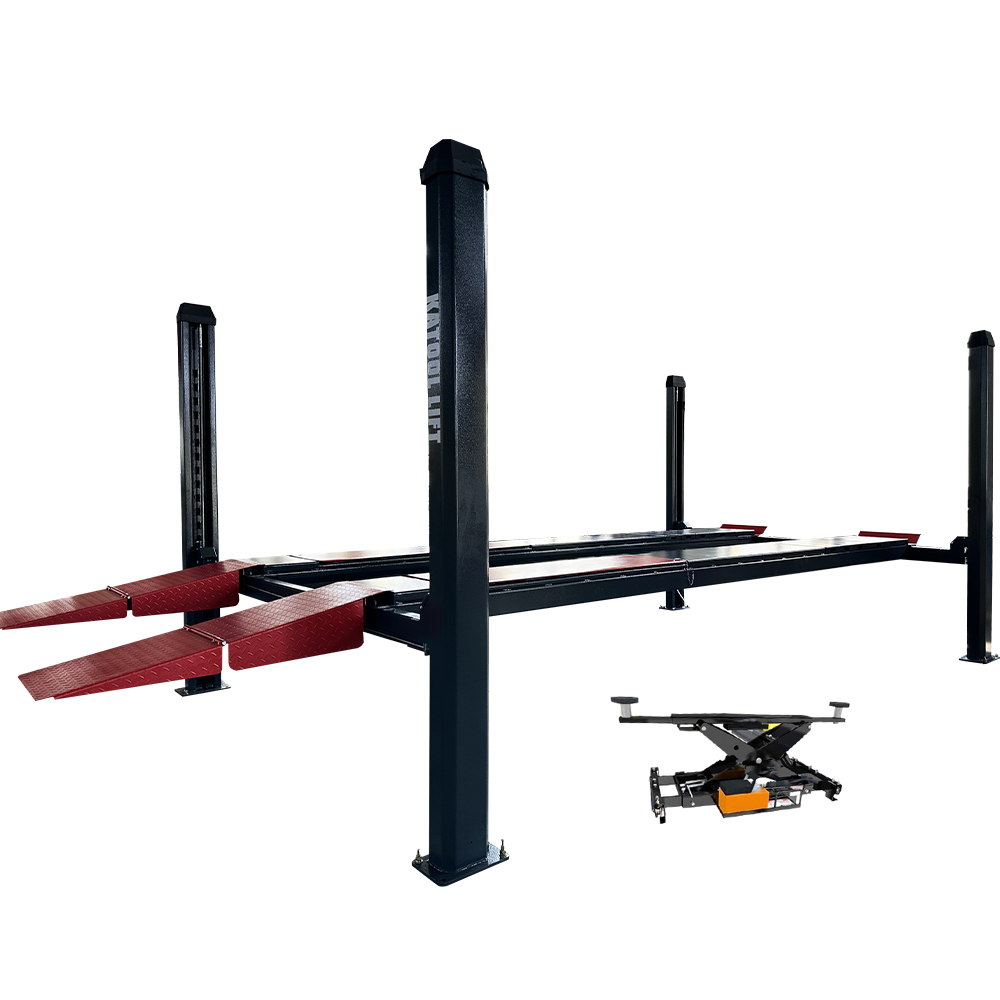

Heavy-gauge steel construction provides structural rigidity for daily commercial or residential use. A 12,000 lb rated capacity supports cars, trucks, and SUVs for service, storage, and alignment tasks. Maximum lift height of 86.9 in enables comprehensive undercarriage access for repairs and inspections. Fast hydraulic lifting achieves a typical rise in 83 seconds or less while lowering is controlled at 40 seconds or longer. Wide column spacing and a 112.81 in between-column clearance improve compatibility with wider vehicles. Machine footprint spans 135.2 in by 112.81 in with a 94.88 in unit height for planning garage layout. Hydraulic controls operate from a 220V power supply for consistent shop performance. Finished steel surfaces and precision welds simplify maintenance and contribute to long service life. With a listed net weight of 3,373 lb the unit mounts securely to concrete floors using standard anchoring practices. Designed for professional shops, fleet service, and advanced home garages where frequent vehicle servicing is performed.
Features
-
12,000 lb lifting capacity for cars, trucks, and SUVs
- 220 Volts for efficiency
-
86.9 in (2208 mm) max lifting height for comfortable undercar access
-
Fast lifting speed (≤ 83 seconds) for efficient workflow
-
Heavy-duty steel construction for long-term durability
-
Wide column spacing for improved vehicle compatibility
-
Designed for professional shops, fleet service, and home garages

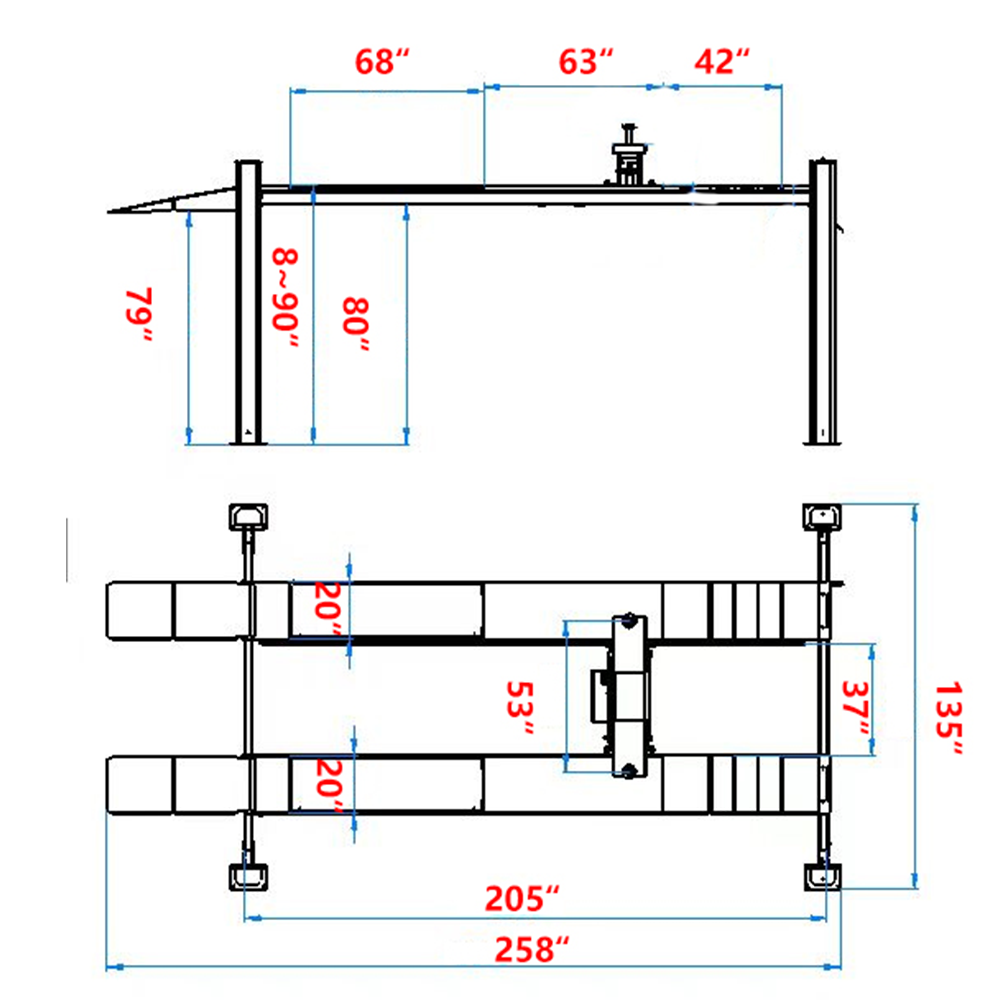

Specifications
| Model | KT-4H120X |
| Rated Load | 12,000 lbs |
| Lifting Height | 86.9 in (2208 mm) |
| Raising Time | ≤ 83 sec |
| Lowering Time | ≥ 40 sec |
| Net Weight | 3373 lbs (1530 kg) |
| Width Between Columns | 112.81 in (2865 mm) |
| Machine Width | 135.2 in (3435 mm) |
| Machine Height | 94.88 in (2410 mm) |
Warranty
The Katool KT-4H120X is backed by a 1-year limited warranty on all parts and product defects. Structural components for vehicle lifts include an additional 3-year warranty. Optional 2-year extended warranty plans are available for purchase.
Warranty Conditions:
- Claims must be within the warranty period and are non-transferable.
